Installing System Components | 199

Extender Tray” on page 168.

7 Replace the interposer extender. See “Removing the Interposer

Extender” on page 166.

8 Install the system-board assembly. See “Installing a System-Board

Assembly” on page 158.

Riser card

Optional Riser Cards

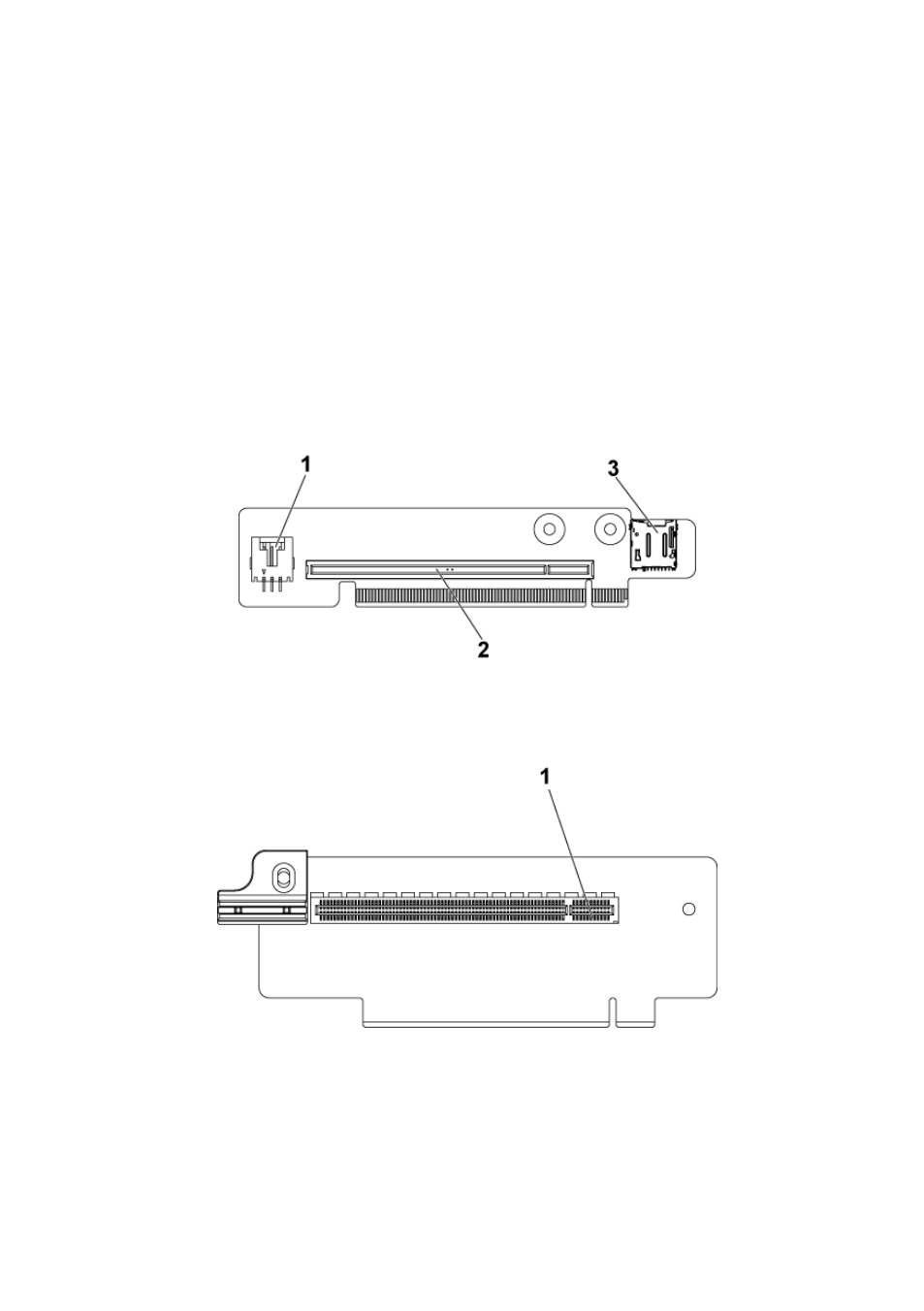

Figure 3-33. 1U Riser card for 1U Node

1

USB connector

2

PCI-E Gen 3 x16

3

micro SD card socket

Figure 3-34. 1.5U Riser card for 2U Node

1

PCI-E Gen 3 x16
