196 | Installing System Components

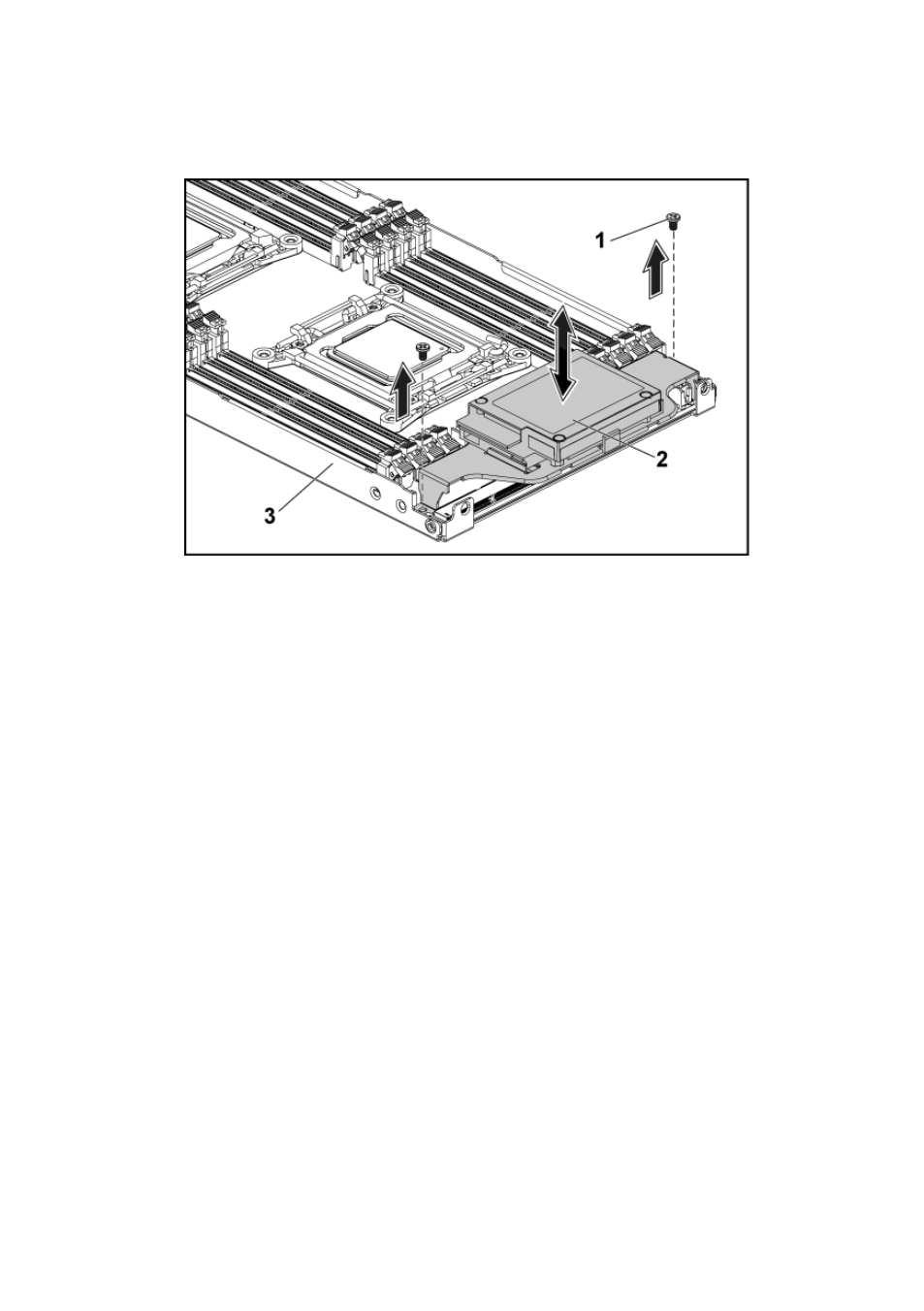

Figure 3-31. Removing and Installing the LSI 9265-8i RAID Battery Assembly
1 screws (2) 2 LSI 9265-8i RAID battery assembly
3 system-board assembly
Installing the LSI 9265-8i raid Battery Assembly
1 Attach the LSI9265-8i RAID battery assembly onto the system board.
See Figure 3-31.
2 Replace the screws securing the LSI9265-8i RAID battery assembly.
See Figure 3-31.
3 Connect the cable connecting to the LSI 9265-8i card.
4 When replacing the LSI9265-8i RAID battery assembly for 1U node,
skip to step 7; for 2U node, continue the steps.
5 Replace the interposer-extender tray. See “Removing the Interposer
Extender Tray” on page 168.
6 Replace the interposer extender for 2U node. See “Removing the
Interposer Extender for 2U Node” on page 166
7 Install the system-board assembly. See “Installing a System-Board
Assembly” on page 158.
