Installing System Components | 167
3 Remove the screws that secure the interposer extender to the
interposer-extender tray. See Figure 3-13.
4 Lift the interposer extender out of the interposer-extender tray. See
Figure 3-13.

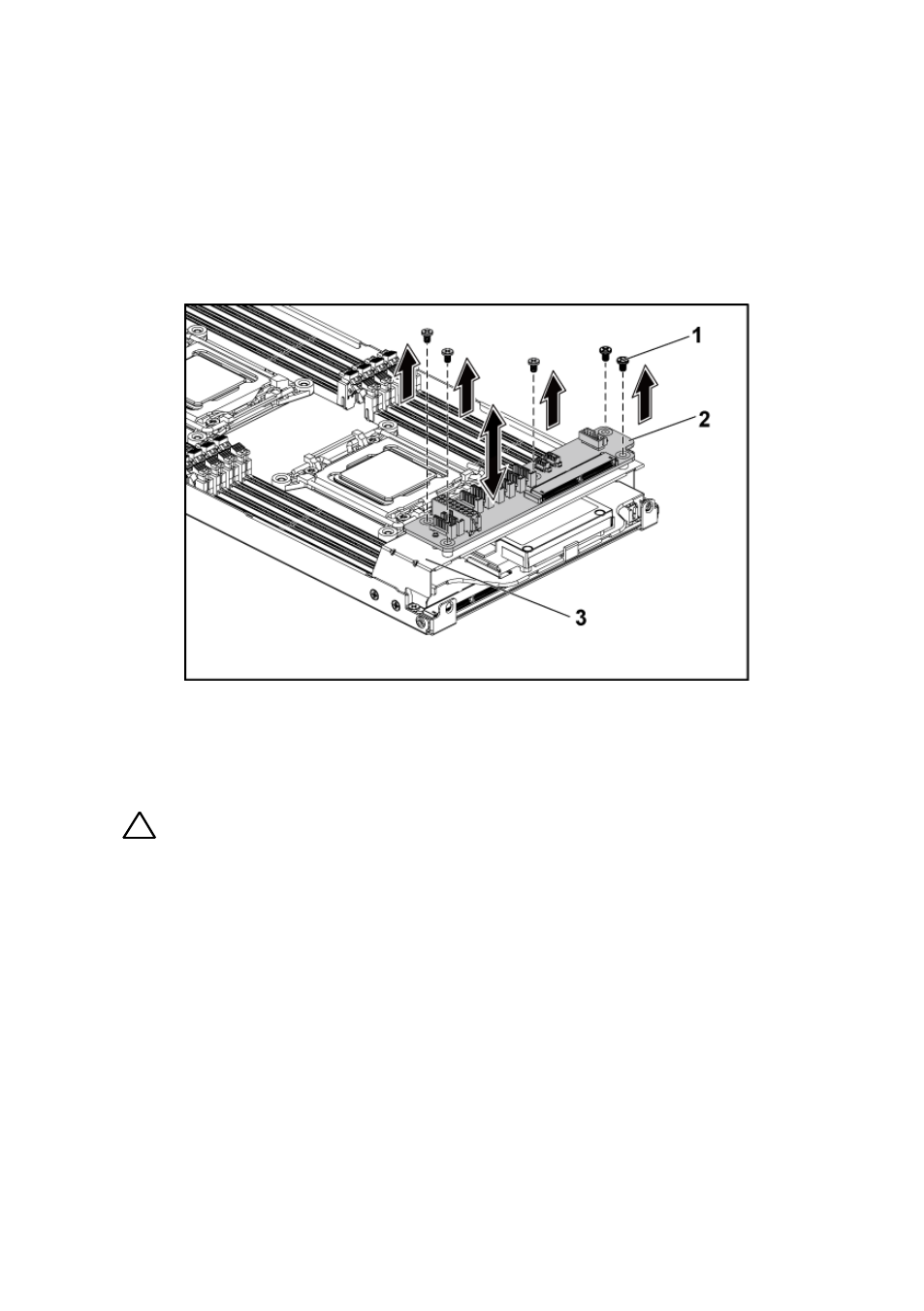

Figure 3-13. Removing and Installing the Interposer Extender for 2U Node
1 screw (5) 2 interposer extender
3 interposer-extender tray
Installing the Interposer Extender for 2U Node
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Place the interposer extender into the interposer-extender tray.
2 Replace the screws that secure the interposer extender to the
interposer-extender tray.
3 Reconnect all the cables to the interposer extender. See Figure 5-10.
4 Replace the system-board assembly. See "Installing a System-Board
