Installing System Components | 243
14 Remove the screws securing the power distribution board 2 to the
system. See Figure 3-65.
15 Lift the power distribution board 2 out of the system. See Figure 3-65.
NOTE: To remove the power distribution board 2 that is below the first
power distribution board, remove the power distribution board connector
and angle the board before lifting.

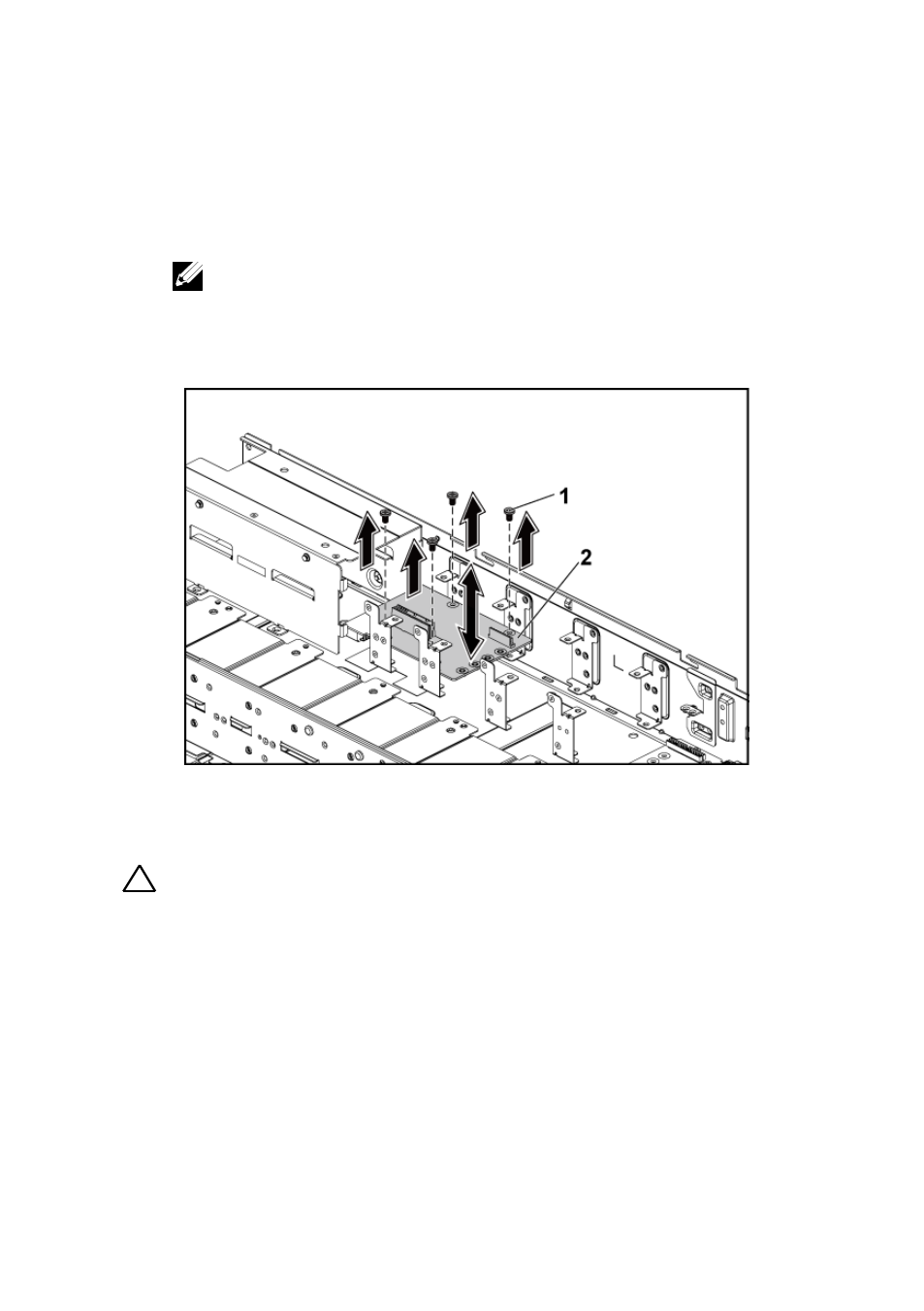

Figure 3-65. Removing and Installing a Power Distribution Board 2
1 screw (4) 2 2 nd power distribution board
Installing a Power Distribution Board
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
