Dell PowerEdge C6220 User Manual
Page 251
Installing System Components | 251
10 Remove the four screws that secure the power cables to the upper
middle plane. See Figure 3-70.

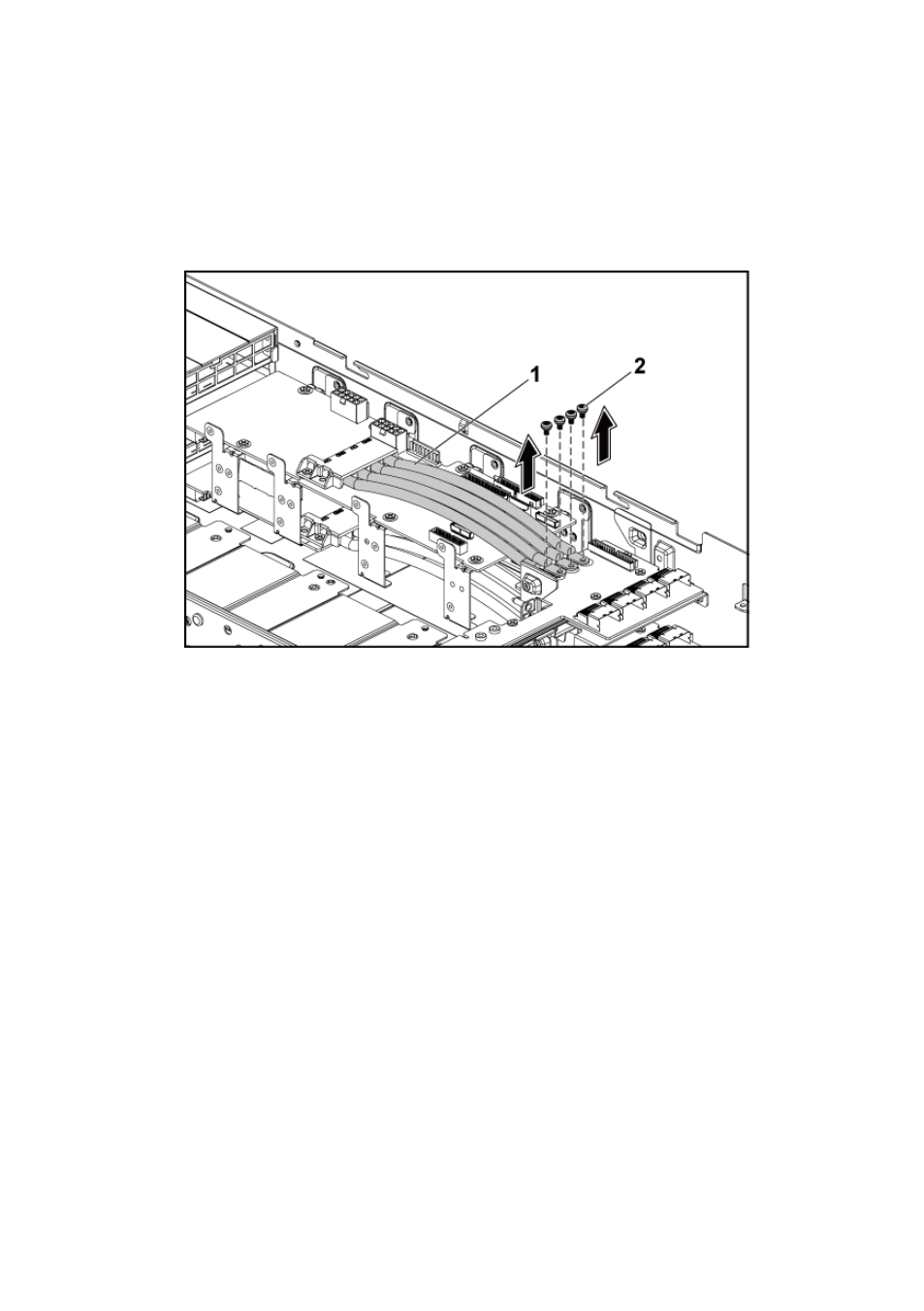

Figure 3-70. Removing and Installing the Power Cables
1
power cables (4)
2
screw (4)
