Dell PowerEdge C6220 User Manual
Page 289
Installing System Components | 289
8 Remove the screw that secures the sensor board assembly to the hard
drive cage. See Figure 3-97.
9 Remove the sensor board assembly from the hard drive cage. See

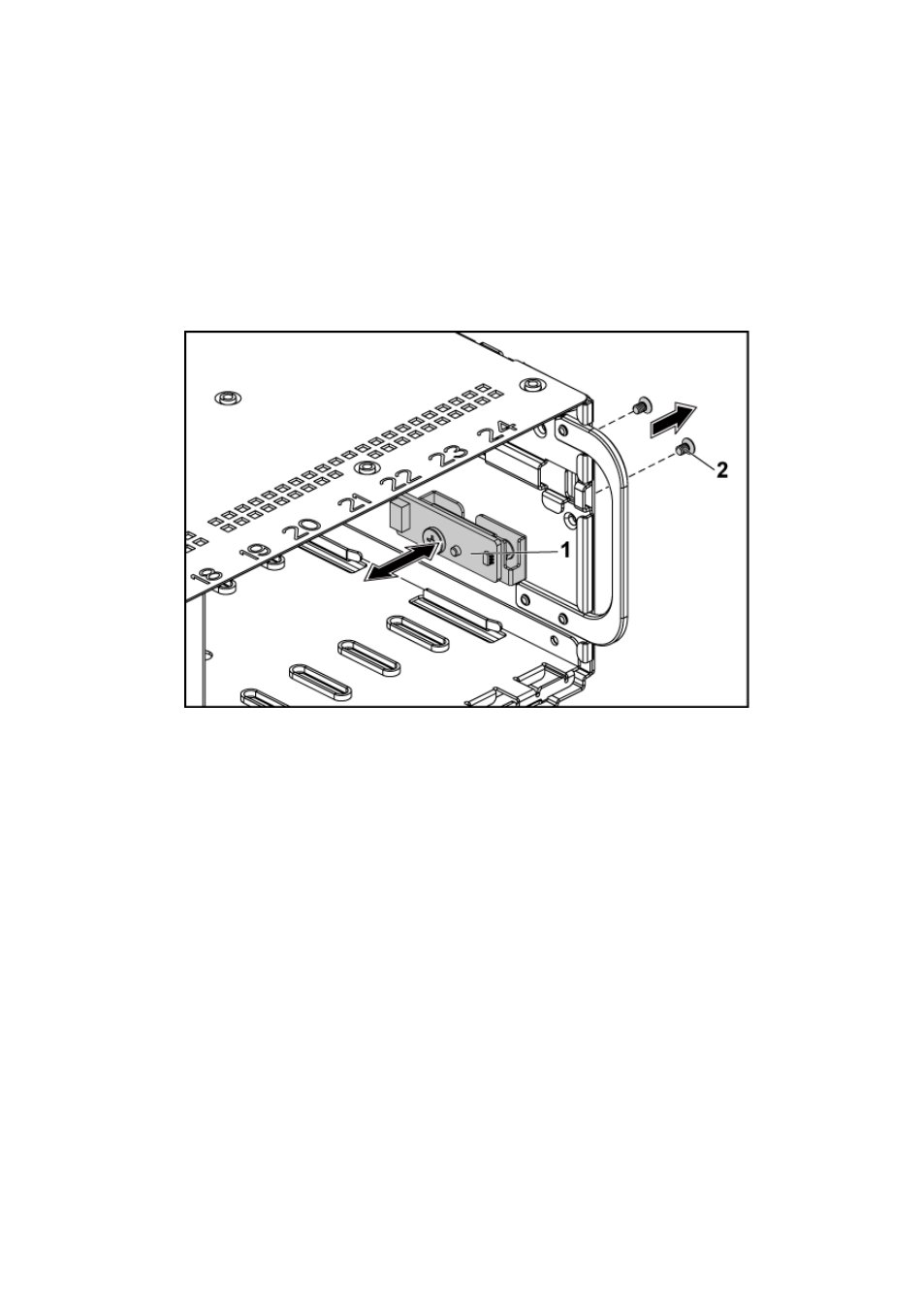

Figure 3-97. Removing and Installing the Sensor Board Assembly
1
sensor board assembly
2
screw (2)
