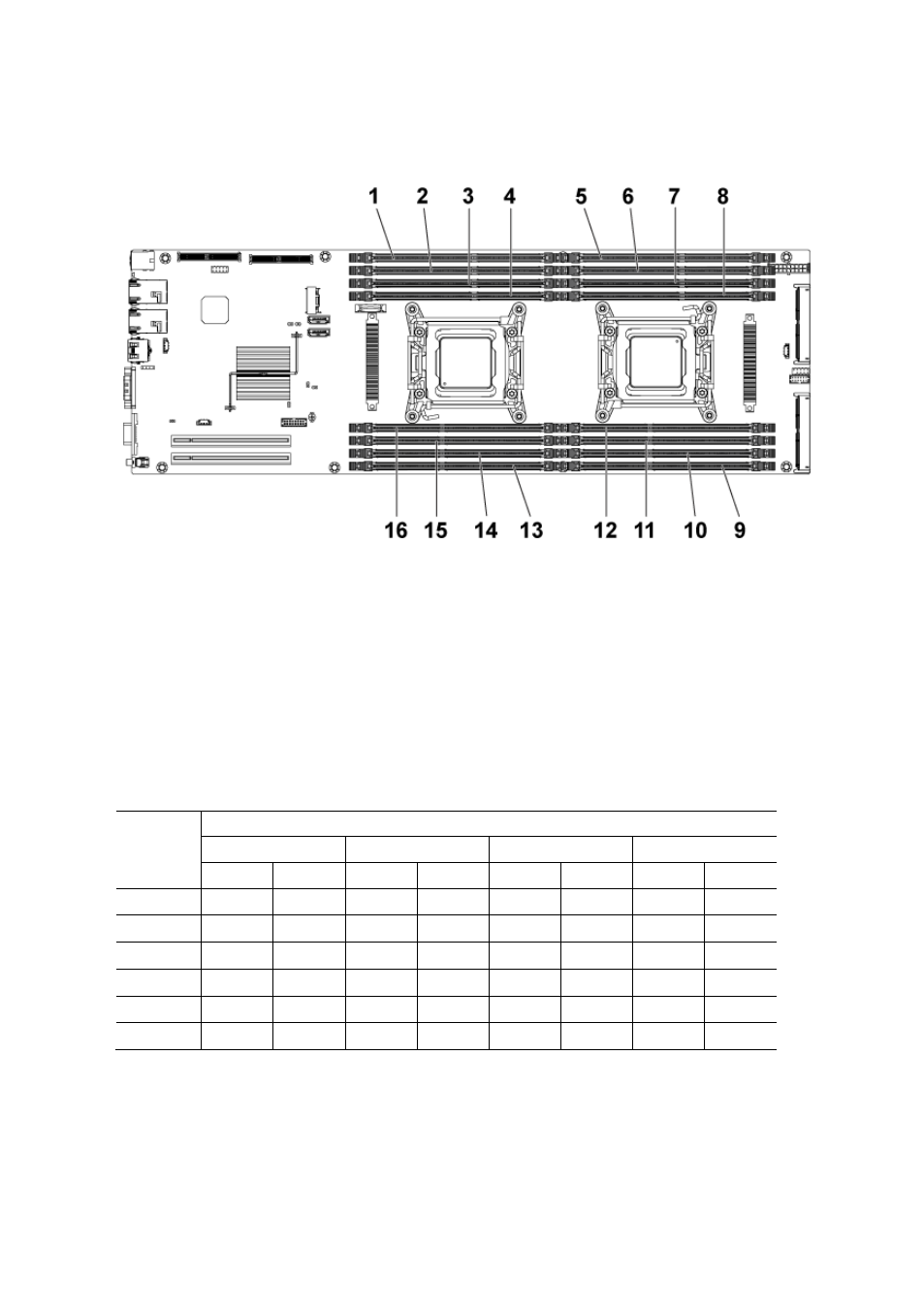

Figure 3-53. DIMM Slot Locations
1 DIMM_A3 2 DIMM_A7
3 DIMM_A4 4 DIMM_A8
5 DIMM_B1 6 DIMM_B5
7 DIMM_B2 8 DIMM_B6
9 DIMM_B3 10 DIMM_B7
11 DIMM_B4 12 DIMM_B8
13 DIMM_A1 14 DIMM_A5
15 DIMM_A2 16 DIMM_A6
Table 3-2. Memory Module Configurations for Single Processor
Memory
Module
Processor 1
CHA CHB CHC CHD
A1 A5 A2 A6 A3 A7 A4 A8
1 √ − − − − − − −
2 √ − √ − − − − −
3 √ − √ − √ − − −
4 √ − √ − √ − √ −
6 √ √ √ √ √ − √ −
8 √ √ √ √ √ √ √ √
