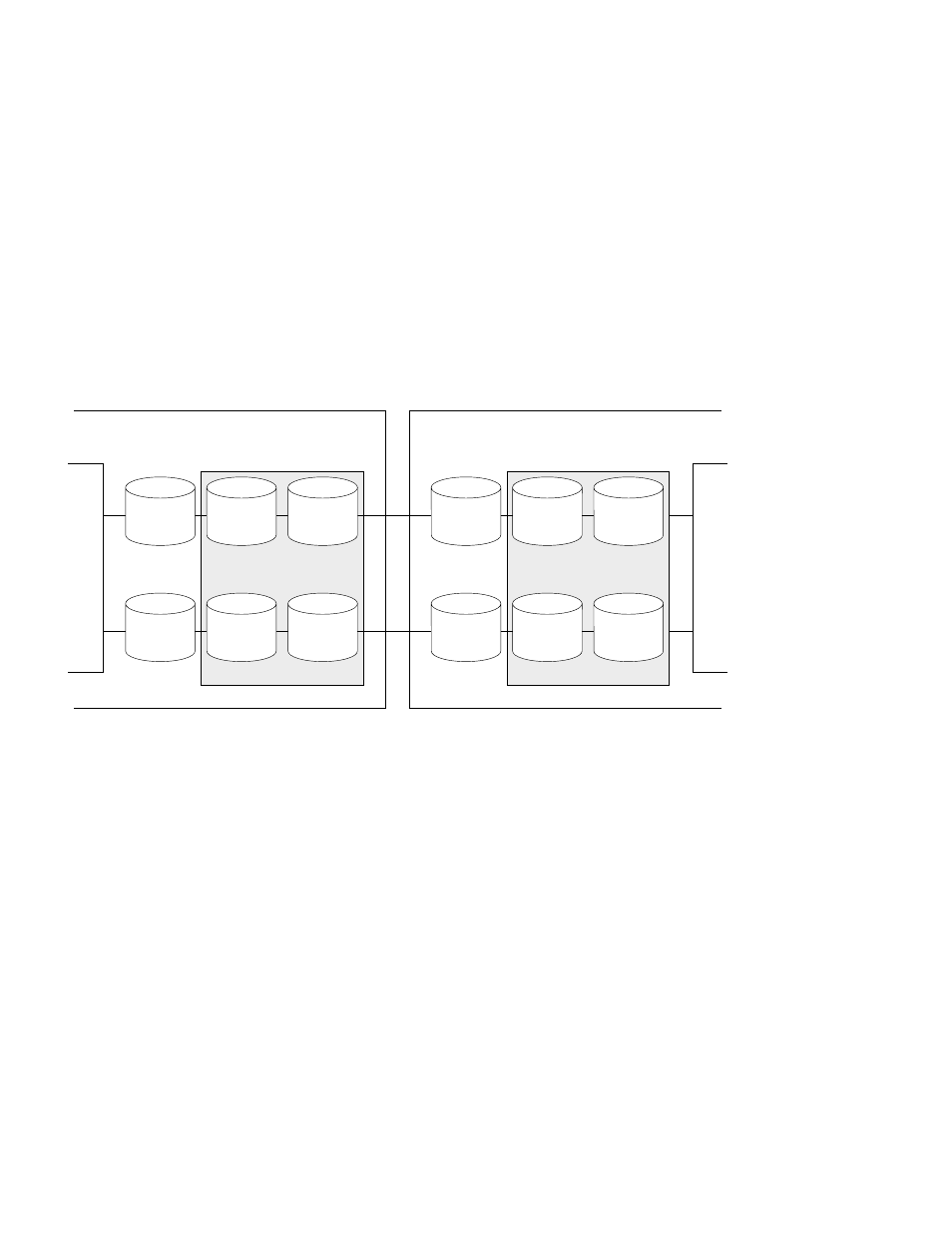

Figure 16 shows an array that has its primary disk drives (pdisk2, pdisk3, pdisk10 and
pdisk11) in building 1, and its secondary disk drives (pdisk5, pdisk6, pdisk7 and pdisk8)
in building 2. Pdisk1 and pdisk4 have been assigned as hot spare disk drives, but no
hot spare pool has been defined.
Primary Disks
Building 1 Building 2
pdisk1
(Spare)
pdisk3 pdisk2
pdisk10 pdisk11
A
D
A
P
T
E
R A
D
A
P
T
E
R
pdisk12
pdisk4
(Spare)
pdisk6 pdisk5
pdisk7 pdisk8 pdisk9
Secondary Disks
Figure 16. Primary Disks in Building 1; Secondary Disks in Building 2
46 User’s Guide and Maintenance Information
