This screen shows the same configuration, but here the link is broken between
pdisk1 and pdisk2.

LINK SPEED

802438

SSA Link Speed for:

systemname:ssa0

00-03

IBM SSA 160 SerialRAID Adapter (

To set or reset Identify, move cursor onto selection, then press .

Source

Speed

Destination

systemname:ssa0:A1

40

systemname:pdisk3

systemname:pdisk3

40

systemname:pdisk2

systemname:pdisk2

00

?????

?????

00

systemname:pdisk1

systemname:pdisk1

40

systemname:pdisk0

systemname:pdisk0

40

systemname:ssa0:A2

systemname:ssa0:B1

40

systemname:pdisk5

systemname:pdisk5

40

systemname:pdisk4

systemname:pdisk4

40

systemname:ssa0:B2

F3=Cancel

F10=Exit

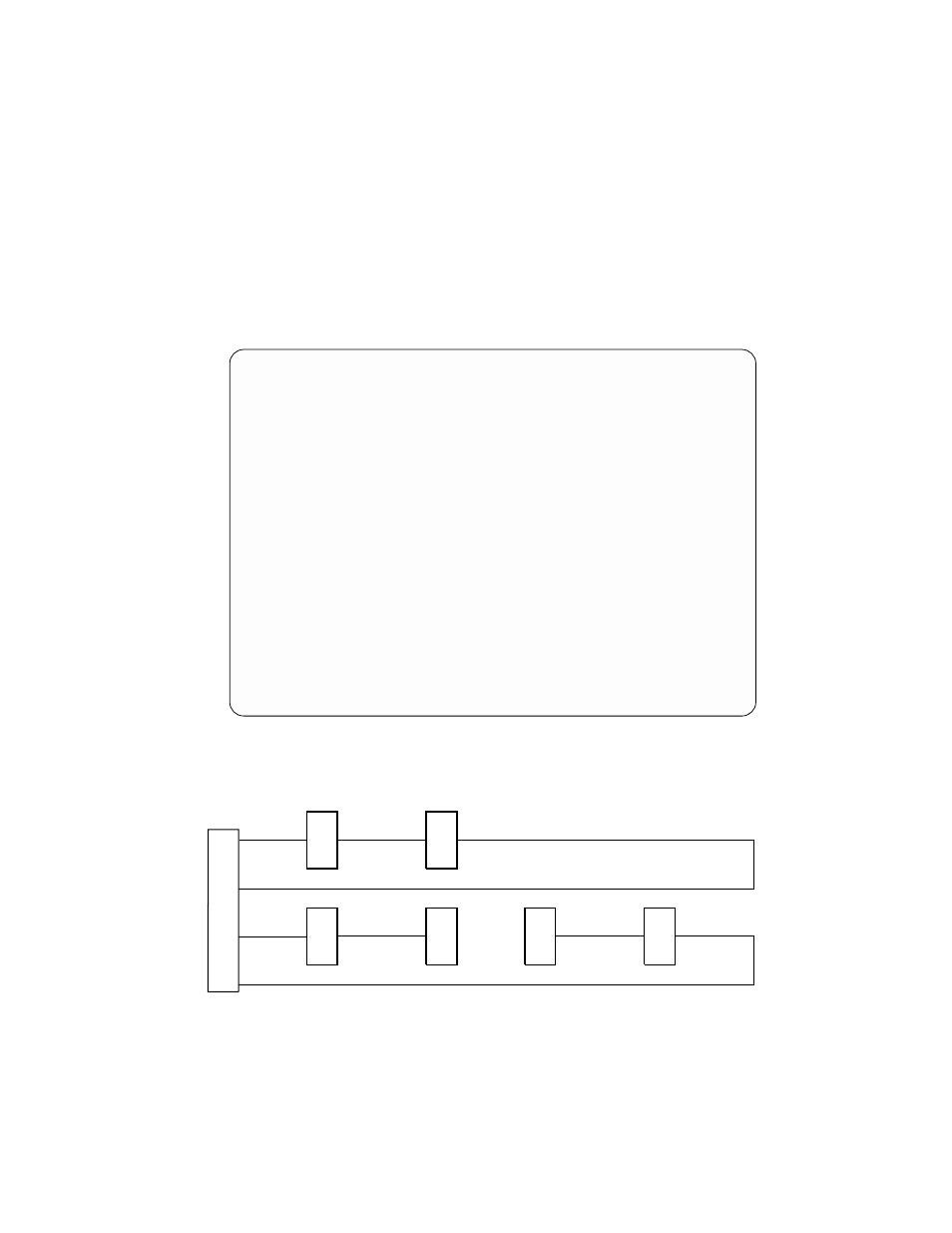

Figure 55 gives a physical representation of the configuration that is shown on the
screen.

B2

B1

A2

A1

Disk

4

Disk

5

Disk

0

Disk

1

Disk

2

Disk

3

40 MB/s

40 MB/s

40 MB/s

40 MB/s

40 MB/s

40 MB/s

40 MB/s

Figure 55. Configuration with Broken Link Shown by the Service Aid

Chapter 17. SSA Service Aids

399
