4. Refer to Figure 45.

5. Carefully insert the SDRAM module into the connector.

6. Press strongly on the module until it is fully home.

7. Close the clips

1

by pivoting them in the directions shown by the arrows in the

diagram. You hear a click when the clips are fully closed. If you cannot close the
clips, the module is not fully home. Press the module fully home, then close the
clips.

8. Reinstall the adapter into the using system (see the Installation and Service Guide

for the using system).

1

1

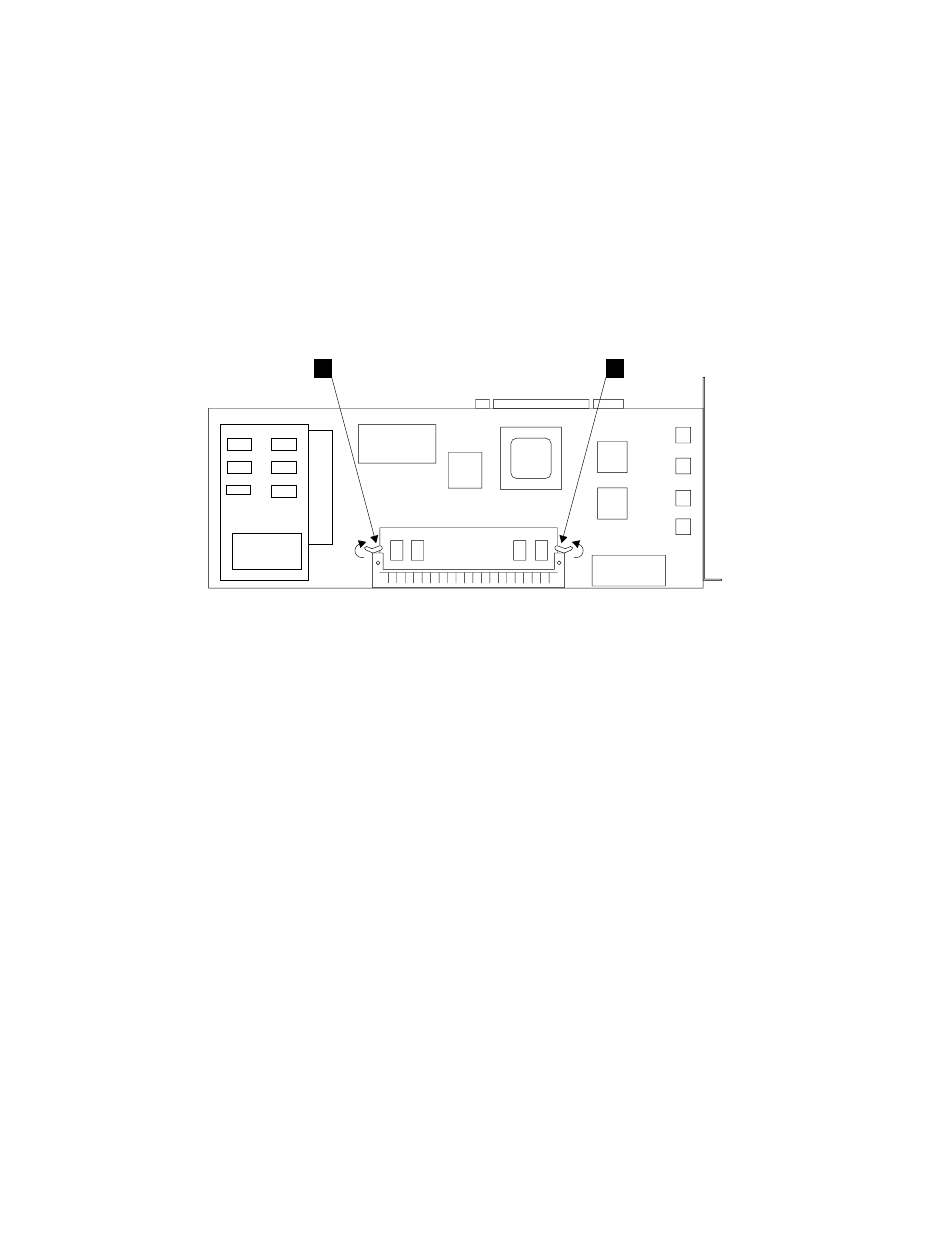

Figure 45. Installing the SDRAM Module
