The Source field represents the link end that is closest to the A1 or B1 port.
The Destination field represents the link end that is closest to the A2 or B2 port.
Note: The Source and Destination fields have no other meaning. They do not
indicate data flow.
The Speed field indicates the operating speed of the link as follows:
00 The link is not operational
20 20 MB per second
40 40 MB per second

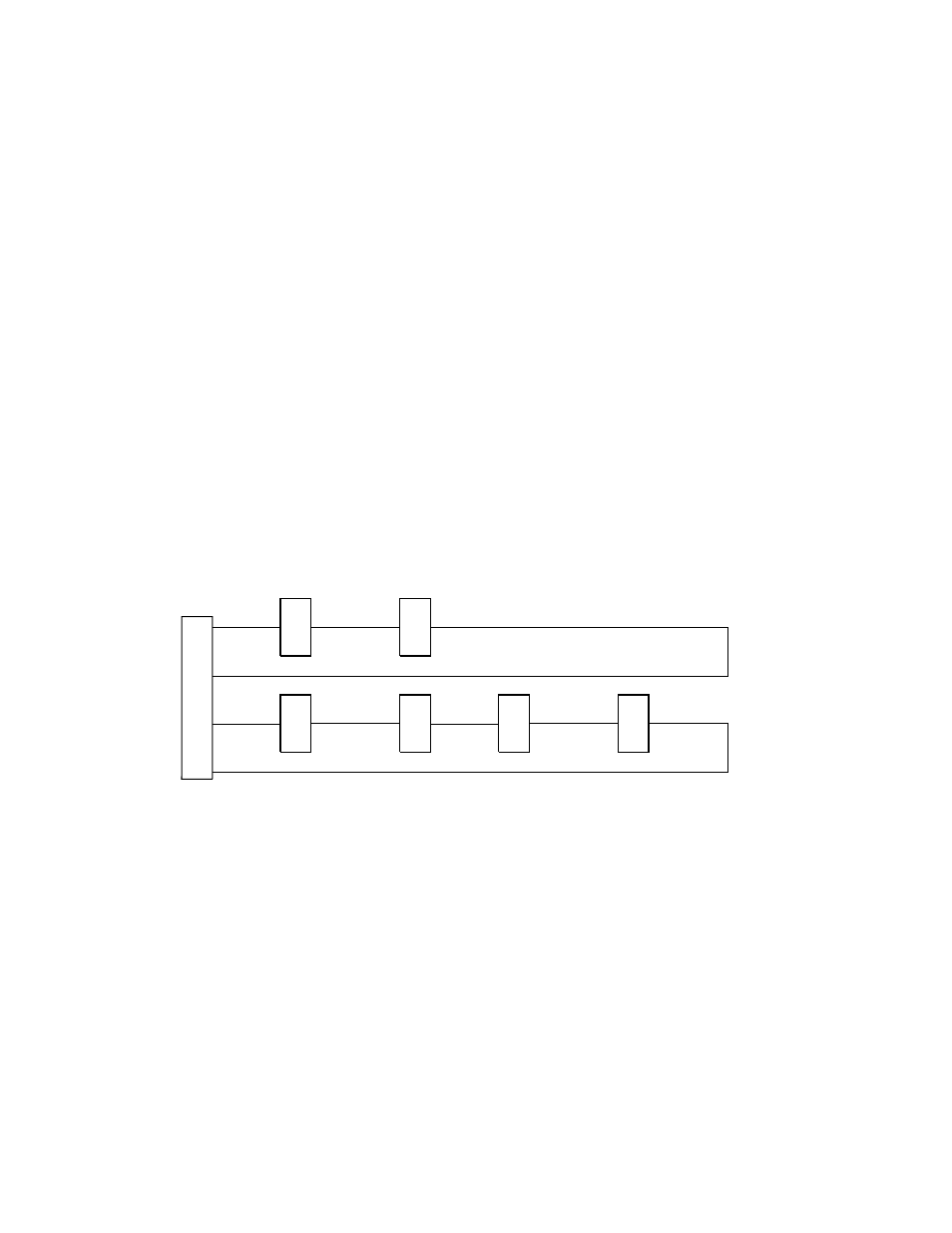

Figure 54 gives a physical representation of the configuration that is shown on the
screen.
B2
B1
A2
A1
Disk
4
Disk
5
Disk
0
Disk
1
Disk
2
Disk
3
40 MB/s
40 MB/s
40 MB/s
40 MB/s 20 MB/s 40 MB/s 40 MB/s
40 MB/s
Figure 54. Configuration Shown by the Service Aid
