Removing an SDRAM Module of an Advanced SerialRAID Adapter

Attention:

The adapter assembly contains parts that are electrostatic-discharge

(ESD) sensitive. Use the tools and procedures defined by your organization to protect
such parts.

1. Remove the adapter from the using system (see the Installation and Service Guide

for the using system).

2. Refer to Figure 43.

3. Holding your thumbs against the connector

3

, open the clips

1

by pressing them

in the directions shown by the arrows in the diagram. This action pulls the SDRAM
module

2

out of the connector.

4. Remove the SDRAM module.

1

1

2

3

3

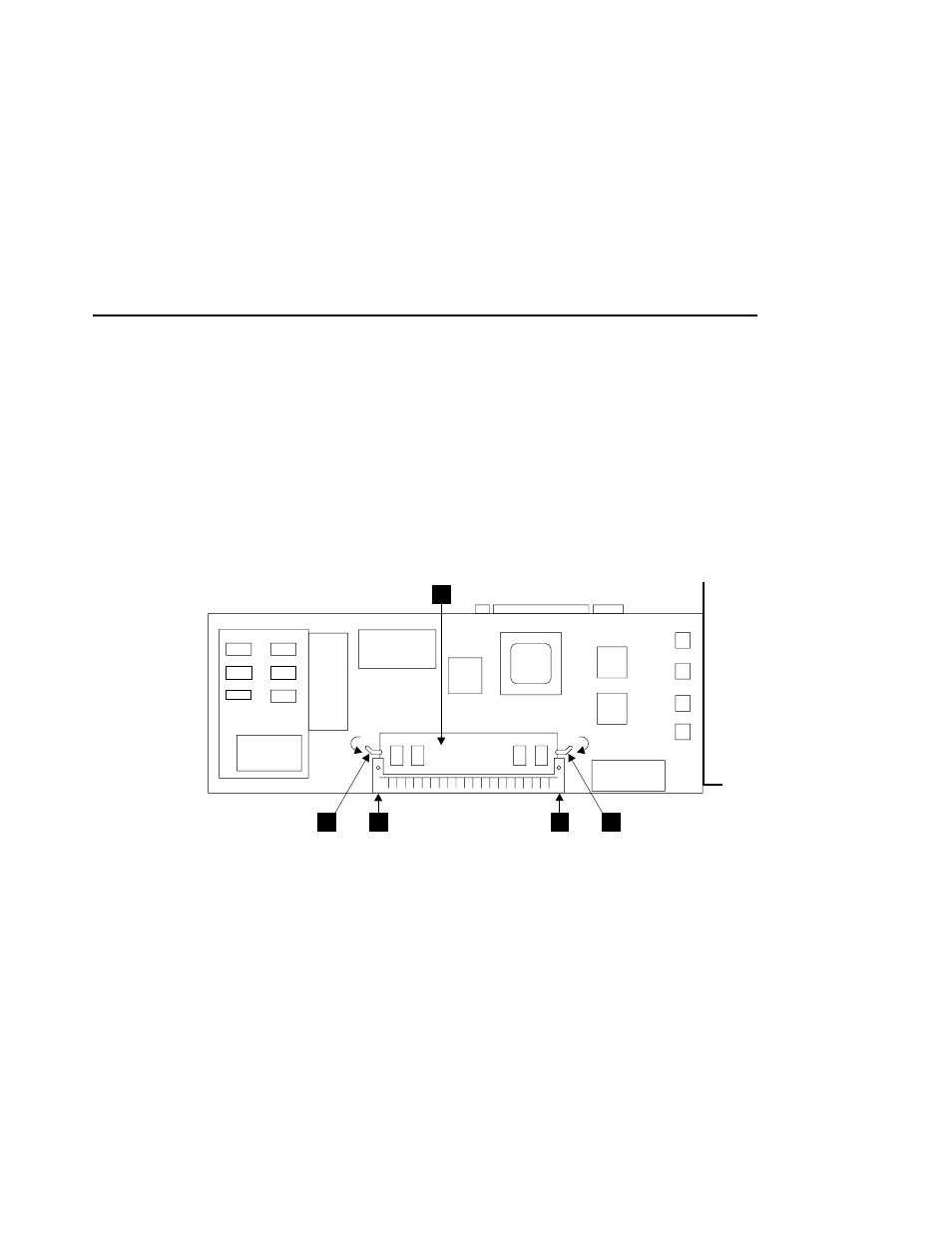

Figure 43. Removing the SDRAM Module

Chapter 15. Removal and Replacement Procedures

329
