Installing a Battery Assembly into the Fast-Write Cache Option Card of an
Advanced SerialRAID Adapter
Attention:
v The adapter assembly contains parts that are electrostatic-discharge (ESD) sensitive.
Use the tools and procedures defined by your organization to protect such parts.
v The Fast-Write Cache Option card might contain customer data.
1. Refer to Figure 52.
2. Hold the Fast-Write Cache Option card so that the battery-assembly connector
1
is upward.
3. Connect the battery assembly to the connector
1
.
1

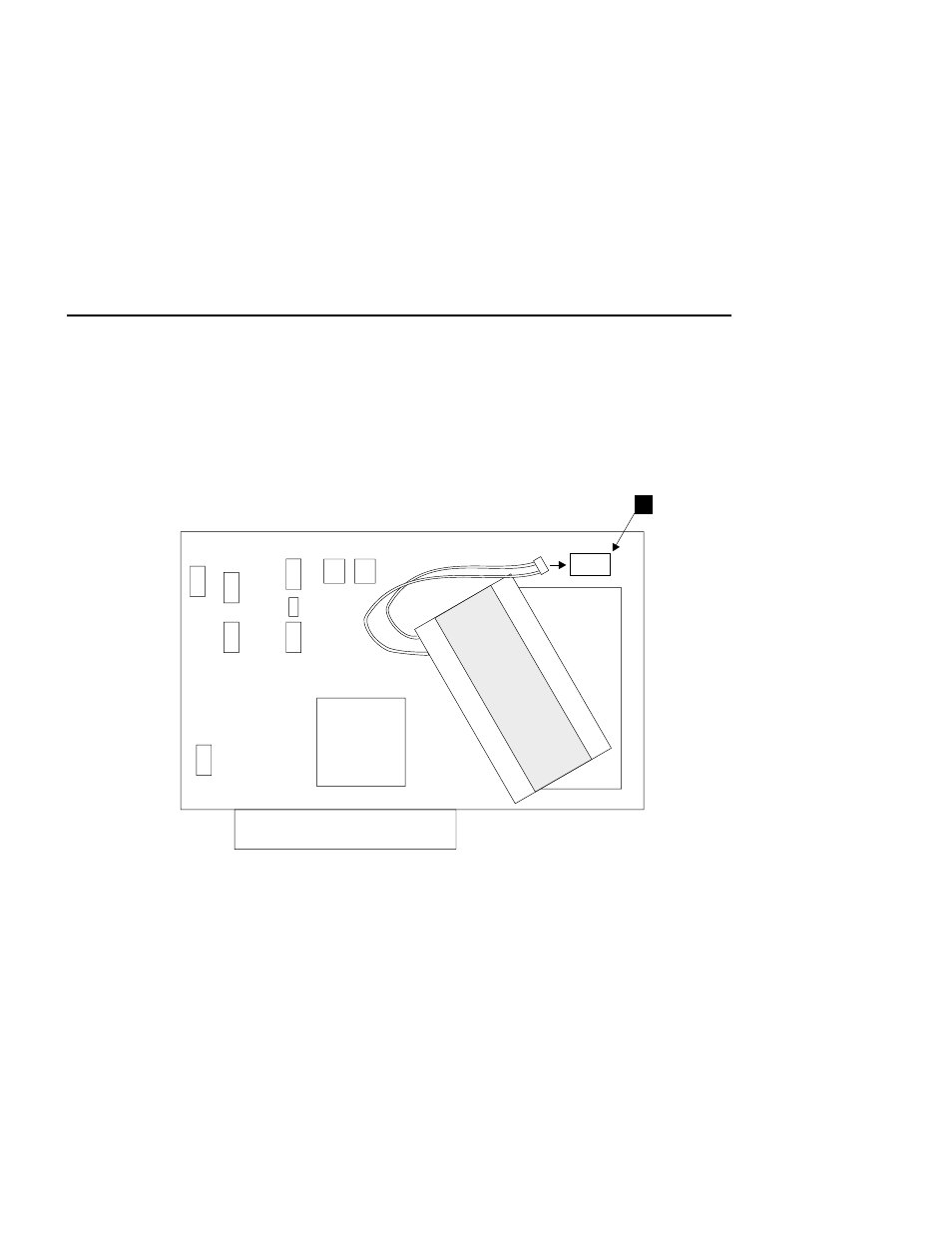

Figure 52. Connecting the Battery Assembly
