Program Input Mode

Cycle Input Power

9. If a Control Interface option is installed, it

is important that the Input Mode recorded
in Chapter 2 be programmed into the drive.
Since the control inputs to this option are
programmable, incorrect operation can
occur if an improper mode is selected. The
factory default input mode disables all
inputs except Stop and Enable. Verify your
control scheme against the information
provided in Chapter 2 and program the
[Input Mode] parameter as follows:

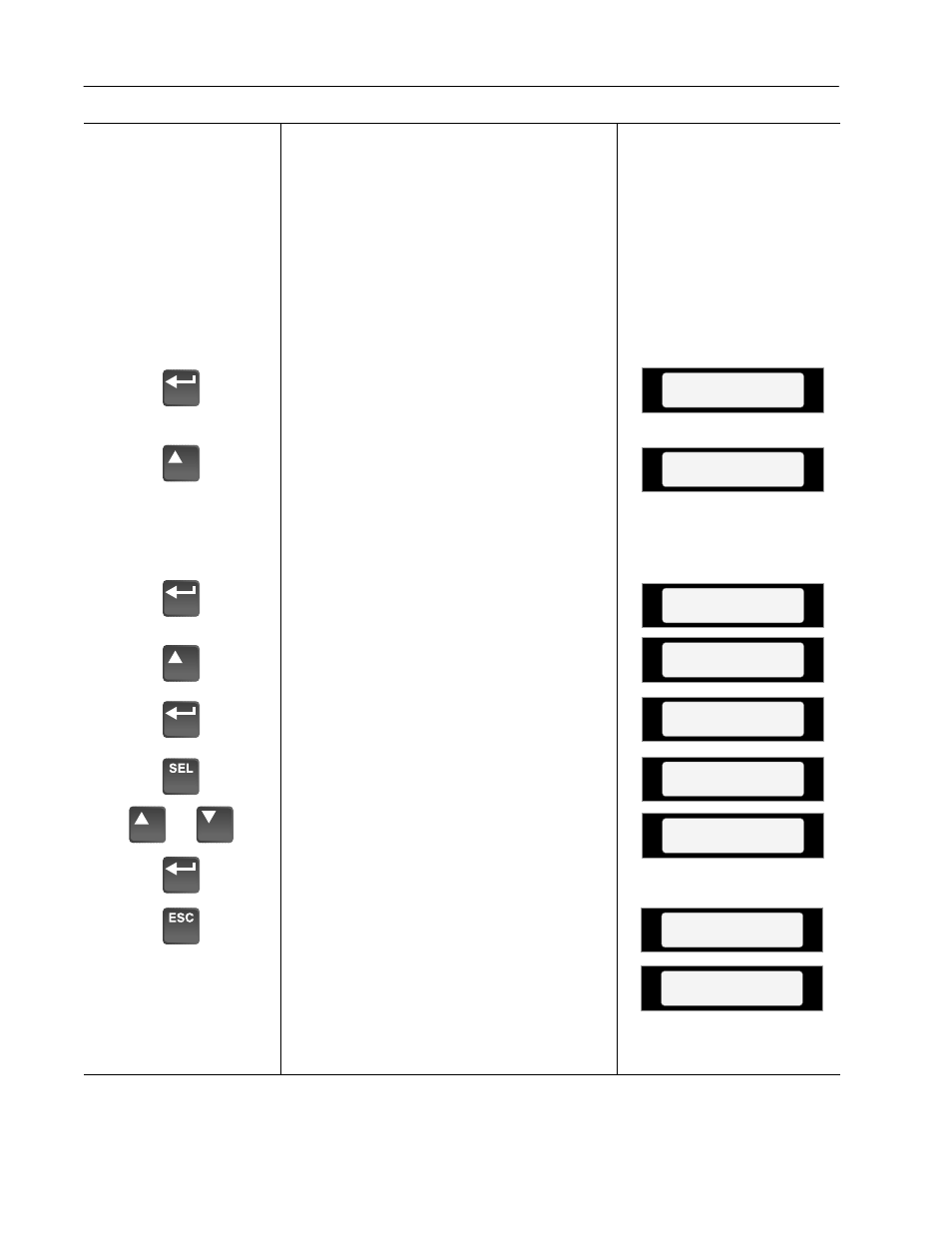

A. From the Status Display, press the

Enter key (or any key). “Choose
Mode” will be displayed.

B. Press the Increment (or Decrement)

key until “Program” is displayed. If
Program is not available, programming
is password protected. Refer to
Chapter 3 for Password mode
information.

C. Press Enter.

D. Press the Increment key until “Setup”

is displayed.

E. Press Enter.

F. Press SELect. The first character of

line 2 will now flash.

G. Press the Increment or Decrement keys

until the correct mode is displayed,
then press Enter. The first character of
line 1 will now flash.

H. Press the ESCape key (3 times) to

return to the Status Display.

I. Remove power to the drive. When the

HIM Display is no longer illuminated,
reapply power.

Important: Display must go blank for
programming change to take affect.

Choose Mode
EEProm

Stopped

+0.00 Hz

Choose Mode
Program

Metering

Setup

Input Mode
1

Input Mode
2
