3–11 Human Interface Module

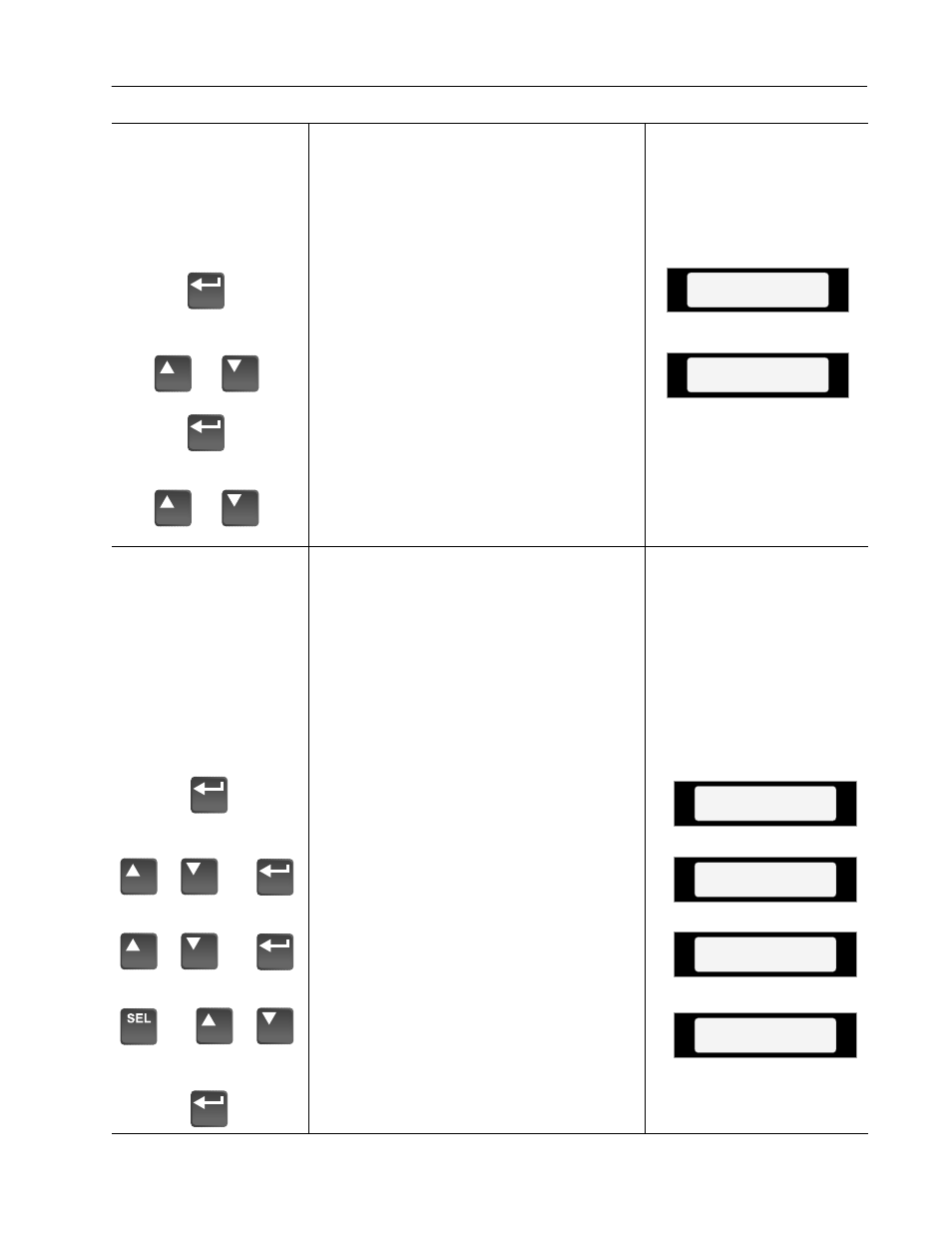

Search Mode
or
or
1. The Search Mode is only available with a
Series A (version 3.0) or Series B HIM.
This mode allows you to search through
the parameter list and display all parame-
ters that are not at the factory default
values.
A. From the Status Display, press Enter
(or any key). “Choose Mode” will be
shown.
B. Press the Increment (or Decrement)
key until “Search” is displayed.
C. Press Enter. The HIM will search
through all parameters and display any
parameters that are not at their factory
default values.
D. Press the Increment (or Decrement)
key to scroll through the list.
Choose Mode
Search
Choose Mode
Display
or
or
Control Status Mode
or
1. The Control Status mode is only available
with a Series A (version 3.0) or Series B
HIM.
This mode allows the drive logic mask to
be disabled, thus preventing a Serial Fault
when the HIM is removed with drive
power applied. The logic mask can be
disabled with Series A HIM versions
below 3.0 by using [Logic Mask] as
explained on page 3–15.
A. From the Status Display, press Enter
(or any key). “Choose Mode” will be
shown.
B. Press the Increment (or Decrement)
key until “Control Status” is displayed.
Press Enter.
C. Select “Control Logic” using the
Increment/Decrement keys. Press
Enter.
D. Press the SELect key, then use the
Increment (or Decrement) key to select
“Disabled” (or “Enable”).
E. Press Enter. The logic mask is now
disabled (or enabled).
Choose Mode
Control Status
Choose Mode
Display
Control Logic
Disabled
Control Status
Control Logic
