‎Chapter 8 Configuring Recorders Configuring the Event Recorder
82 PM180 Substation Automation Unit
No. File Type Size,
Bytes Sections/
Channel Max. of
Records Max. of
Events Description
10 Data log #9 Wrap
around
474240 12 260 260 Configured for
EN50160
compliance
statistics
11 Data log
#10 Wrap
around 174720 3 260 260 Configured for
EN50160
harmonics survey
14 Data log
#13 (fault
data trend) Wrap
around 560000 10000 10000 Used by the Fault
recorder
15 Data log
#14
(PQ data
trend)
Wrap
around 520000 10000 10000 Used by the PQ
recorder
24 Waveform
log #7 Wrap
around 42880000 10 4000 1000 Used by the PQ and
Fault recorders
25 Waveform
log #8 Wrap
around 17152000 8 2000 500 Used by the PQ
recorder
26 SOE log Wrap
around 160000 10000 10000
27 PQ log Wrap
around 640000 20000 20000
28 Fault log Wrap
around 440000 10000 10000
Configuring the Event Recorder

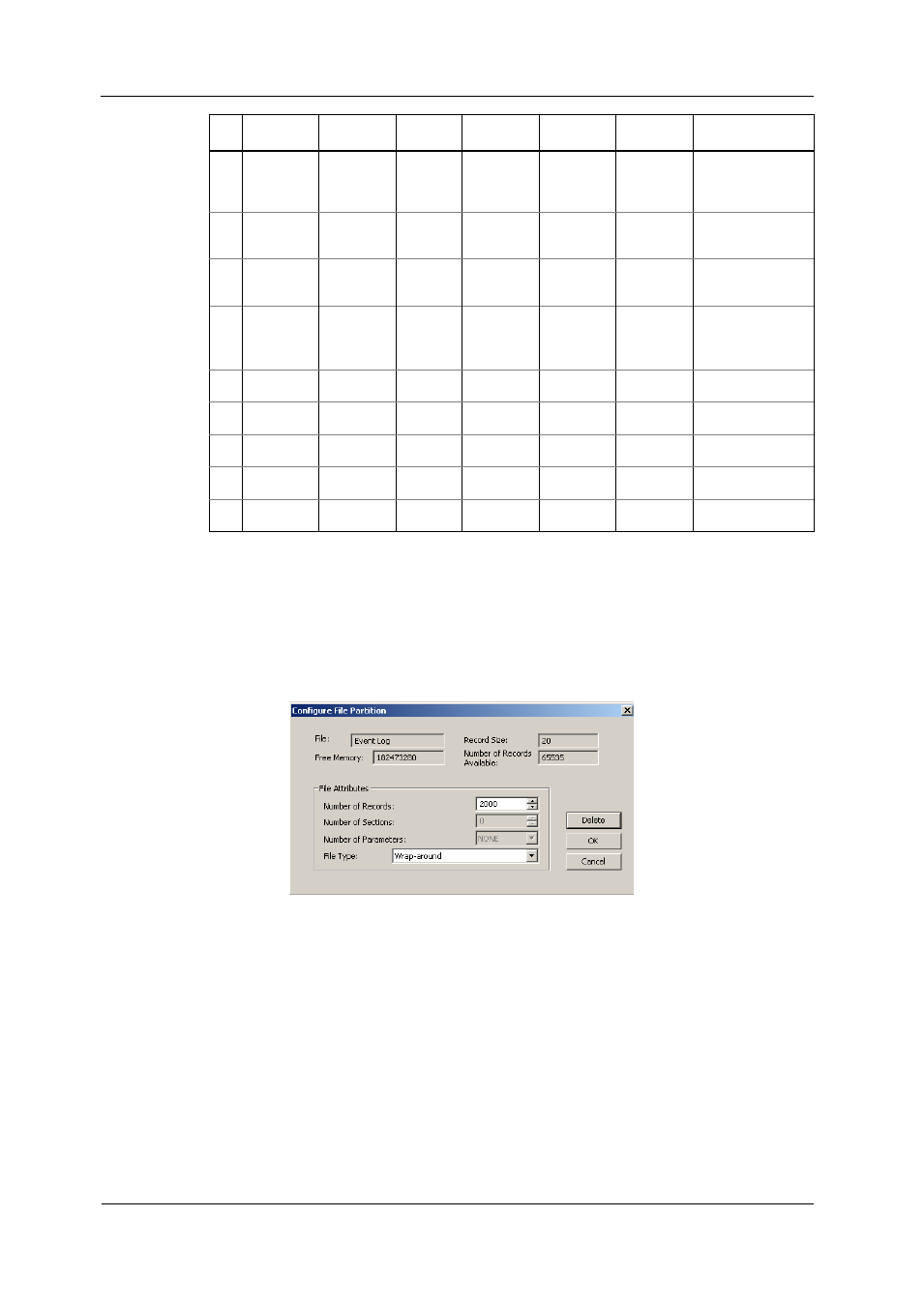

To change the Event log file size:
1. Select Memory/Log from the Meter Setup menu, and then click on
the Log Memory tab.
2. Double click on the Event log file partition with the left mouse
button.
3. Select a file type.
4. Select the maximum number of records you want to be recorded in
the file.
5. Click OK, and then send your new setup to the device or save to
the device database.
By default, the Event recorder stores all events related to configuration changes,
reset, and device diagnostics. In addition, it records events related to setpoint
operations. Each setpoint should be individually enabled for recording to the Event
log.
To log setpoint operations, add the “Event log” action to the setpoint actions list. Put
the event log action at the beginning of the list to allow other recorders to use the
sequence number assigned to the event for cross-linking between records logged to
different files. When a setpoint event happens, the Event recorder logs all setpoint
