Chapter 14 Viewing Log Files
Viewing Waveforms
142
PM180 Substation Automation Unit

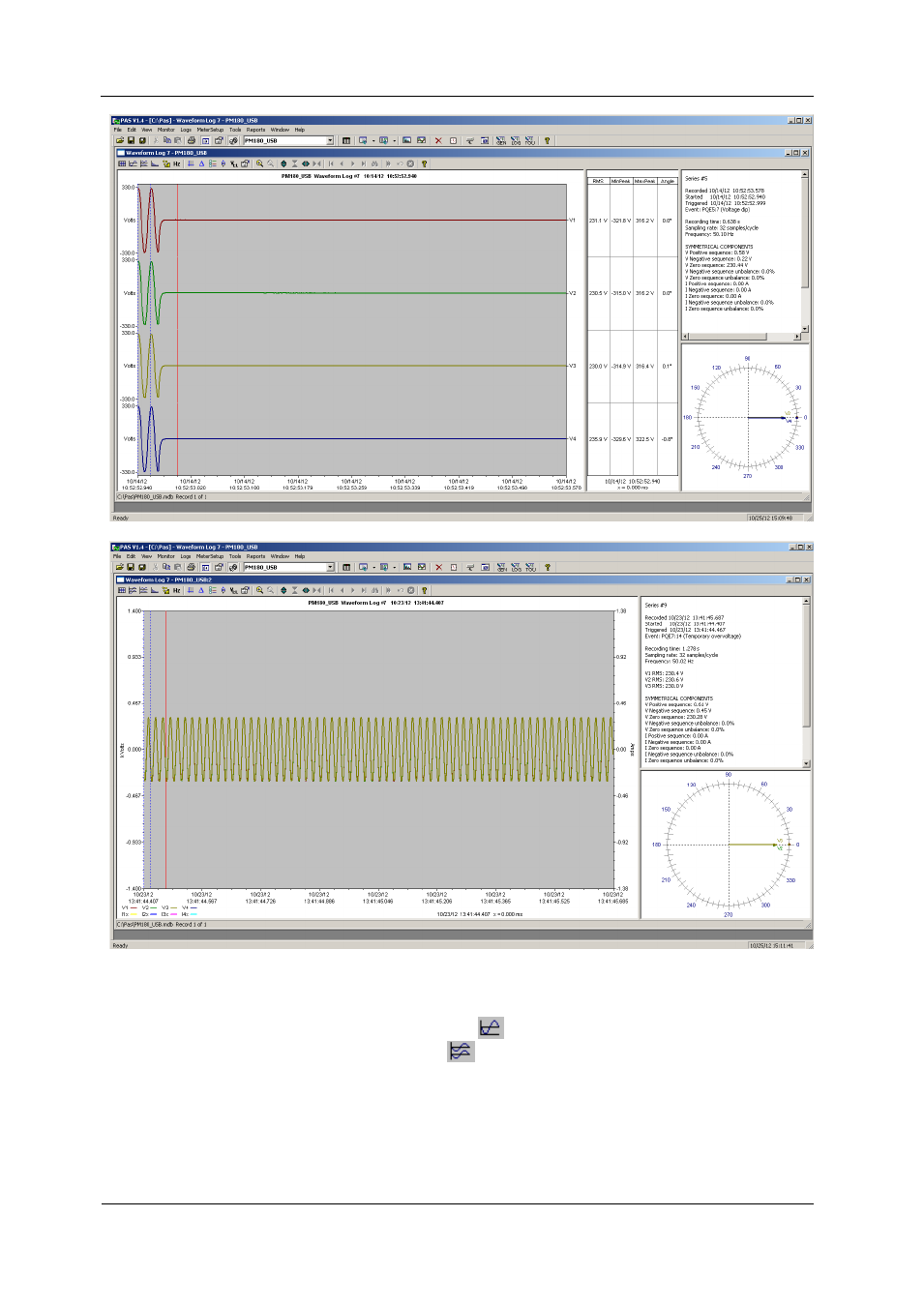

You can open all five views together to analyze different properties of the waveform
like a wave shape, waveform disturbance, unbalance, or spectrum. When you move
to another waveform record, all views are updated simultaneously to reflect the
changes.
To view overlapped waveforms, click on the
button on the local toolbar; to view
non-overlapped waveforms, click on the
button.
Waveform data is recorded in series that may contain many cycles of the sampled
waveform. A waveform window displays up to 128 waveform cycles. If the waveform
contains more cycles, the scroll bar appears under the waveform pane allowing you
to scroll through the entire waveform.
