‎Chapter 11 Device Control Device Event Flags
PM180 Substation Automation Unit 117
Device Event Flags
The PM180 has 16 common event flags that are intended for use as temporary event
storage and can be tested and operated from the control setpoints. You can transfer
an event to the setpoint and trigger its operation remotely by changing the event
status through PAS.

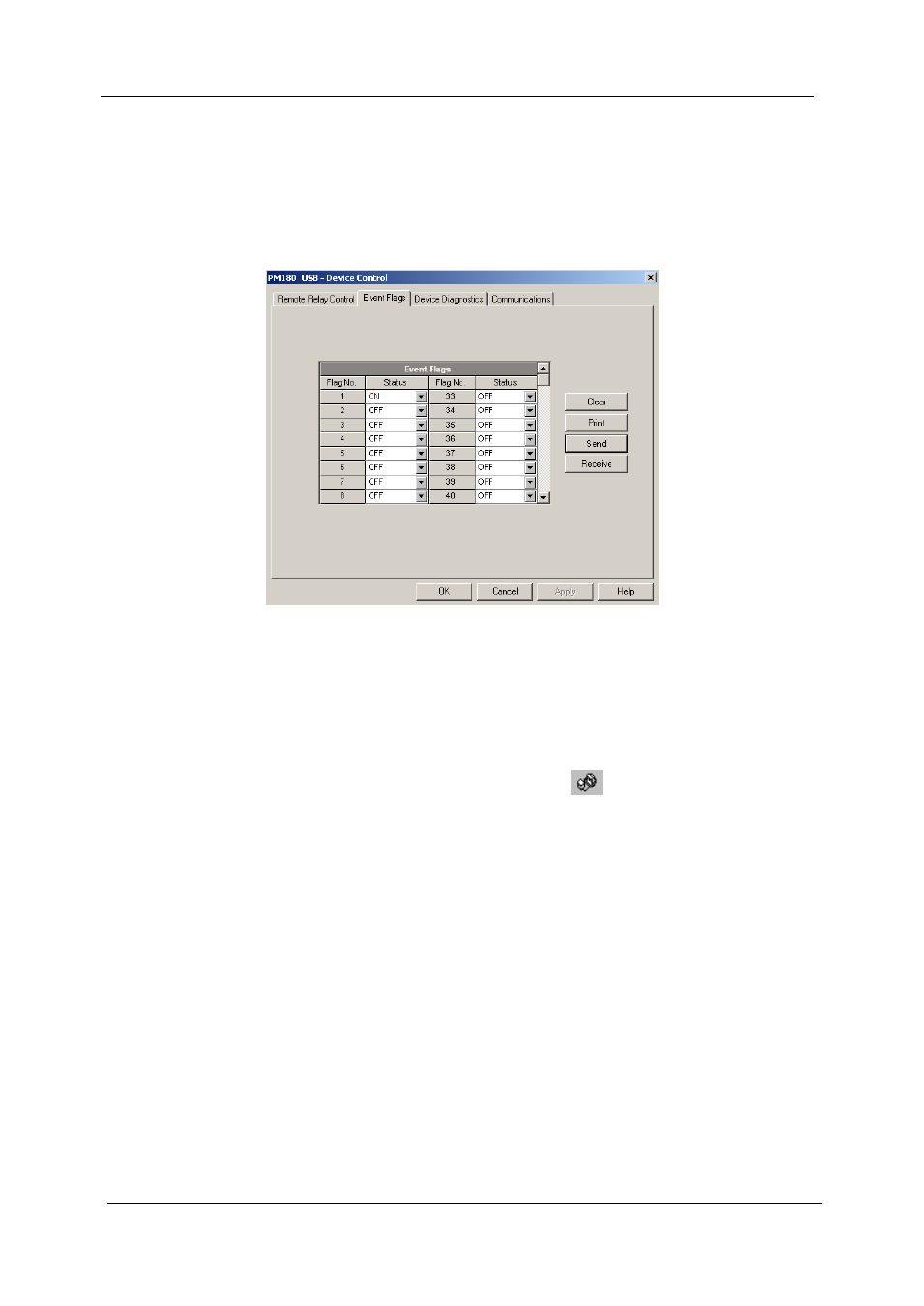

To enter the Event Flags dialog, check the On-line button on the PAS toolbar, select
Device Control from the Monitor menu, and then click on the Event Flags tab.
To change the status of an event flag:
1. From the “Status” box for the event flag, select the desired flag
status.
2. Click on Send.
Viewing and Clearing Device Diagnostics
You can examine the present device diagnostics status and clear it via PAS.
To enter the Device Diagnostics dialog, check the On-line
button on the PAS
toolbar, select Device Control from the Monitor menu, and then click on the Device
Diagnostics tab.
