‎Chapter 9 Totalization Energy and TOU
Registers Configuring TOU Daily Profiles
108 PM180 Substation Automation Unit
Option Format/Range Default Description
Summary Energy/TOU Registers
TOU Enabled Unchecked
Checked
Unchecked Links the summary energy register to the
parallel TOU energy register
AND SP None,
SP1-SP32
None None - no effect.
SP1-SP32 - connects the energy source
to the summary register only when
setpoint conditions are fulfilled.
Register Source List
Energy source None
kWh Import
kWh Export
kWh Total
kvarh Import
kvarh Export
kvarh Total
kVAh,
DI1-DI48,
REG1- REG16
None Links an energy source to the register
x kWh -10,000 to
10,000
1 The multiplication factor for the energy
source.
Register Reg1- Reg16 Reg1 Defines the target summary register for
the energy source

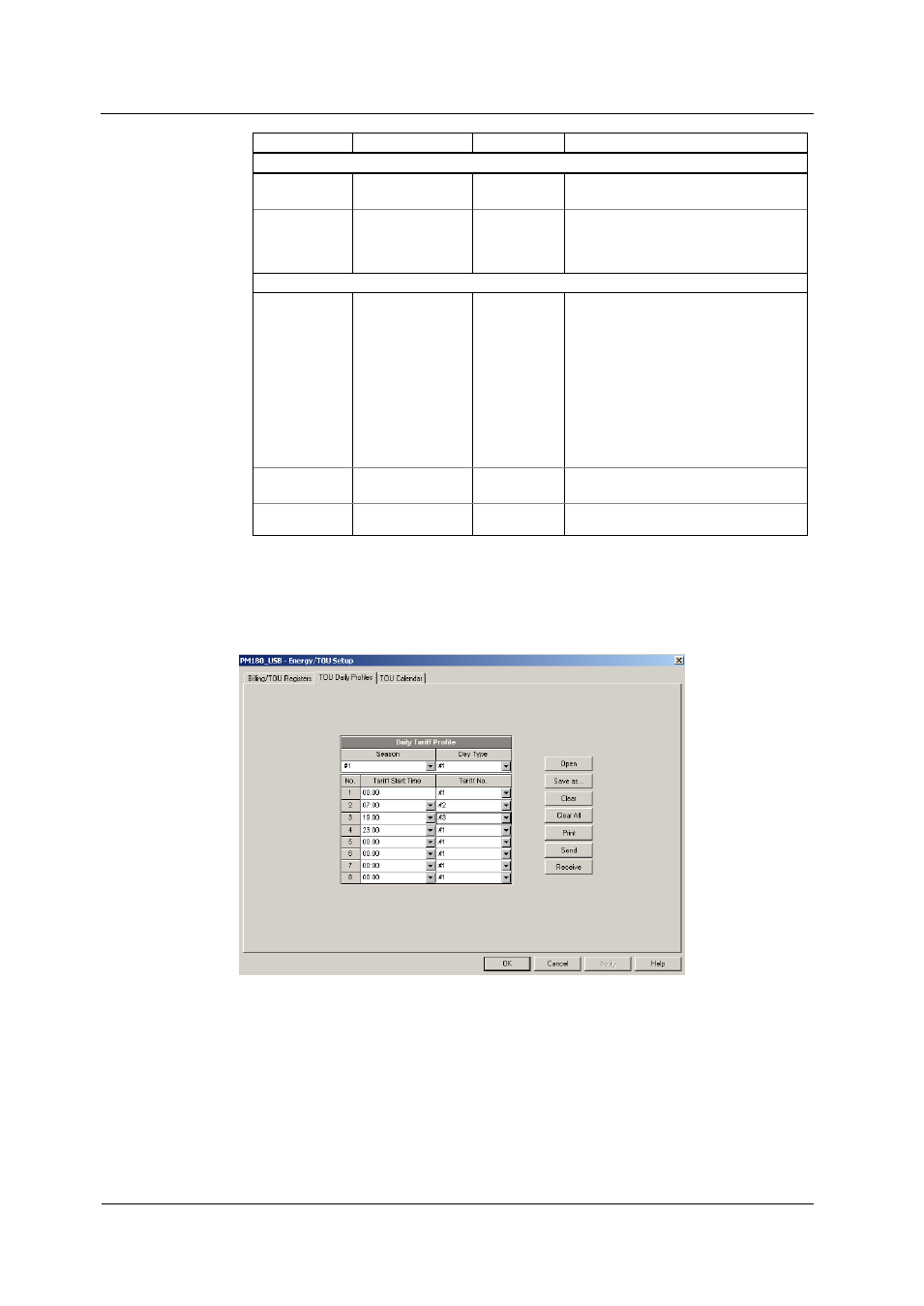

Configuring TOU Daily Profiles
To configure the TOU daily profiles, select Energy/TOU from the Meter Setup menu,
and then click on the TOU Daily Profiles tab.
The profile setup allows you to specify the daily tariff change points with a 15-minute
resolution.
To configure your daily profiles:
1. Select the desired profile number from the Profile No. box.
2. Select the start time for each tariff change point and the
corresponding active tariff number.
3. Repeat the setup for all active profiles.
The first tariff change point is fixed at 00:00 hours, and the last tariff change you
specified will be in use until 00:00 hours on the next day.
