‎Chapter 14 Viewing Log Files Viewing the Event Log
130 PM180 Substation Automation Unit
units. To change the disturbance units, select Options from the Tools menu, click on
the Preferences tab, select the preferred units, and then click OK.

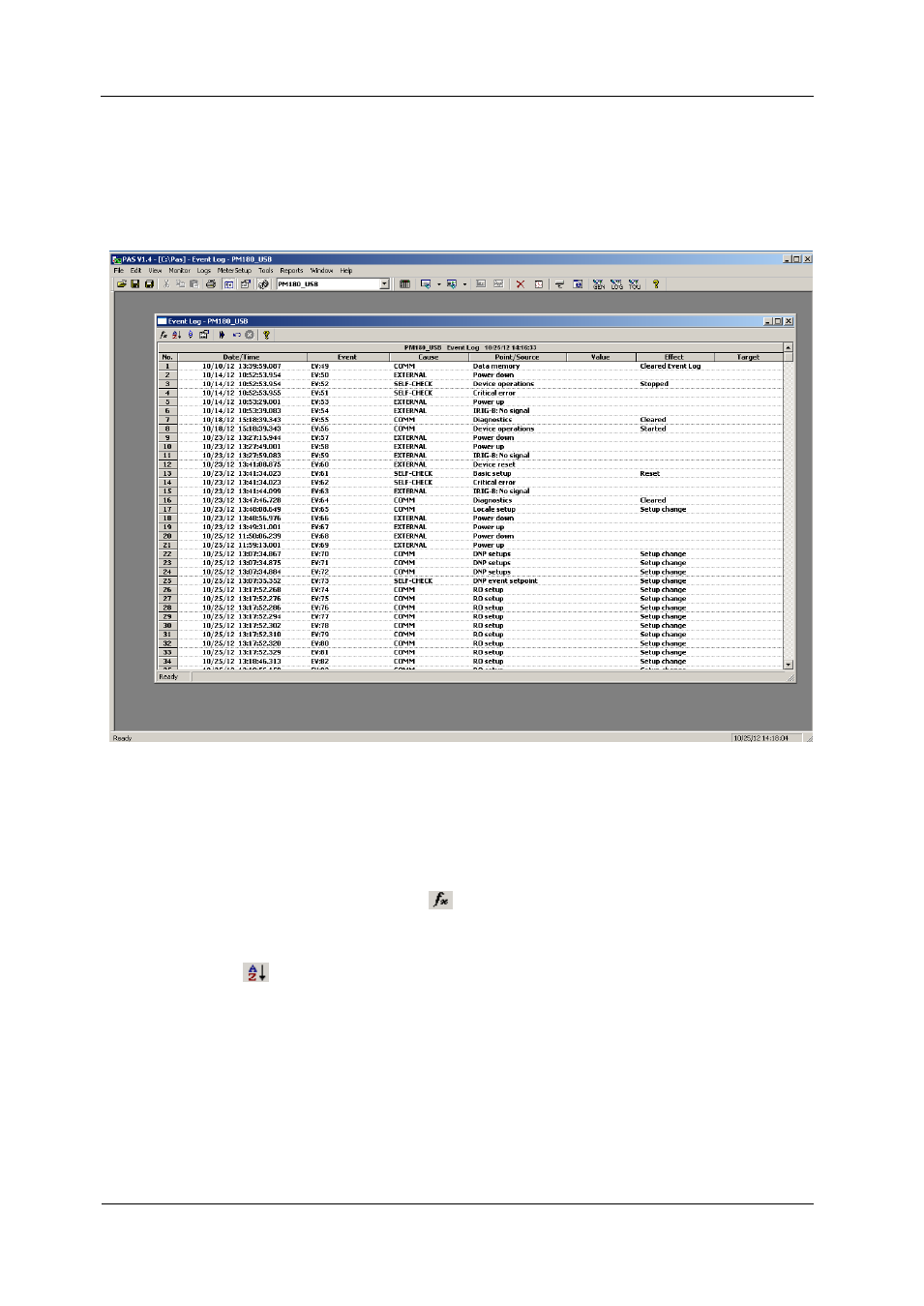

Viewing the Event Log
Event log files are displayed in a tabular view, one event per row. PAS loads the
entire database table to a window, so that you can scroll through the entire log to
view its contents.
Selecting Primary and Secondary Units
Voltages and currents can be displayed in primary or secondary units. To select units
for your data views, click on the monitor window with the right mouse button, select
Options, select the desired units for voltages and currents, and then click OK.
Filtering and Sorting Events
You can use filtering to find and work with a subset of events that meet the criteria
you specify. Click on the Filter button , or click on the report window with the right
mouse button and select “Filter...”. Check the causes of events you want to display,
and then click OK. PAS temporary hides rows you do not want displayed.
To change the default sorting order based on the date and time, click on the Sort
button , or click on the report window with the right mouse button and select
“Sort...”, check the desired sort order, and then click OK.
Linking to Waveforms and Data Records
If you programmed a setpoint to log setpoint operations to the Event log and the
setpoint can trigger the Waveform or Data recorder, PAS automatically establishes
links between the event and other database records where it finds a relationship with
the event. Waveforms recorded at the time of the event are always linked to this
event, even if the waveform was triggered by another source.
