‎Chapter 8 Configuring Recorders Configuring Device Memory
80 PM180 Substation Automation Unit
Chapter 8 Configuring Recorders
The PM180 is provided with a 256MB onboard non-volatile memory for data, event
and waveform recording.
Before using recorders, the device memory must be partitioned between log files.
The device memory is fully configurable; you can define how much memory to
allocate for each log file. If you want to change the factory settings, follow the
guidelines in the section below.
Configuring Device Memory
The PM180 memory can be partitioned for a total of 28 log files:
 Event log
 16 Data logs
 8 Waveform logs
 SOE log
 IEEE 1159 or EN 50160 PQ log
 Fault log

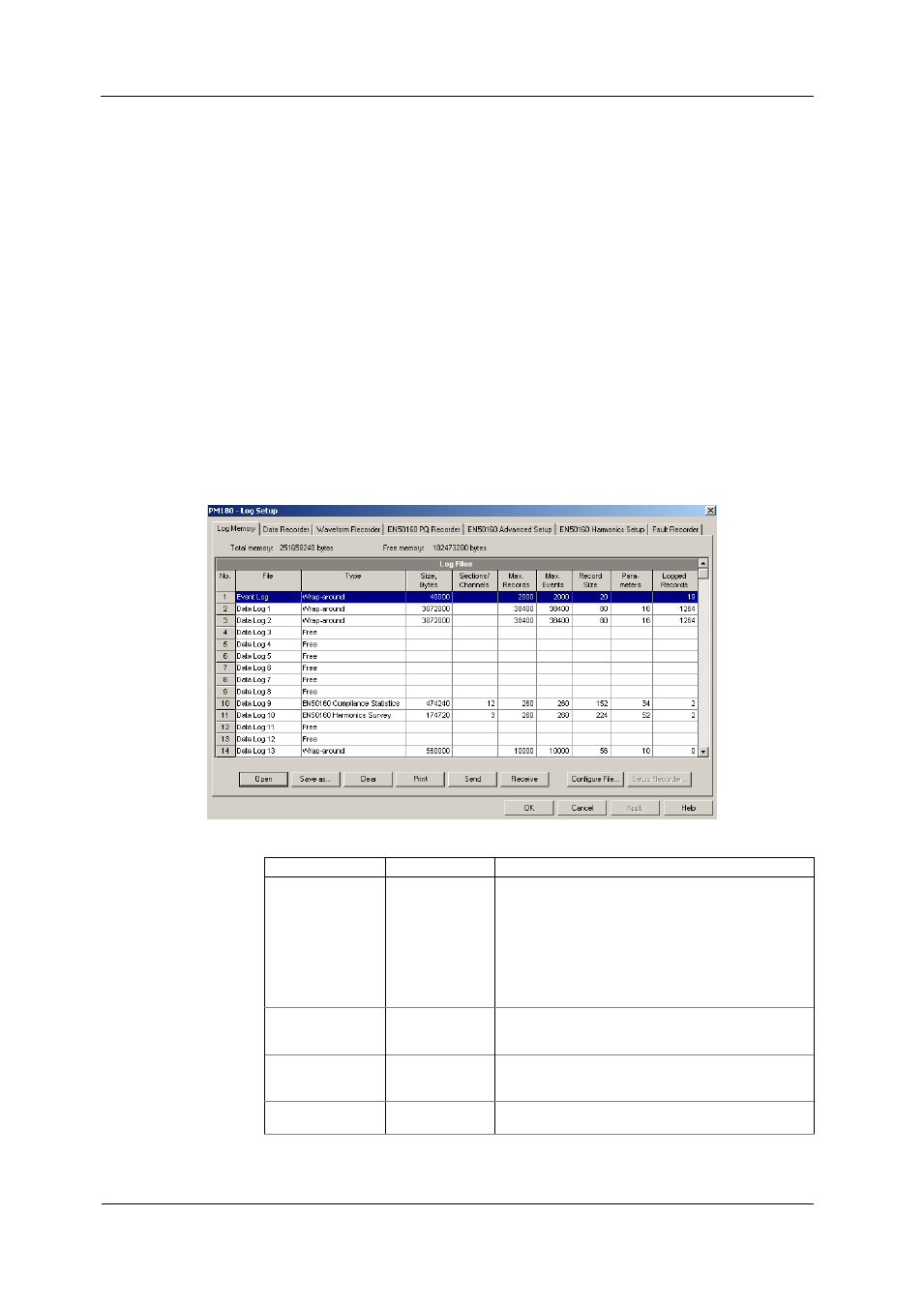

To view the device memory settings, select Memory/Log from the Meter Setup menu,
and then click on the Log Memory tab.
The following table shows available file options.
Option Format/Range Description
Type Wrap around,
Non-wrap
TOU Monthly
Profile
TOU Daily Profile
Defines the file behavior when it is filled up.
Wrap around: recording continues over the oldest
records.
Non-wrap: recording is stopped until the file is cleared.
TOU Monthly Profile: monthly TOU profile data log (only
for data log #15). Wrap around by default.
TOU Daily Profile: daily TOU profile data log (only for
data log #16). Wrap around by default.
Size Shows the size of the memory allocated to the file. It is
set automatically depending on the size of a file record
and the number of records in the file.
Sections/Channels 0-32 Defines the numbers of sections in a multi-section TOU
profile data log file or the number of recording channels
in a waveform log file
Num. of Records 0-65535 Allocates the file memory for a predefined number of
records
