‎Chapter 10 Configuring
Communication Protocols
Configuring DNP3
PM180 Substation Automation Unit 111
1. From the Meter Setup menu select Protocol Setup and click on the
Modbus Registers tab.
2. Change the raw scales in the Modbus Options pane. The
allowable range is 0 to 65535.
3. Click Send to download your setup to the device.
Configuring DNP3
DNP Options can be changed both via DNP3 and Modbus. Refer to the PM180
DNP3 Reference guide for information on the protocol implementation and a list of
the available data points.
DNP Options

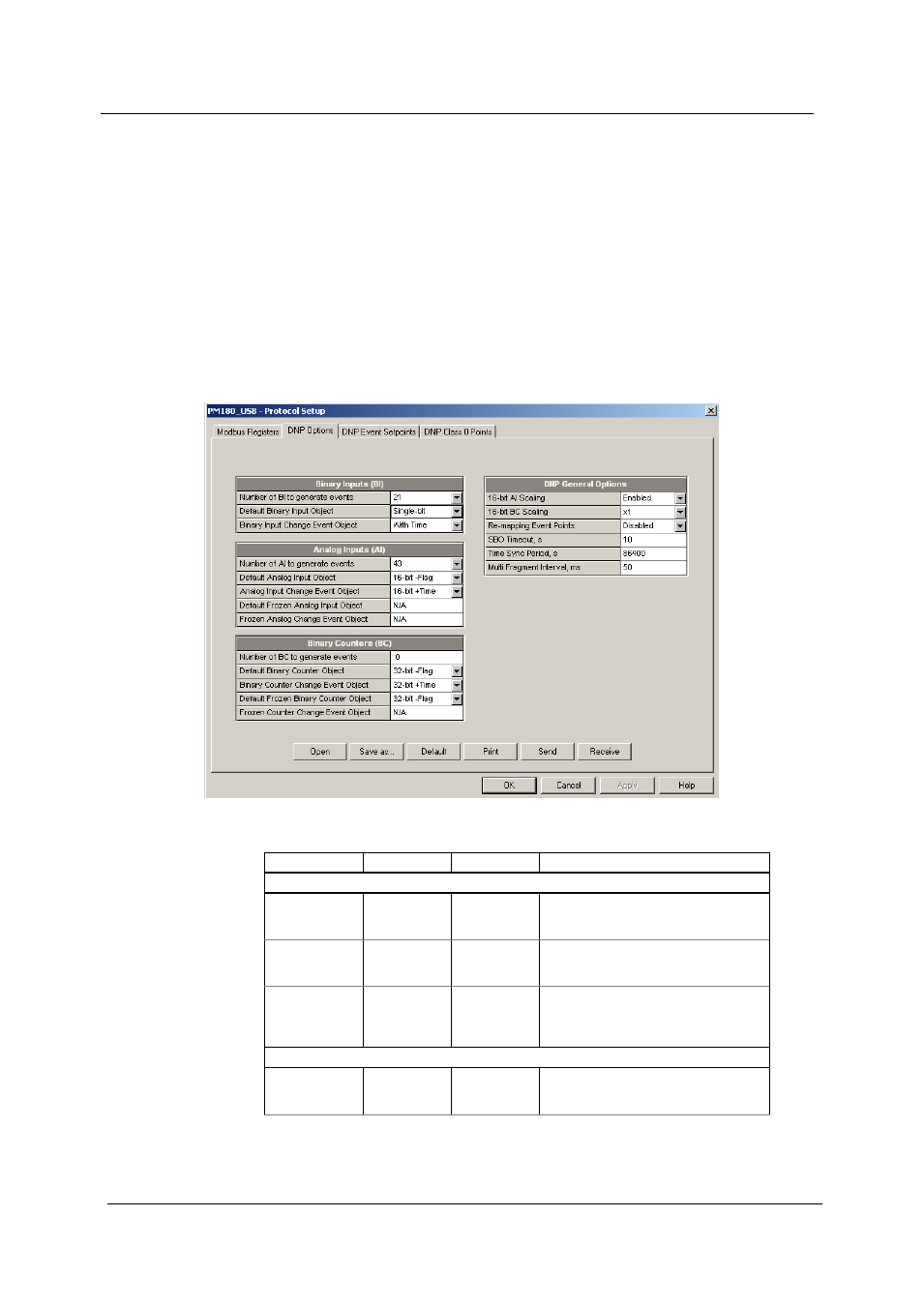

From the Meter Setup menu select Protocol Setup and click on the DNP Options tab.
The following table describes available DNP options. Refer to the DNP3 Data Object
Library document available from the DNP
User’s Group on the DNP3 object types.
Parameter Options Default Description
Binary Inputs (BI)
Number of BI to
Generate
events 0-64 3 21 The total number of BI change event
points for monitoring
Binary Input
Object Single-bit
With Status
Single-bit The default BI object variation for
requests with qualifier code 06 when no
specific variation is requested
Binary Input
Change Event
Object Without Time
With Time
With Time The default BI change event object
variation for requests with qualifier code
06 when no specific variation is
requested
Analog Inputs (AI)
Number of AI to
Generate
events 0-64 3 43 The total number of AI change event
points for monitoring
