Chapter 4 Using HyperTerminal
Windows HyperTerminal allows you to configure the network, communications and
security settings in your PM180, and to view certain diagnostics information such as
device diagnostics and network statistics. HyperTerminal is also used for servicing
the PM180 and upgrading the device firmware.
Connecting to the Device
Running HyperTerminal
1. Connect your PC to the PM180 COM1 RS-232 port using a
standard RS-232 DTE-DTE (null-modem) cable.
2. Run HyperTerminal from the Windows Start -> Programs ->
Accessories -> Communications menu.

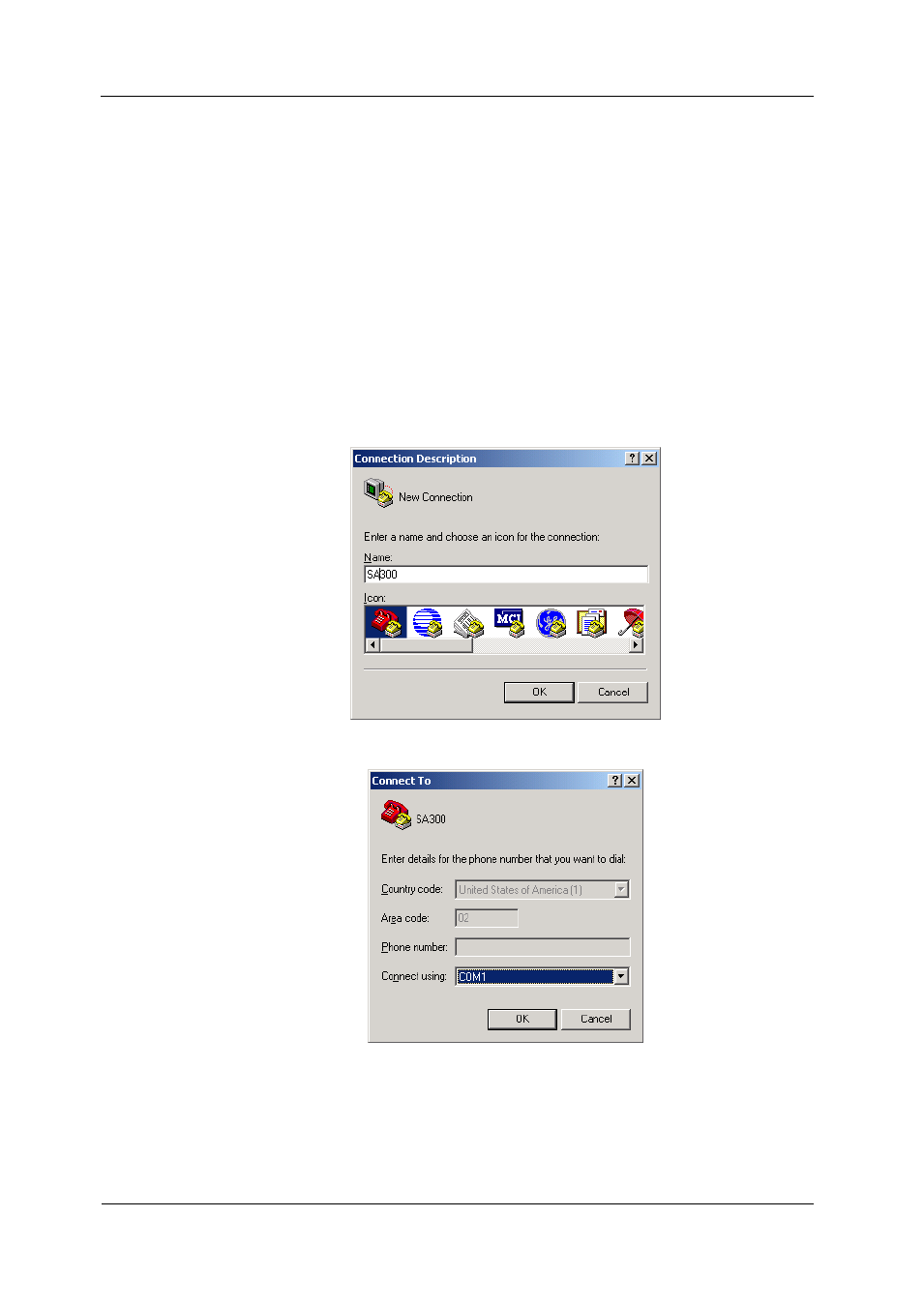

3. Type a name for your new connection and click OK.
4. In the “Connect Using” box, select the PC COM port to which your
PM180 is connected and click OK.
5. In the “Bits per second” box, select 19200 bps, in the “Flow control
box,” select Xon/Xoff, and then click OK.
