Chapter 8 Configuring Recorders Configuring the Data Recorder
88 SA300 Substation Automation Unit

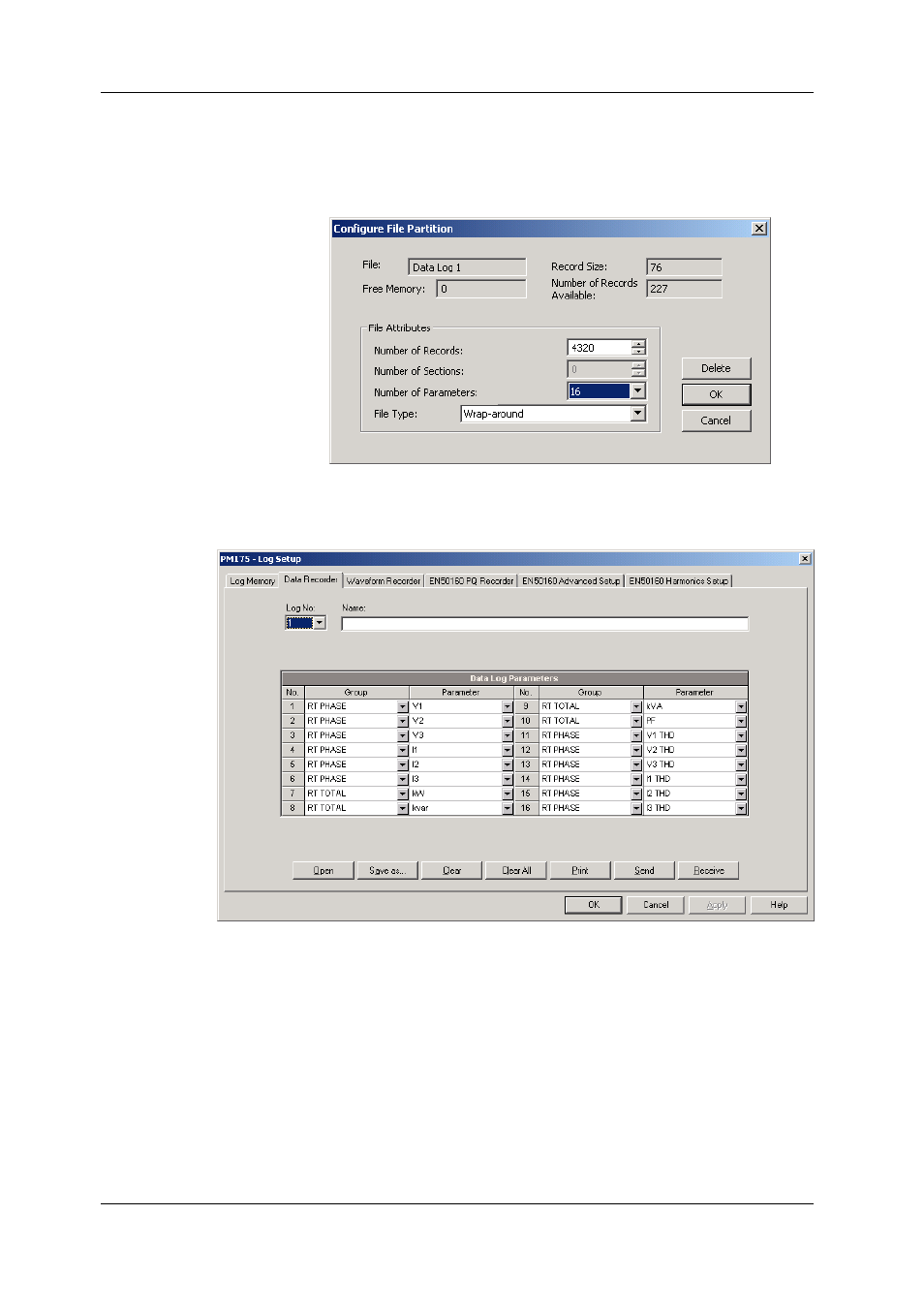

3. Select a file type.
4. Select the number of parameters to be recorded in the file records.
5. Select the maximum number of records to be recorded in the file.
6. Click OK, and then send your new setup to the device, or save to
the device database.
7. Highlight the data log file row with the left mouse button, and then
click on the “Setup Recorder” button, or click on the “Data
Recorder” tab and select the log number corresponding to your
file.
8. Configure the list of parameters to be recorded in the data log file.
You are not allowed to select more parameters than you defined
when configuring your file. Refer to Appendix C for a list of
available parameters.
For your convenience, PAS follows your selection and helps you to
configure a series of the neighboring parameters: when you open
the “Group” box for the next parameter, PAS highlights the same
group as in your previous selection; if you select this group again,
PAS automatically updates the “Parameter” box with the following
parameter in the group.
9. Add the name for your data log file in the “Name” box. It will
appear in the data log reports.
10. Save your new setup to the device database, and send it to the
device.
