Chapter 14 Viewing Log Files
Viewing Waveforms
SA300 Substation Automation Unit
149

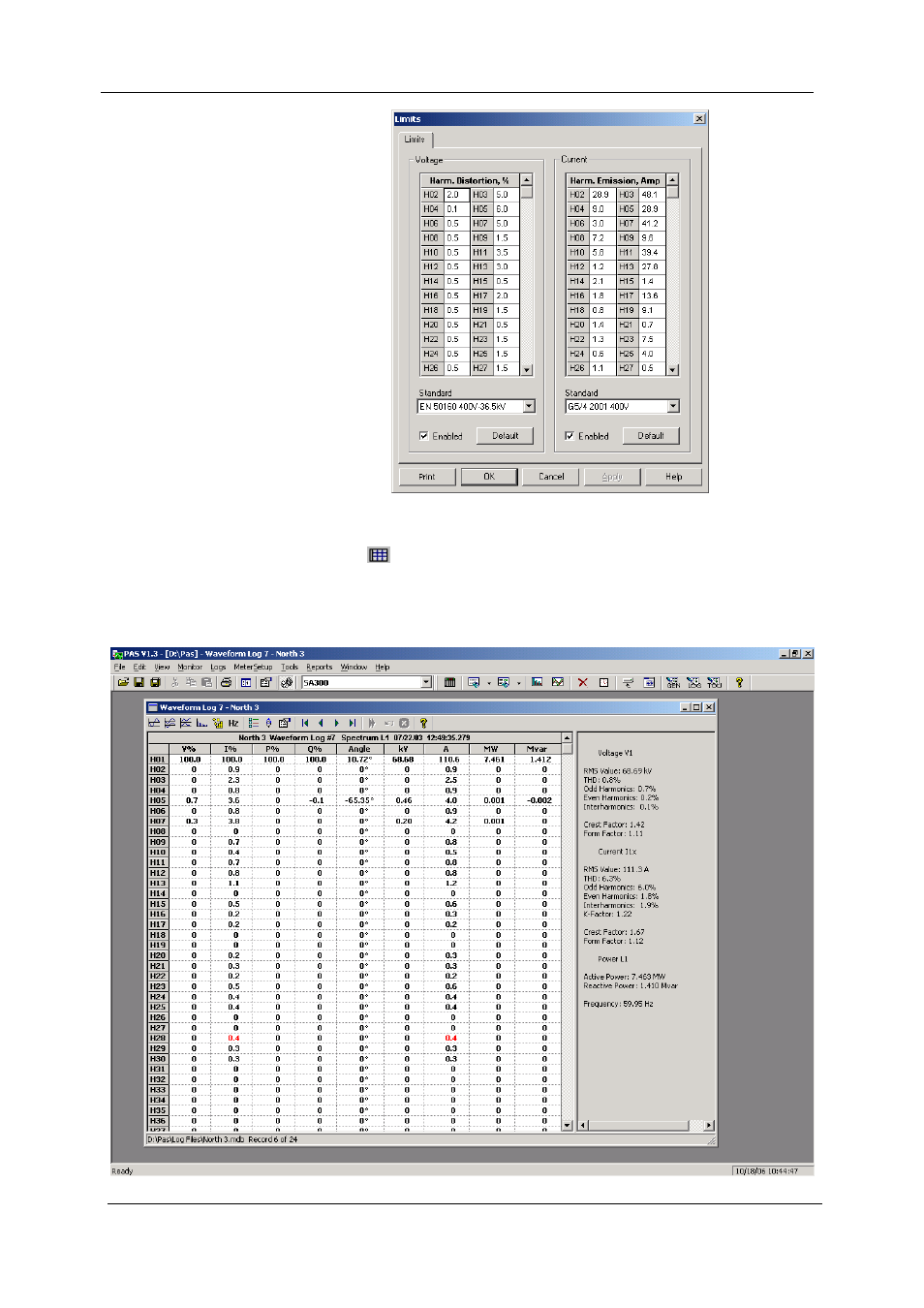

Viewing a Spectrum Table
Click on the
button on the local toolbar to display the harmonics spectrum in a
tabular view for a selected phase or for all phases together.
The spectrum table shows voltage, current, active power and reactive power
harmonic components both in percent of the fundamental and in natural units, and
harmonic phase angles.
