Chapter 7 Programming the SA300 Using Periodic Timers
SA300 Substation Automation Unit 77
Option Range Default Description
Counter Setup
Counter Source Setup
Pulse source None,
DI1-DI48 None Links a digital input to the counter
Multiplier -10,000 to
10,000
1 The value added to the counter when a
pulse is detected on the pulse source
input
Counter 1-32 1 Defines the target counter for the pulse
source input
Using Periodic Timers
The SA300 has 16 programmable timers that are used for periodic recording and
triggering operations on a time basis through the Control Setpoints. When a pre-
programmed timer interval is expired, the timer generates an internal event that can
trigger any setpoint (see
Using Control Setpoints ). The programmable time interval
can be from 1/2 cycle and up to 24 hours.

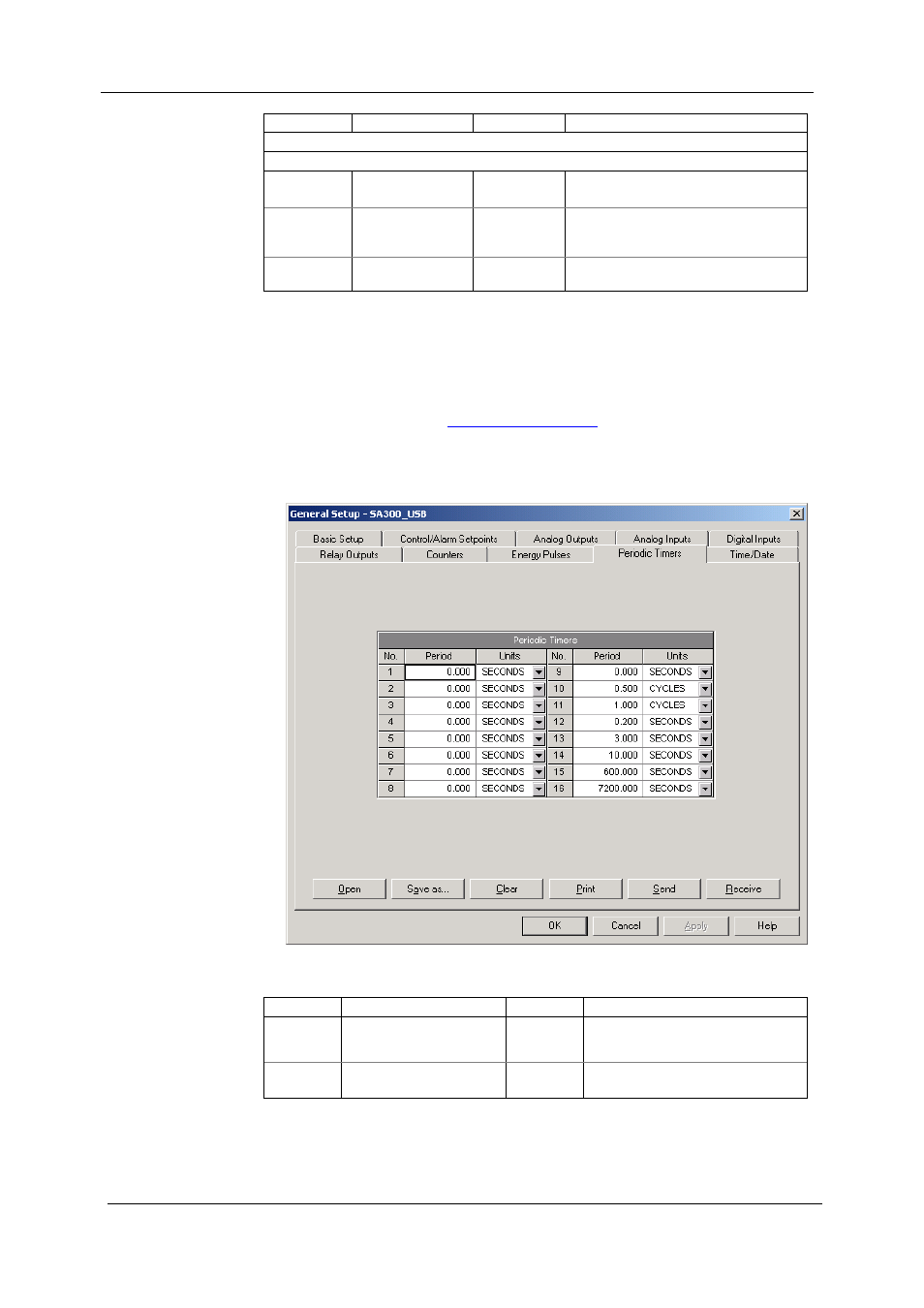

To configure the device timers, select General Setup from the Meter Setup menu,
and then click on the Periodic Timers tab.
The available options are described in the following table:
Option Range Default Description
Period 0 = disabled
0.010 - 100,000.000 sec
0.500 - 100,000.000 cycles
0 The timer period
Units Seconds,
Cycles
Seconds The time units
Seven timers from Timer #10 through Timer #16 are factory preset and cannot be re-
programmed. They are primarily intended for the use with the Power Quality and
Fault recorders. Other timers can be programmed by the user.
