Adding Point and Status Labels to the SOE Log
When displaying the SOE log report, PAS shows you default designations of the
event source points and their status (open/closed or start/end). You can specify your
own IDs and status labels for each event point and give the point status an
appropriate description, for example, define the location of the breaker or protection
relay.

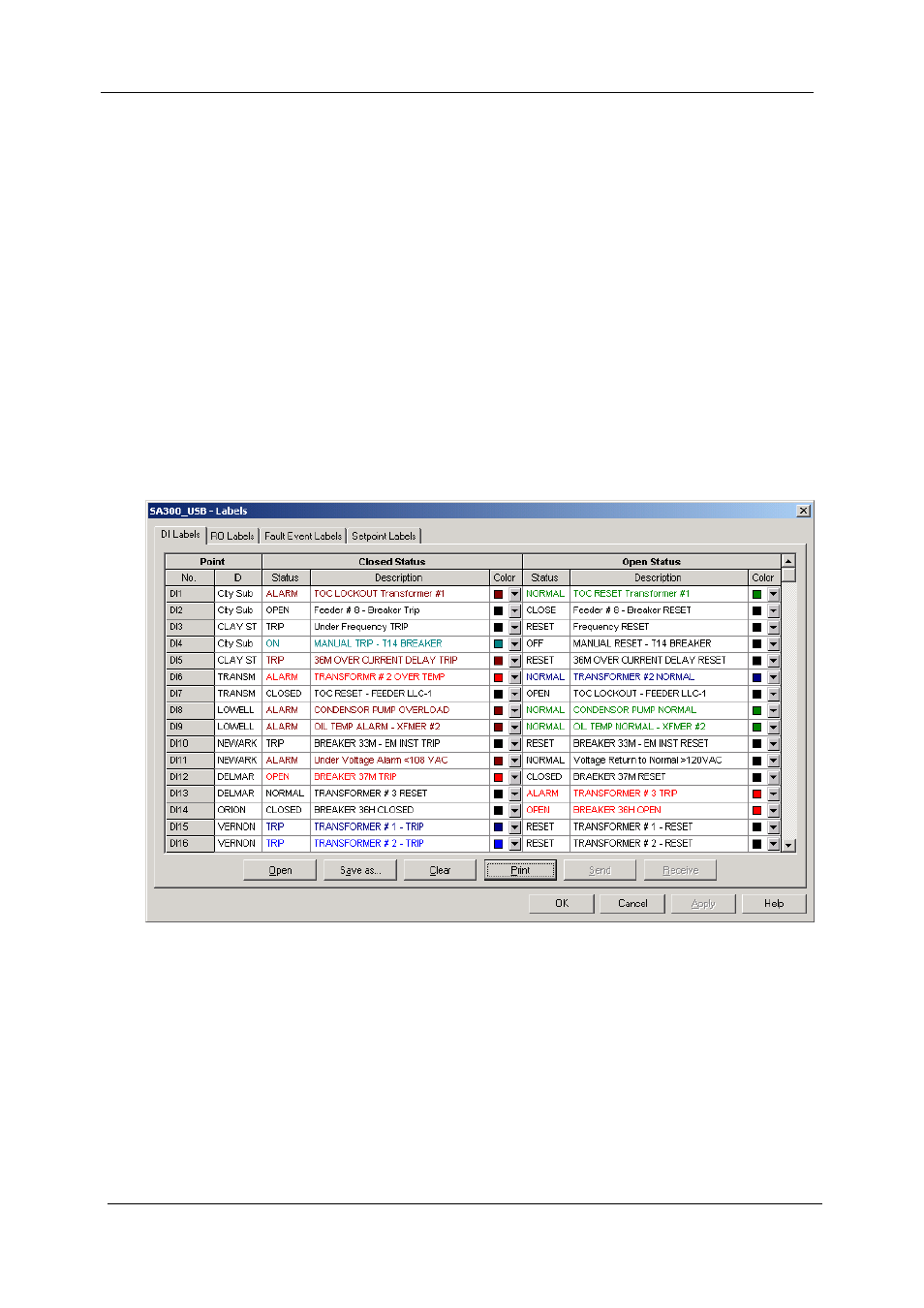

To define labels for your SOE event points:
1. Select Labels from the Meter Setup menu, and then click on the
appropriate tab.
2. Type in the labels and descriptions you want to give the event
source points and their status.
3. Select appropriate label colors.
4. Click on “Save as” to save your settings to the site database.
5. If your SA300 is provided with the expanded memory module,
send your setup to the device so you can recall your labels when
connecting to the device from another PC.
An ID or status label can be up to 32 characters long, and a status description can
have up to 96 characters. The text boxes have a scroll option to accommodate more
characters than can be viewed in the box. If your label or description is too long to fit
in a box, the text scrolls to allow you to enter long strings.
Configuring the Data Recorder
The Data recorder is programmable to record up to 16 data parameters per record in
each of 16 data log files. The list of parameters to be recorded to a data log is
configured individually for each file.
Conventional Data Log Files
To create a new data log file or re-configure an existing file:
1. Select Memory/Log from the Meter Setup menu, and then click on
the Log Memory tab.
2. Double click on the file partition with the left mouse button.
