Chapter 11 Device Control Device Mode Control
SA300 Substation Automation Unit 119
Chapter 11 Device Control
This chapter describes how to change device modes, view and clear device
diagnostics, and directly operate relay outputs in your SA300 from PAS. To access
device control options you should have your device online.
Authorization
If your device is password protected (see Access Control Menu in Chapter 3 and
Changing the Password and Security in Chapter 4), you are prompted for the
password when you send your first command to the device.

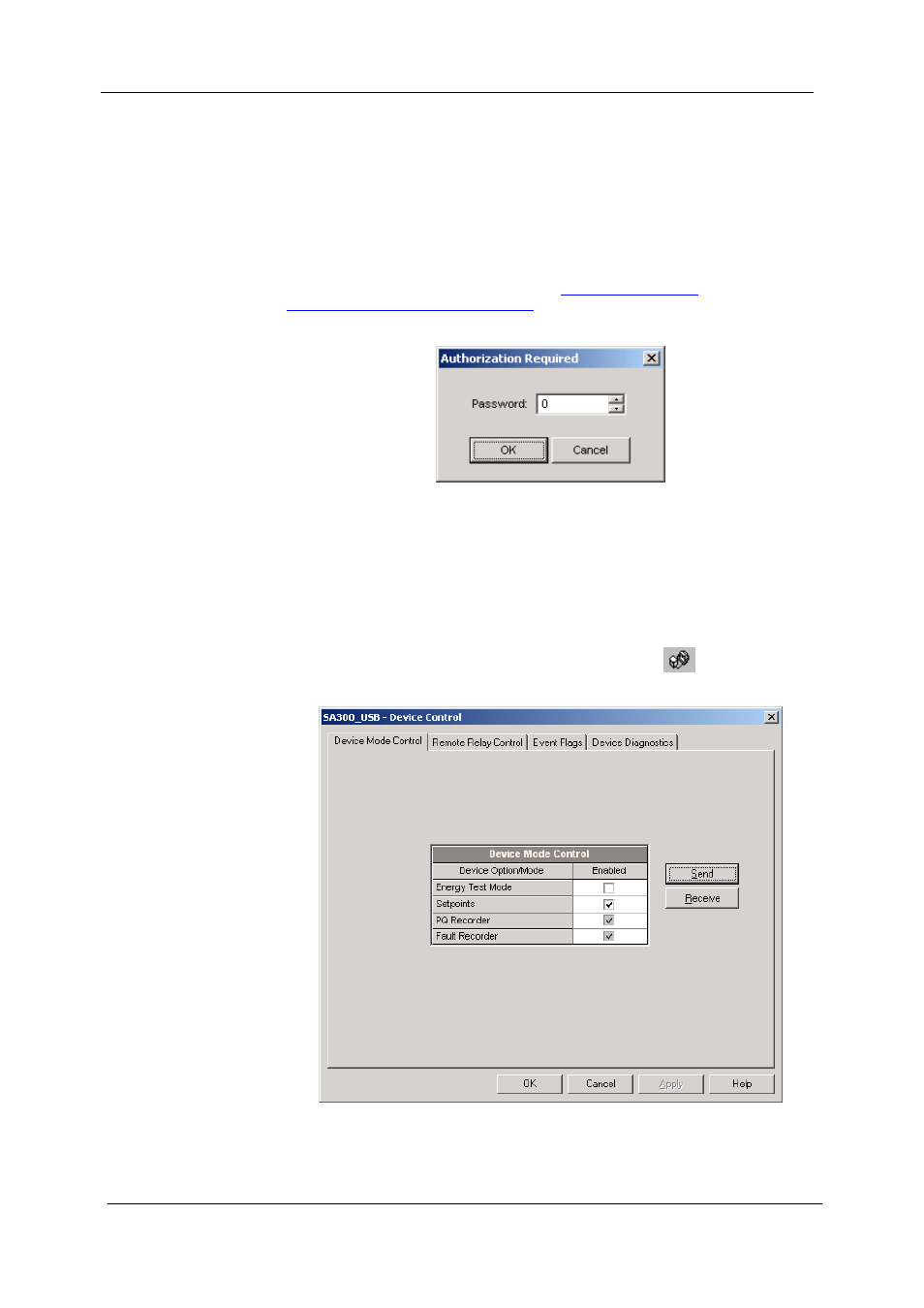

Enter the password and click OK. If your authorization was successful, you are not
prompted for the password again until you close the dialog window.
Device Mode Control
Device Mode Control allows you to put your device into the energy test mode, and to
enable or disable setpoints operation. You can also inspect the Power Quality and
Fault recorder status that may be changed via the corresponding recorder’s setup.
To enter the Device Mode Control dialog, check the On-line
button on the PAS
toolbar, and then select Device Control from the Monitor menu.
The screen above shows the factory default settings. The setpoints are operational by
default.
