Chapter 8 Configuring Recorders Configuring the Event Recorder
SA300 Substation Automation Unit 85
No. File Type Size,
Bytes
Channels Number of
Records
Number of
Events
Description
1 Event log Wrap
around 20000 1000 1000
2 Data log #1 Wrap
around 328320 4320 4320 Configured for
continuous data
recording
3 Data log #2 Wrap
around 328320 4320 4320 Configured for
continuous data
recording
10 Data log #9 Wrap
around 42624 12 24 24 Configured for
EN50160
compliance statistics
11 Data log #10 Wrap
around
15840 3 24 24 Configured for
EN50160 harmonics
survey
14 Data log #13
(fault data trend) Wrap
around 224640 4320 4320 Used by the Fault
recorder
15 Data log #14
(PQ data trend) Wrap
around 288000 6000 6000 Used by the PQ
recorder
24 Waveform log #7 Wrap
around
2136000 10 200 25 Used by the PQ and
Fault recorders
25 Waveform log #8 Wrap
around
683520 8 80 10 Used by the PQ
recorder
26 SOE log Wrap
around 14000 1000 1000
27 PQ log Wrap
around 64000 2000 2000
28 Fault log Wrap
around 40000 1000 1000
Configuring the Event Recorder

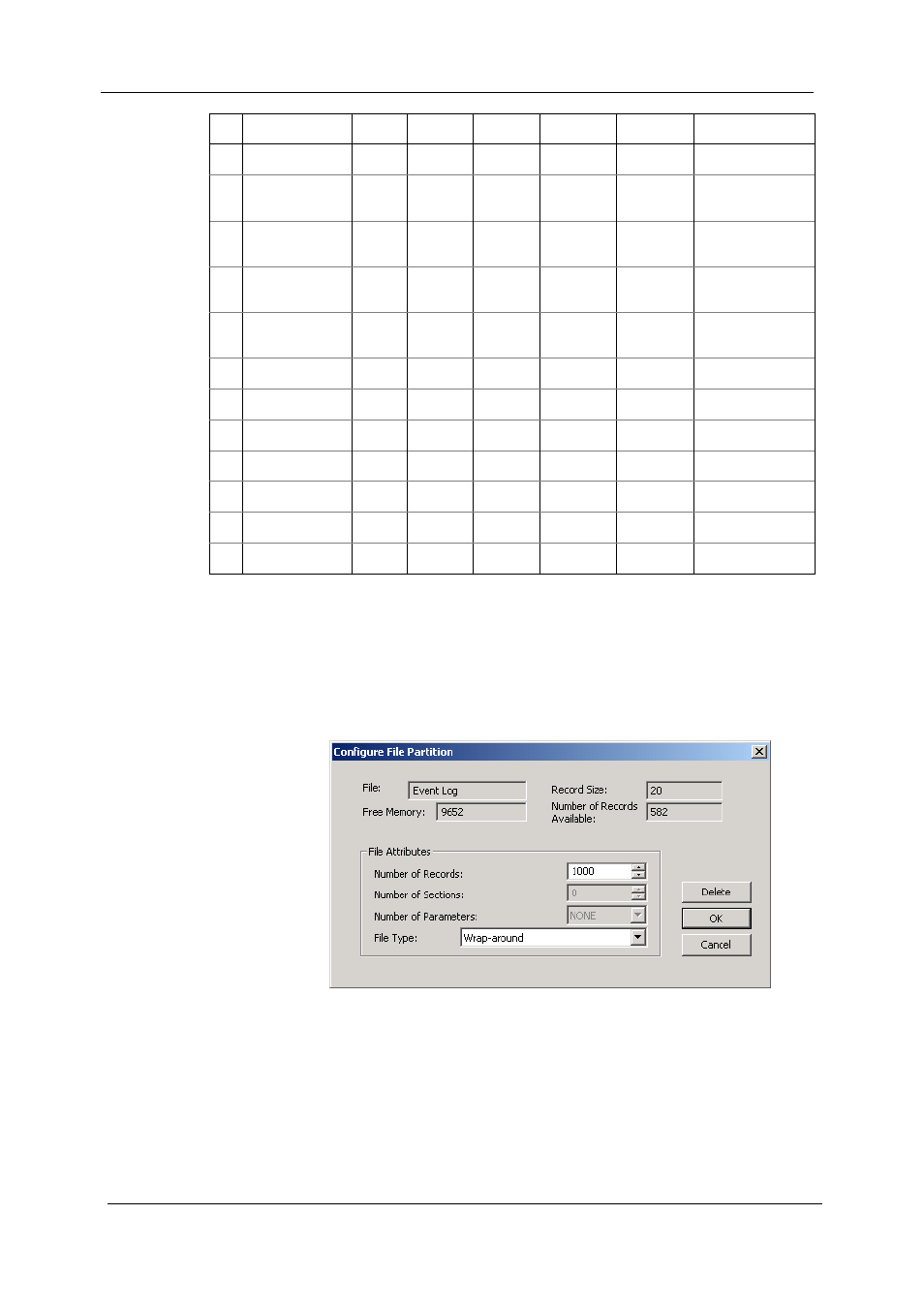

To change the Event log file size:
1. Select Memory/Log from the Meter Setup menu, and then click on
the Log Memory tab.
2. Double click on the Event log file partition with the left mouse
button.
3. Select a file type.
4. Select the maximum number of records you want to be recorded in
the file.
5. Click OK, and then send your new setup to the device or save to
the device database.
By default, the Event recorder stores all events related to configuration changes,
reset, and device diagnostics. In addition, it records events related to setpoint
operations. Each setpoint should be individually enabled for recording to the Event
log.
