Chapter 9 Totalization Energy and TOU Configuring TOU Calendars
112 SA300 Substation Automation Unit
1. Select the desired profile number from the Profile No. box.
2. Select the start time for each tariff change point and the
corresponding active tariff number.
3. Repeat the setup for all active profiles.
The first tariff change point is fixed at 00:00 hours, and the last tariff change you
specified will be in use until 00:00 hours on the next day.
Configuring TOU Calendars
To configure the TOU daily profiles, select Energy/TOU from the Meter Setup menu,
and then click on the TOU Daily Profiles tab.
To configure your calendars:

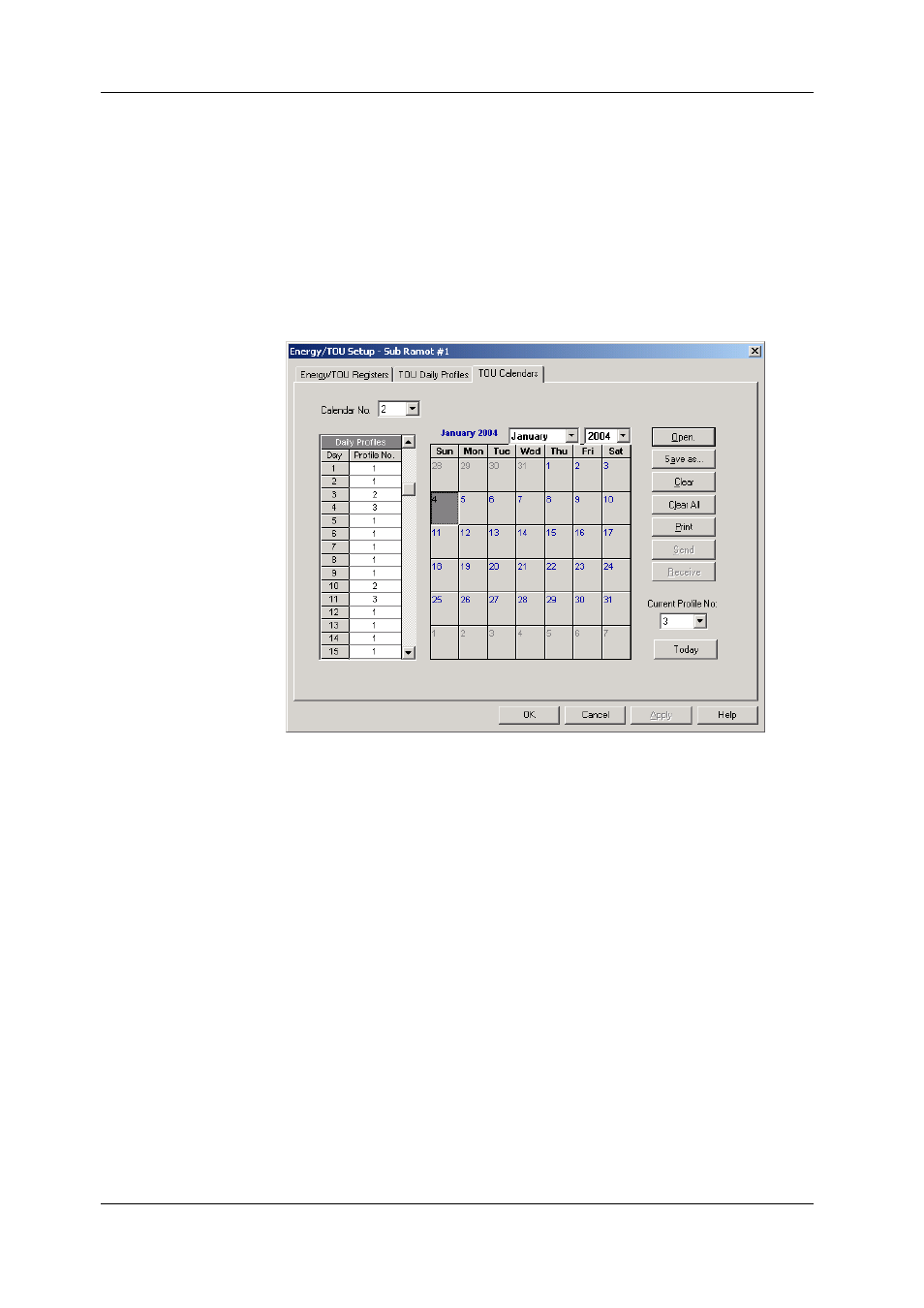

1. In the “Calendar No.” box, select the calendar number for the
calendar you want to set up.
2. Select the calendar year for your calendar and set the month to
January.
3. In the “Current Profile No.” box, select the first daily profile number
that is active in this month. Click on day cells when this profile will
be active. The assigned profile number appears at left in the “Daily
Profiles” window for all days of the month for which it was
selected.
4. In the “Current Profile No.” box, select the next daily profile
number that is active in this month. Click on day cells when this
profile will be active. Repeat these steps for all daily profiles that
are active in this month.
5. Repeat the setup for all months of the year.
6. Select the next calendar and configure it for the following year in
the same manner. Repeat setup for all years for which you want to
configure calendars.
