8.2 Extendability/networking
Drive PLC
Appendix
8−2
L
DrivePLC DE 6.0

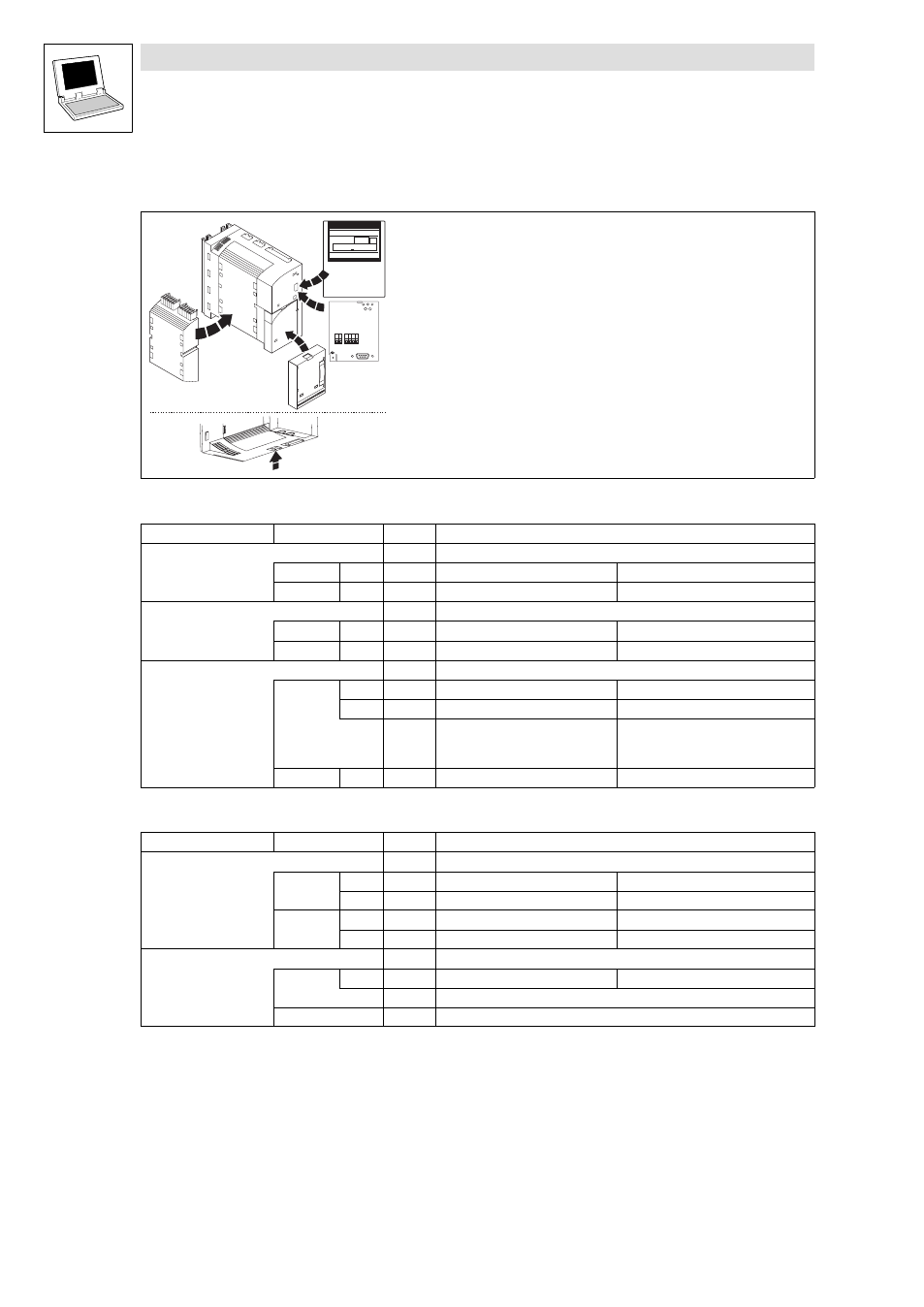

8.2 Extendability/networking
U
V T
S z
Z
y
Y
SH PRG p
PaR2 PaRa 0051 00
125 rpm 0
MCTRL-N-ACT
GLOBAL DRIVE
dc b B A
59 39 71 72 88 89
LECOM A/B
l

‚
„
ƒ
 Automation interface (AIF)
for keypad and the following AIF modules:
·
2102 LECOM−A/B/LI
·
2103 FP interface (RS−232C)
·
2111 INTERBUS
·
2112 INTERBUS−Loop
·
2133 PROFIBUS−DP
·
2174 CAN addressing module
·
2175 DeviceNet / CANopen
Others in preparation
‚ Plug−in station for extension boards
ƒ Function interface (FIF)
for FIF modules
„ Integrated system bus interface
(Terminal X5 at the bottom of the Drive PLC)
Extension boards
‚
Inputs/outputs Number Description
Extension Board 1
Inputs digital 6 Free inputs 24 V DC / 8 mA each input
Outputs digital 6 Free outputs 24 V DC / max. 1 A each output
Extension Board 2
Inputs digital 14 Free inputs 24 V DC / 8 mA each input
Outputs digital 8 Free outputs 24 V DC / max. 1 A each output
extension board 3
Inputs digital 6 Free inputs 24 V DC / 8 mA each input
analog 2 Free inputs (10 bit + sign) ±10 V
1 Encoder input Frequency range:
HTL 0 ... 200kHz, TTL 0 ... 500kHz
(TTL/HTL level)
Outputs digital 6 Free outputs 24 V DC / max. 1 A each output
Modules for function interfaces (FIF)
ƒ
Inputs/outputs Number Description
Standard I/O FIF module
Inputs digital 5 Free inputs 24 V DC / 8 mA each input
analog 1 Free input (10 bit + sign) ±10 V
Outputs digital 1 Free output 24 V DC / max. 1 A
analog 1 Free output (10 bit + sign) ±10 V / max. 2 mA
CAN−I/O FIF module
Inputs digital 1 Free input 24 V DC / 8 mA
3 System bus (CAN), free inputs
Outputs System bus (CAN)
