2.13 PWRUP_PowerUpControl (node number 171)
Drive PLC
System blocks
2−36
L
DrivePLC DE 6.0
2.13 PWRUP_PowerUpControl (node number 171)
This system block is only implemented as of software version V 8.1.
If the system block PWRUP_PowerUpControl is integrated into the control configuration, it can
avoid a U15 TRIP in the event of a short mains voltage dip.
PWRUP_bWaitFor24V_b
PWRUP_wMaxDelayTimeFor24V_b
PWRUP_PowerUpControl
0
1
PLC init
24 V
const.

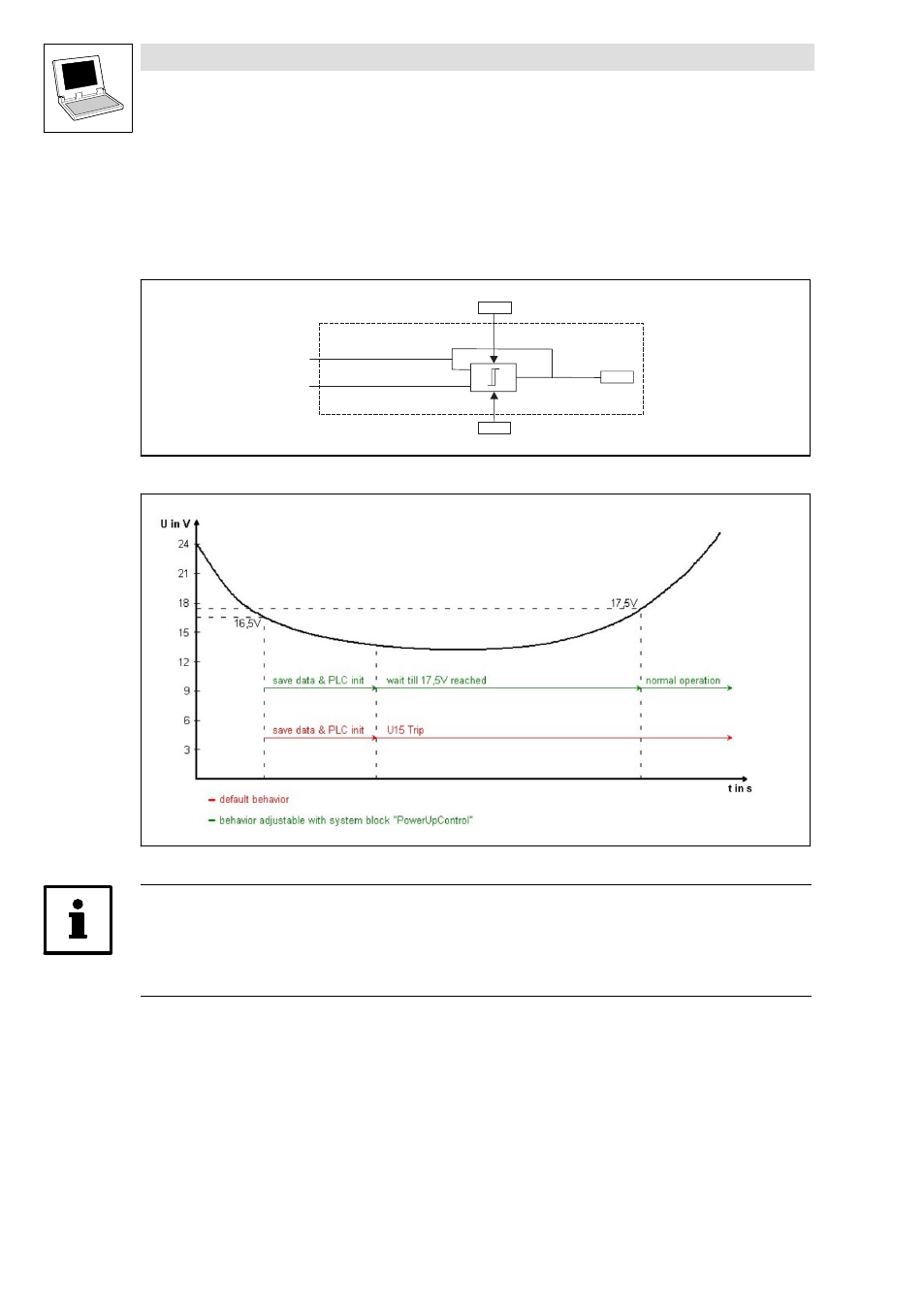

Fig. 2−18 PWRUP_PowerUpControl
Fig. 2−19 Drive PLC behaviour in the event of a short dip of the 24−V−supply voltage
Tip!
This behaviour can only be activated if the control bit and the control word are contained in the
system POU "PLC_ColdStart".
If the system block is activated, a U15 error is indicated as warning in the history buffer
