7.4 DIGITAL_IO_EB3 (node number 4)
Drive PLC
System blocks − Extension Board 3
7−10
L
DrivePLC DE 6.0
7.4 DIGITAL_IO_EB3 (node number 4)
7.4.1 Inputs_DIGITAL_EB3 (digital inputs, extension board 3)
This SB reads the signals at terminals I9 ... I16 of the extension board 3 and conditions them.
I9
I10
DIGIN_bIn9_b
Inputs_DIGITAL_EB3
C0446/1
I11
I12
I13
I14
DIGIN_bIn10_b
DIGIN_bIn11_b
DIGIN_bIn12_b
DIGIN_bIn13_b
DIGIN_bIn14_b
I15
I16
DIGIN_bIn15_b
DIGIN_bIn16_b

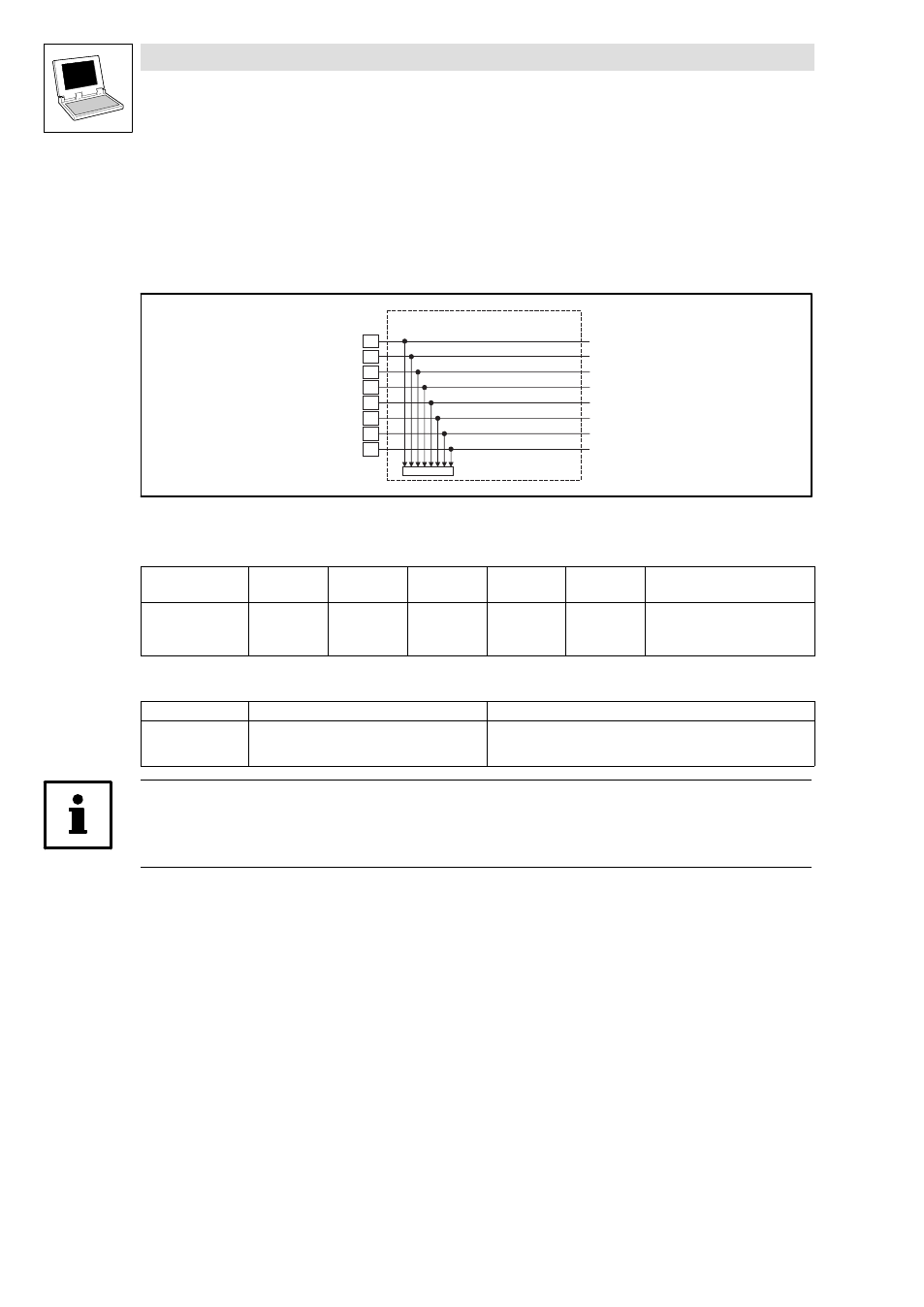

Fig. 7−9 Inputs_DIGITAL_EB3
System variables
Variable Data type Signal type Address Display
code
Display
format
Notes
DIGIN_bIn9_b
Bool binary
%IX4.0.0 C0446/1−bit1
bin ... ... ...
DIGIN_bIn16_b %IX4.0.7 C0446/1−bit8
Electrical data of the input terminals
Terminal Use Data
I9
...
I16
freely assignable
LOW level:
HIGH level:
Input current: 0 ... +4 V
+13 ... +30 V
8 mA per input (at 24 V)
Tip!
Detailed information about the terminal assignment for the extension board 3 can be found in the
corresponding Mounting Instructions!
