1.2.6 Linking of system blocks with DDS
The system blocks required must be explicitly linked to the project via the control configuration of the
DDS.
·
The control configuration is placed as an object in the
Resources tab in the Object organiser.
·
The control configuration lists all inputs and outputs including the identifiers of the
corresponding I/O variable, the absolute address and the data type of the I/O variable for
every linked SB.

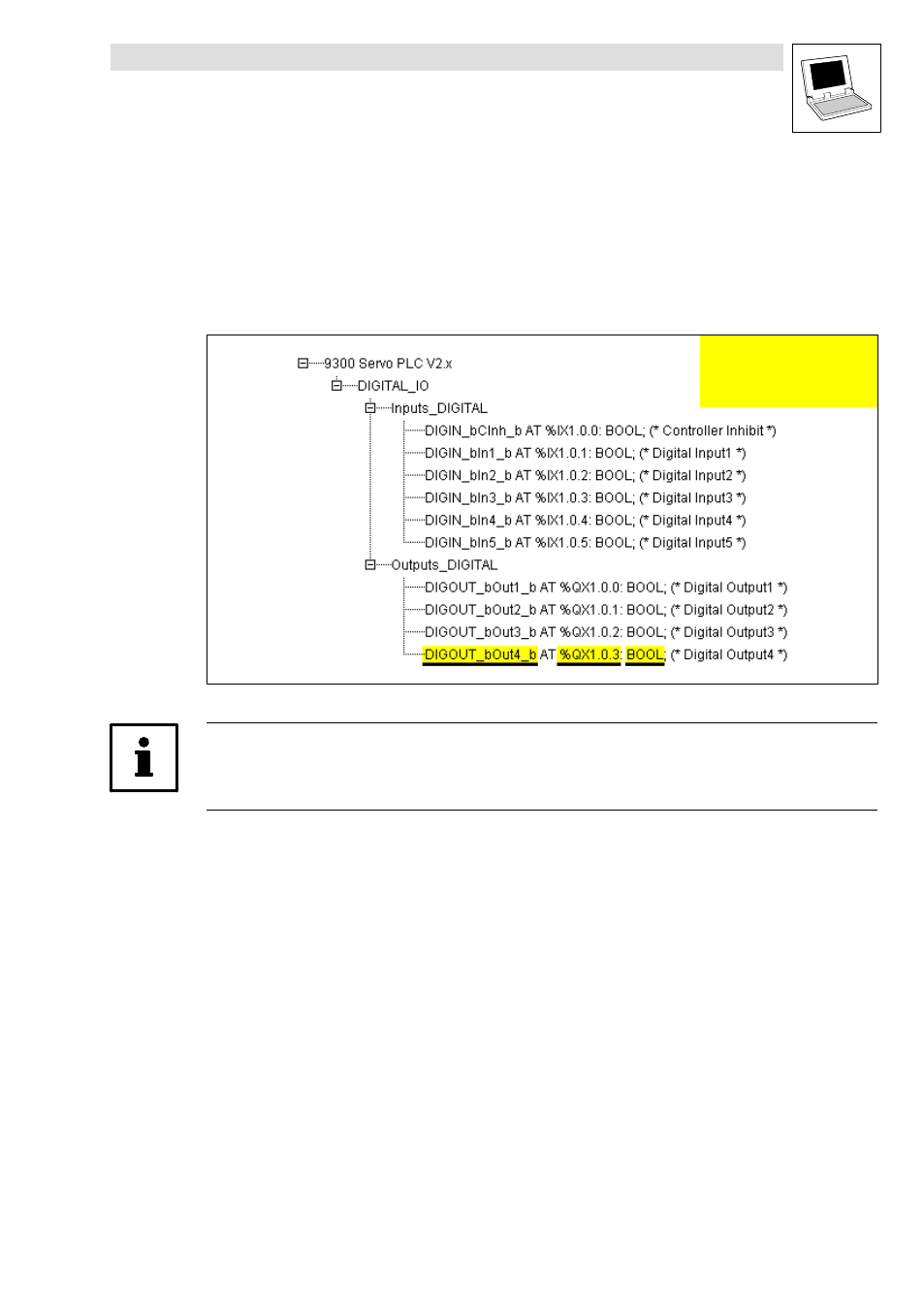

 ‚ ƒ
 Identifier of the I/O variable
‚ Absolute address
ƒ Data type of the I/O variable
Fig. 1−3 Example: Control configuration for 9300 Servo PLC with linked SB DIGITAL_IO
Tip!
The control configuration provides a context menu for adding and deleting SBs which can be
activated via the right mouse key.
