Drive PLC
System blocks − Extension Board 2
6−1
L
DrivePLC DE 6.0

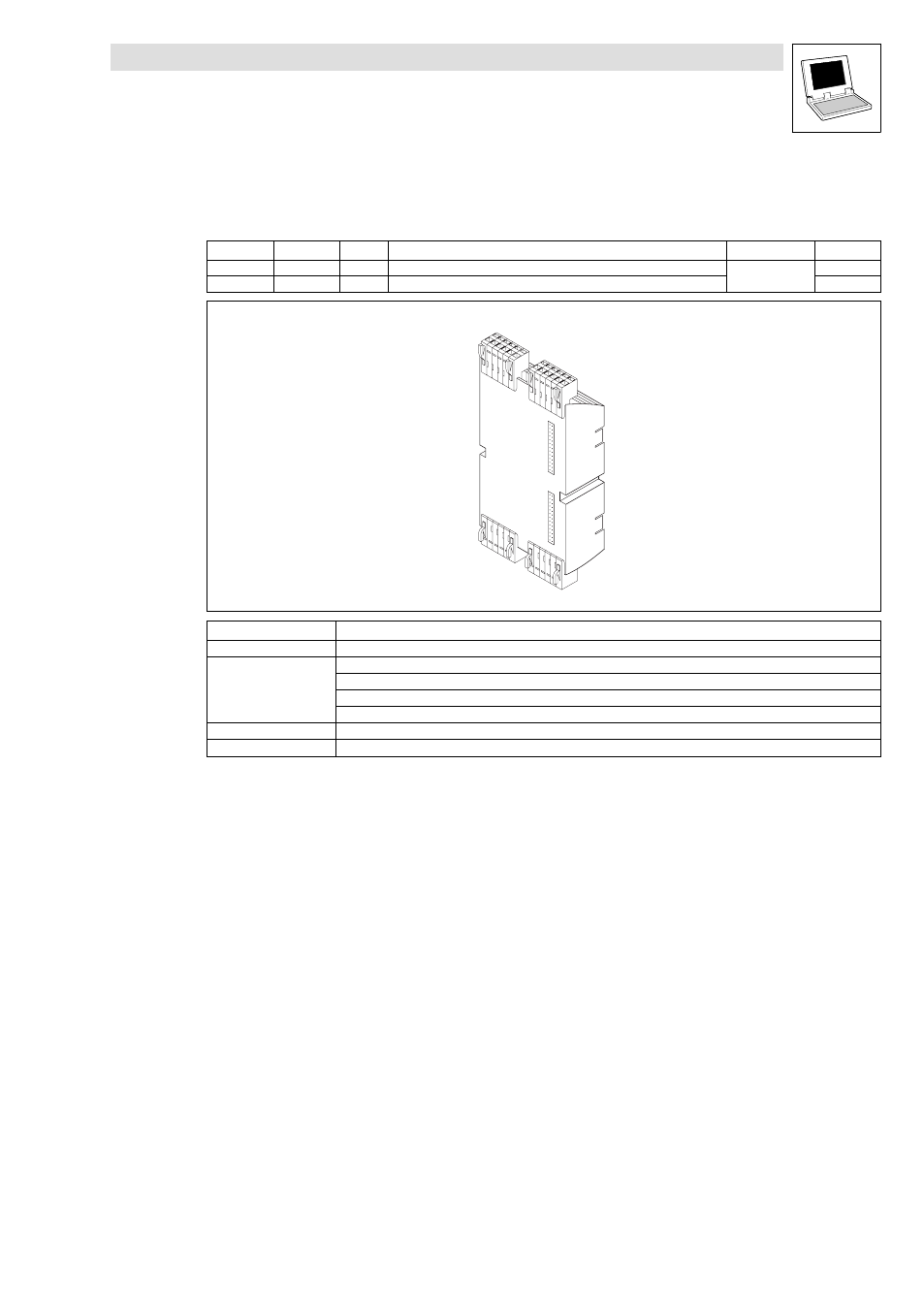

6 Extension board 2
The internal extension board 2 extends the Drive PLC by the following inputs and outputs:
Signal type Number SB Node number Info
Inputs Digital 14 DIGITAL_IO_EB2 W Inputs_DIGITAL_EB2 (DIGIN_EB2)
3
^ 6−2
Outputs Digital 8 DIGITAL_IO_EB2 W Outputs_DIGITAL_EB2 (DIGOUT_EB2) ^ 6−3
X1
X2
X3
X4
Terminal Assignment
X1 Digital outputs O5 ... 010
X2 Digital inputs I21, I22
Digital outputs O11, O12
GND, reference potential
DC supply voltage (switched via X1/+O24 at the Drive PLC)
X3 Digital inputs I15 ... I20
X4 Digital inputs I9 ... I14
