Drive PLC
System blocks − Extension Board 1
5−1
L
DrivePLC DE 6.0

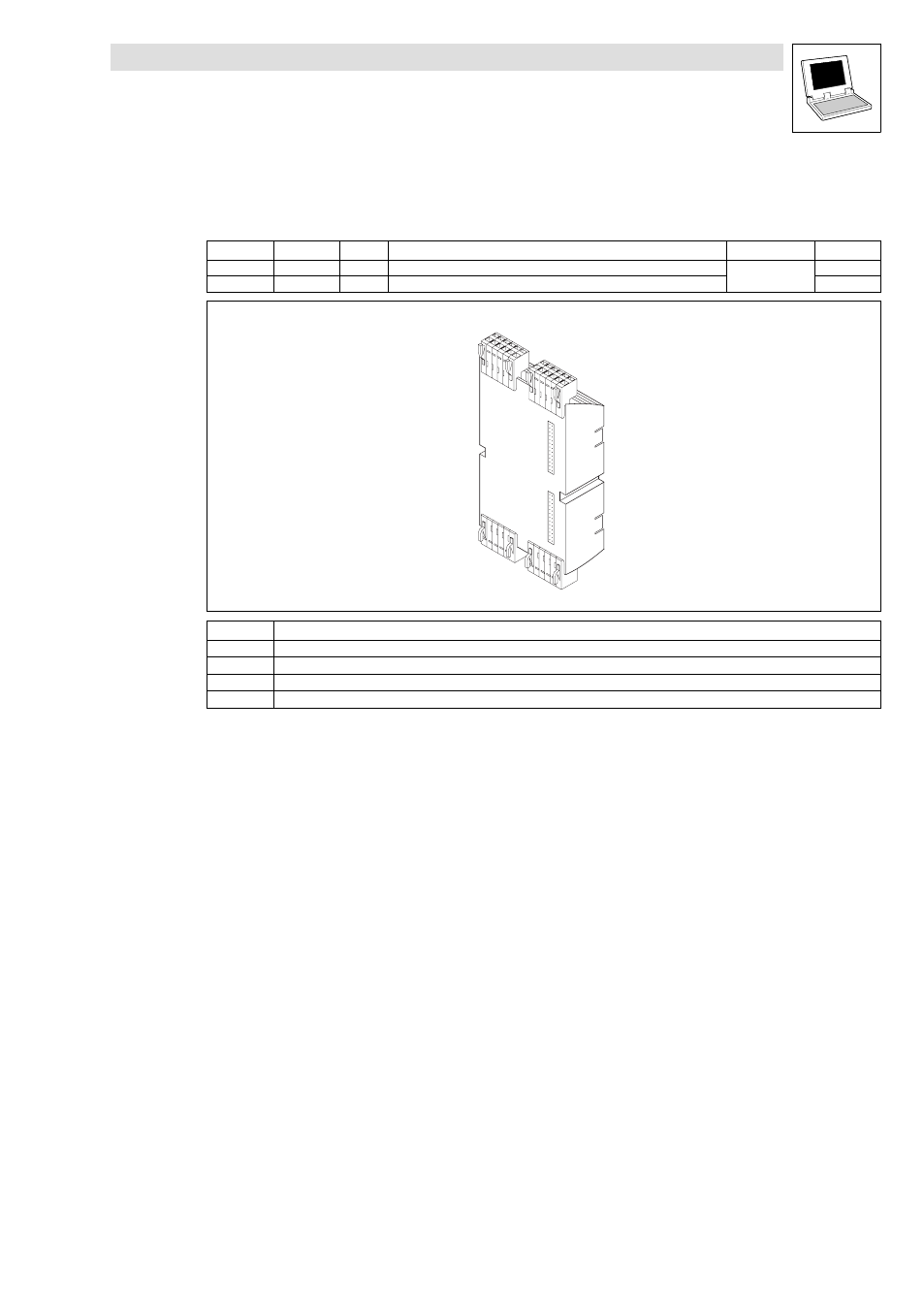

5 Extension board 1
The internal extension board 1 extends the Drive PLC by the following inputs and outputs:
Signal type Number SB Node number Info
Inputs Digital 6 DIGITAL_IO_EB1 W Inputs_DIGITAL_EB1 (DIGIN_EB1)
2
^ 5−2
Outputs Digital 6 DIGITAL_IO_EB1 W Outputs_DIGITAL_EB1 (DIGOUT_EB1) ^ 5−3
X1
X2
X3
X4
Terminal Assignment
X1 GND, reference potential
X2 DC supply voltage (switched via X1/+O24 at the Drive PLC)
X3 Digital outputs O5 ... O10
X4 Digital inputs I9 ... I14
