2.6.2

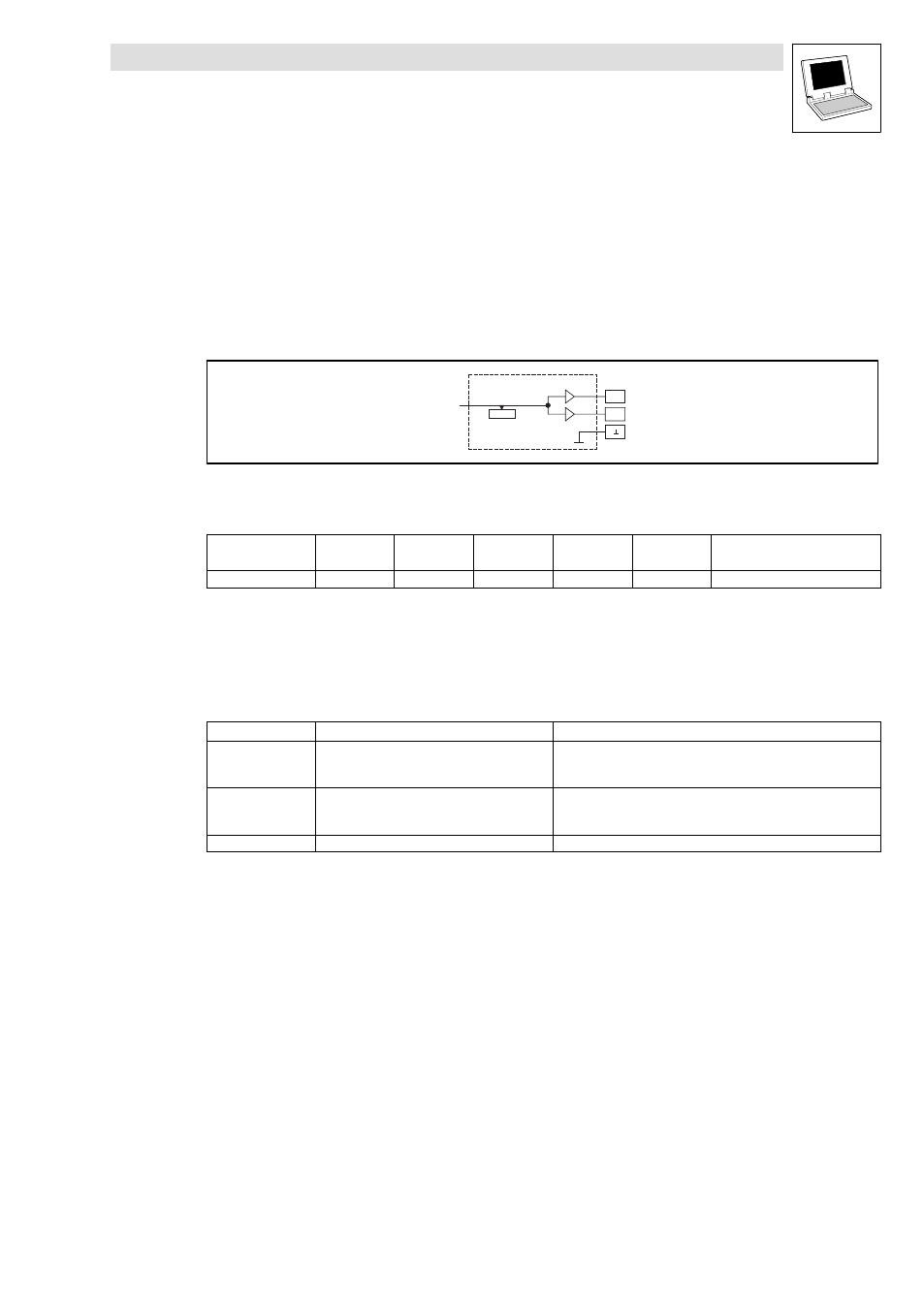

Outputs_ANALOG1 (analog output)
You can use this SB as a monitor output. You can output internal analog signals via
·
terminal AOV as voltage signals and
·
terminal AOI as current signals
and use them, e.g. as display or setpoint values for following drives.
AOV
A
AOUT1_nOut_a
Outputs_ANALOG1
C0434
AOI
Fig. 2−11
Outputs_ANALOG1
System variables
Variable
Data type
Signal type
Address
Display
code
Display
format
Notes
AOUT1_nOut_a
Integer
analog
%QW11.0
C0434
dec [%]
Analog output 1
Function
·
A voltage of 10 V is output at terminal AOV, if the signal on AOUT1_nOut_a = 16384 = 100 %
·
A current of 20 mA is output at terminal AOI, if the signal on AOUT1_nOut_a = 16384 = 100 %
Terminal assignment
Terminal
Use
Data
AOV
Analog output 1 (voltage signal)
Level:
Resolution:
Normalisation:
−10 V ... +10 V (max. 2 mA)
10 bits + sign
±10 V º ±16384 º ±100 %
AOI
Analog output 1 (current signal)
Level:
Resolution:
Normalisation:
−20 mA ... +20 mA
10 bits + sign
±20 mA º ±16384 º ±100 %
A
^
Internal ground, GND
−
