42 User Manual
Info Tree and Expanded Info page
The upper side of the page contains the Info Tree and the Lower side contains the
expanded information. While moving the cursor through the Info Tree, all the
relevant information of the selected object is shown on the lower part of the page.
By pressing [CLEAR] the page is closed. If the information shown on the Lower
part of the page exceeds the page size, you may scroll the page using [Page Dn] 1 .
Use [Home] 1 to get back to the first page. When the selected object is a Tide
Station, by pressing [ENTER] the Tide page is shown.
NOTE 1 F
OR SEAWAVE 3 , press [4, Page Dn] and [3, Home].
Quick Info on Lakes
Upon viewing the chart of a lake, you will click on to query the available informa-
tion immediately displayed with many details. For example, see the following
picture:

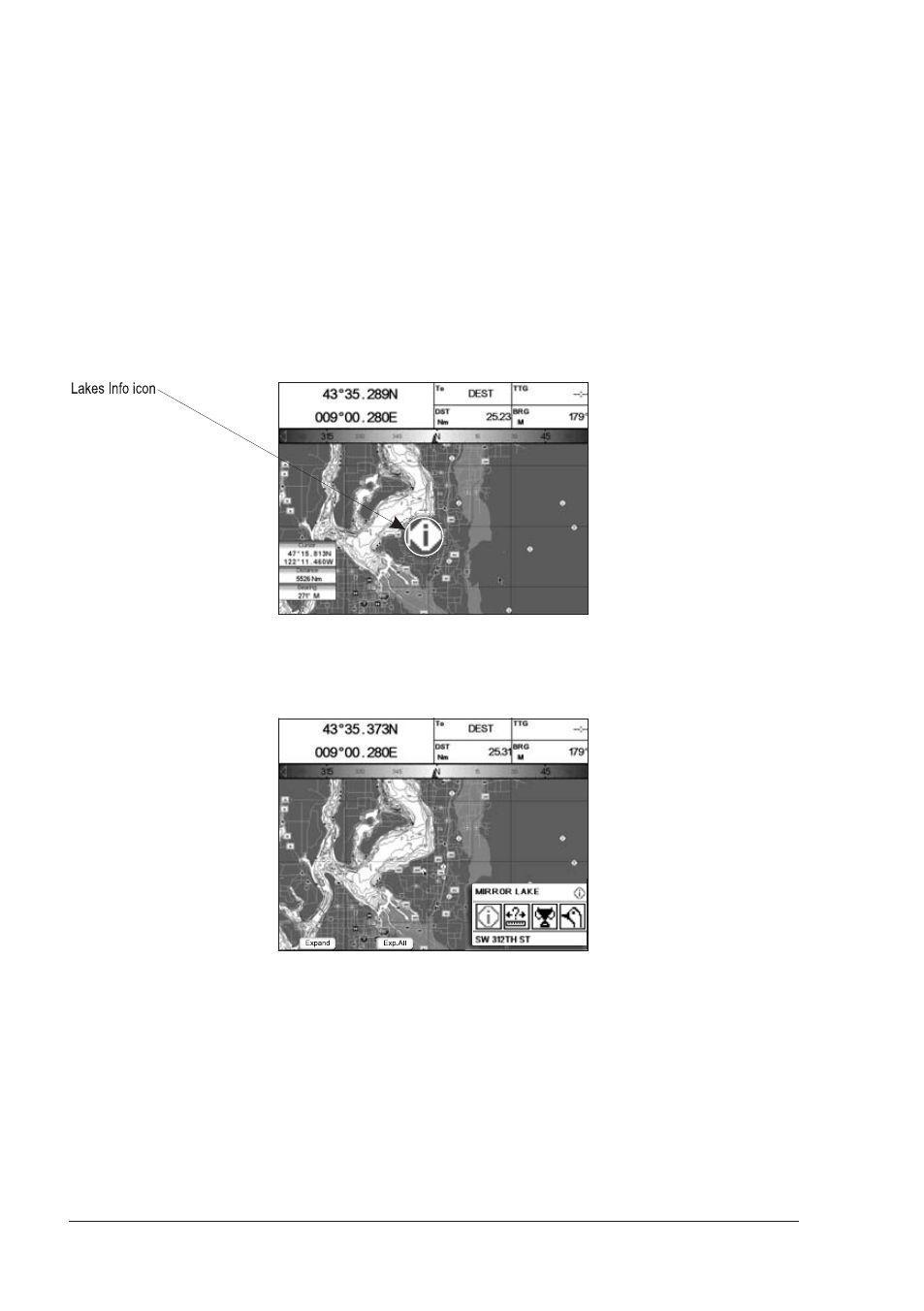

Fig. 2.6c - Example of Lakes info
When the cursor is placed over the icon, the icons of the available services are
shown:
Fig. 2.6d - Quick Info: available services
If you press [Expand] 1 all available information about the cartographic point
under the cursor will be shown. See the next paragraph.
NOTE 1 F
OR SEAWAVE 3 , press [1, Expand].
Full Info on Lakes
The following is an example of Full Info on Lakes:
