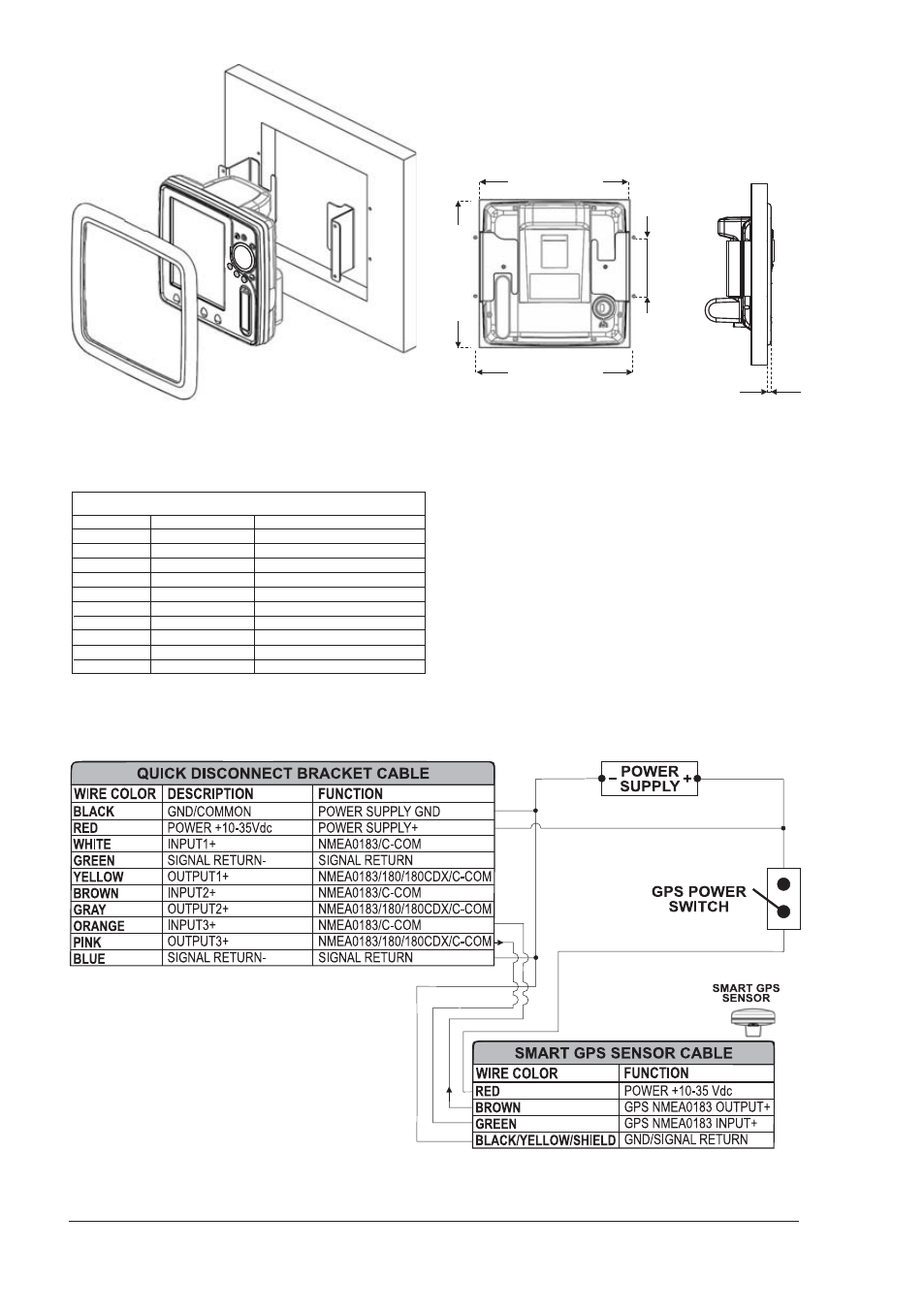

Flush mount installation
EXTERNAL WIRING
POWER SUPPLY GND
POWER SUPPLY+
NMEA0183/C-COM
SIGNAL RETURN
NMEA0183/180/180CDX/C-COM
NMEA0183/C-COM
NMEA0183/180/180CDX/C-COM
NMEA0183/C-COM
NMEA0183/180/180CDX/C-COM
SIGNAL RETURN
QUICK DISCONNECT BRACKET CABLE
DESCRIPTION WIRE COLOR
BLACK
RED
WHITE
GREEN
YELLOW
BROWN
GRAY
ORANGE
PINK
BLUE
GND/COMMON
POWER+ 10-35Vdc
INPUT 1+
SIGNAL RETURN-
OUTPUT 1+
INPUT 2+
OUTPUT 2+
INPUT 3+ (*)
OUTPUT 3+ (*)
SIGNAL RETURN-
FUNCTION
(*) Available on Chart Plotter with External GPS
External Wiring
TYPICAL CONNECTIONS
GPS Connection on Port 3 for SW501e
