121 User Manual
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
Quick Disconnect Bracket
♦
AUX IN I/O cable 1,5 mt/5.9 feet
♦
Video Input cable
♦
Chart plotter's protective cover
♦
Fuse 3.15 Amp. + fuseholder
♦
User Manual
♦
Flush mounting kit (O
PTIONAL
) + cutting template
♦
Smart DGPS WAAS Receiver with cable 15 mt/45 feet
(SW701ce)

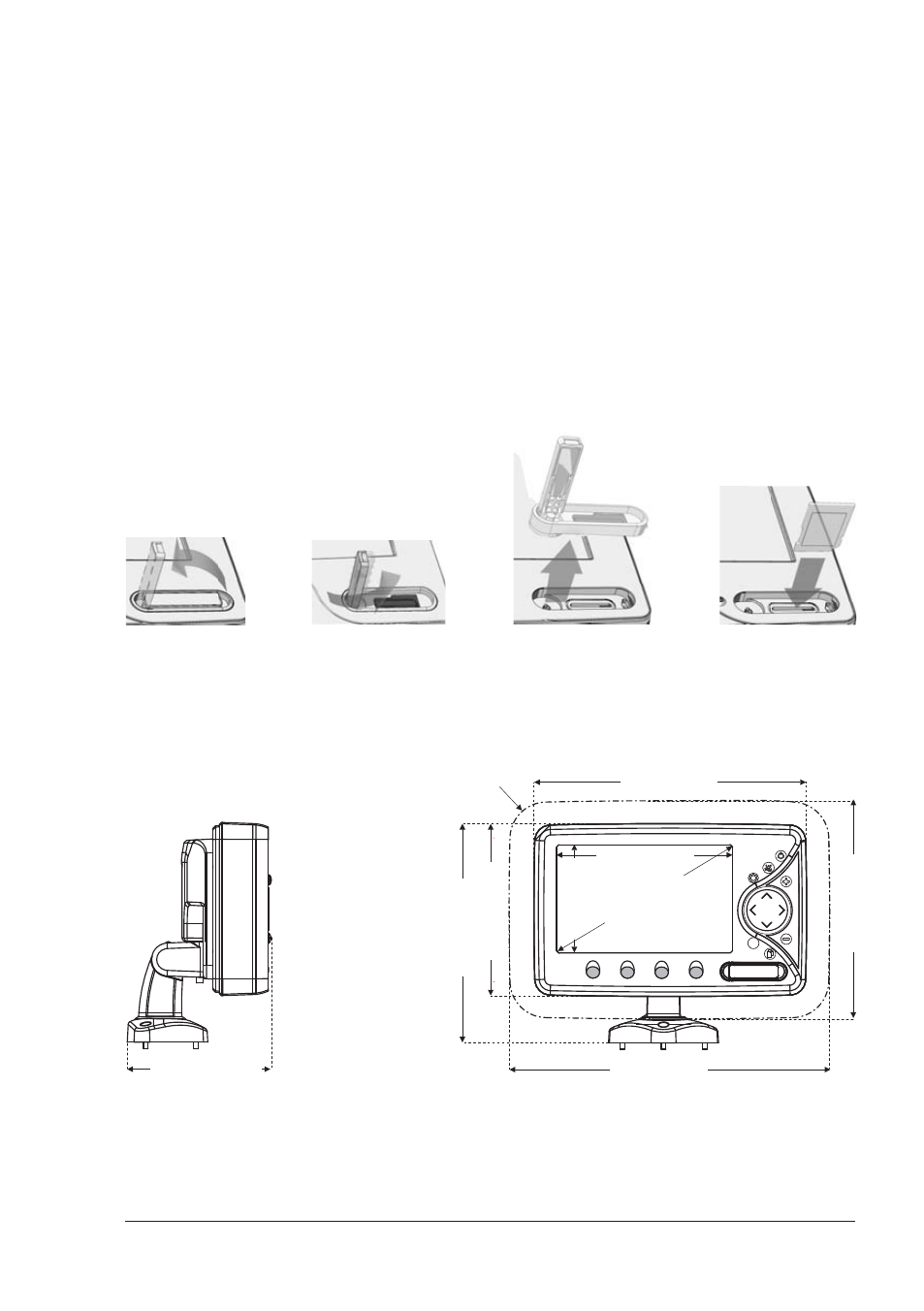

INSERTING/REMOVING PROCEDURE
Inserting the MEDIA
Open the door. Hold the MEDIA by the short side. Gently push the MEDIA into the
slot; press the MEDIA in as far as it will go to hold fixed into the slot.
Removing the MEDIA
Open the door, press in on the MEDIA and remove the MEDIA out of the slot.
CHART PLOTTER DIMENSIONS
PROTECTIVE
COVER 244mm [9,6”]
154
mm [
6
,1
”]
196
mm [7,7
”]
154mm [6,1”]
92
mm
[3
,7”]
17
9mm
[7,
1”]
280mm [11”]
19
0mm [7,
5
”]
127.5mm [5”]
C
