Alarms Handling (Auto Off, Arrival Alarm, XTE Alarm, Anchor Alarm,
Depth Alarm, HDOP Alarm, Heading Alarm, Grounding Alarm, External
Alarm)
♦
Man OverBoard (MOB) to navigate back to a missing person or object
♦
C-Link and C-Weather Service
♦
R-B function
♦
Simulation Mode with cursor control
♦
Video Output option
NOTE 1 If Fish Finder/Radar connected.
TECHNICAL SPECIFICATIONS
♦
Power consumption : 0.25 A max, @ 12 V
♦
Interface : NMEA0183
♦
Autopilot Interface : NMEA-0180, NMEA-0180/CDX, NMEA-
0183
♦
Video Output : VGA compatible
♦
Display Resolution : 640x480 or 800x600 or 1024x768
pixels user selectable
♦
MEDIA : C-Card
♦
Cartography : C-MAP B
Y
J
EPPESEN
DATA MEDIA
♦
Operating temperature range : 32/131 °F (0/+55 °C)
♦
Memory : Non volatile with battery backup
♦
Keyboard : Silicon rubber, backlight
♦
Weight : 950 gr.
When the package containing the controller is opened for the first time after
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
External bracket
♦
Power supply and I/O (CBC0FS0804) I/O, cable CBC0FS0603
♦
AUX IN I/O cable 1,5 mt/5.9 feet (2 pcs)
♦
Video Output cable
♦
Fuse 1A (2 pcs) + cable fuse holder (2 pcs)
♦
User Manual
INSERTING/REMOVING PROCEDURE
Inserting the MEDIA
Hold the MEDIA by the short inclined side so that you can see the C-MAP B
Y
J
EPPESEN

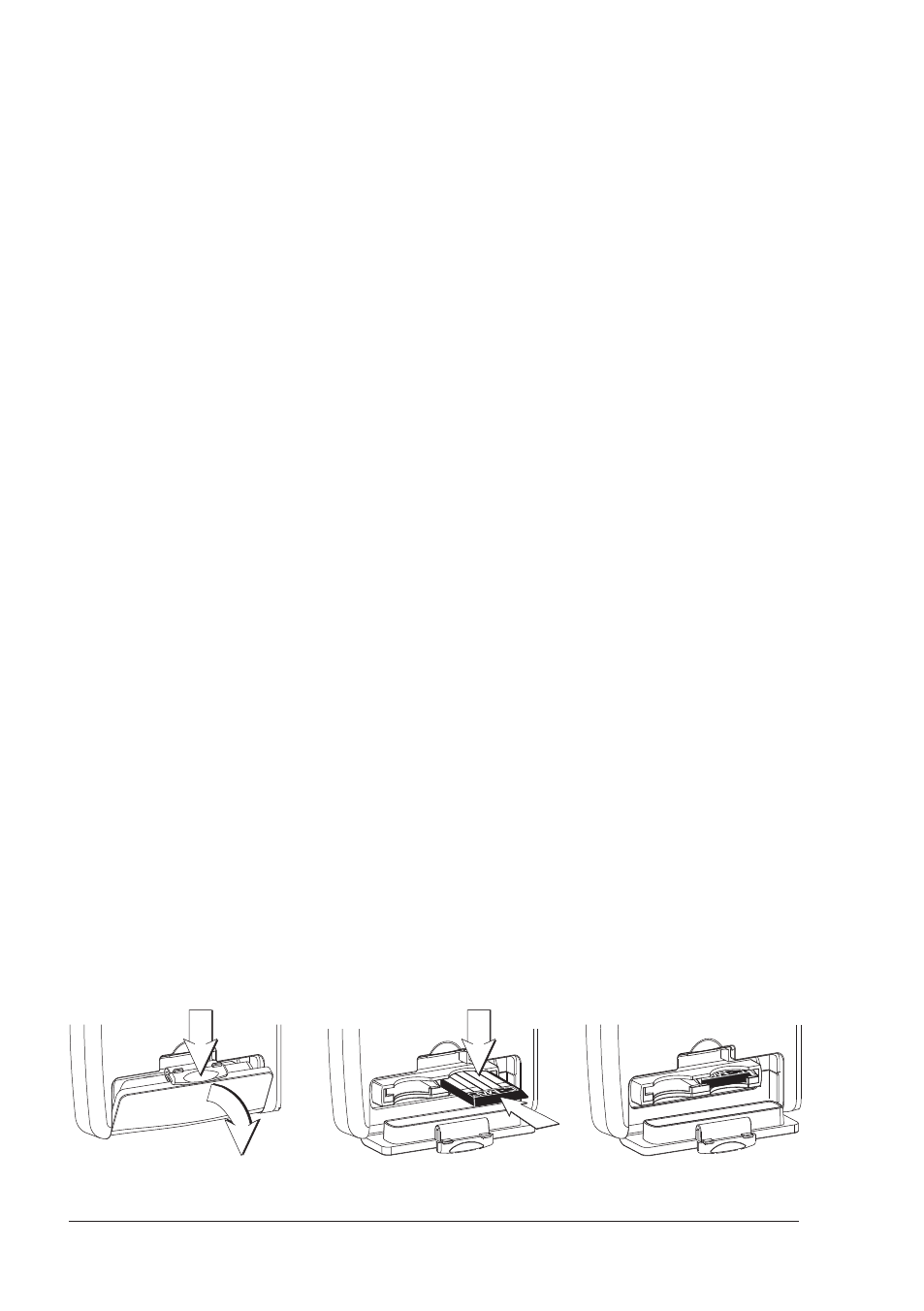

label. Open the MEDIA slot's door pressing (1) to the bottom (2). Gently
push the MEDIA into one of the two slots; push the MEDIA in as far as it will go
(3), then move it to the bottom (4) to hold fixed into the slot.
dat e cod e
ser .n.
cla ss
1
2
dat e cod e
ser.n .
cla ss
4
3
