Seiwa SW701i SW701e - Manual (Page 114)

116 User Manual
5mm [0.2”]
260mm [10.2”]
1
00mm [
3
.9
”]
250mm [9.8”]
158
mm [
6
.2
”]

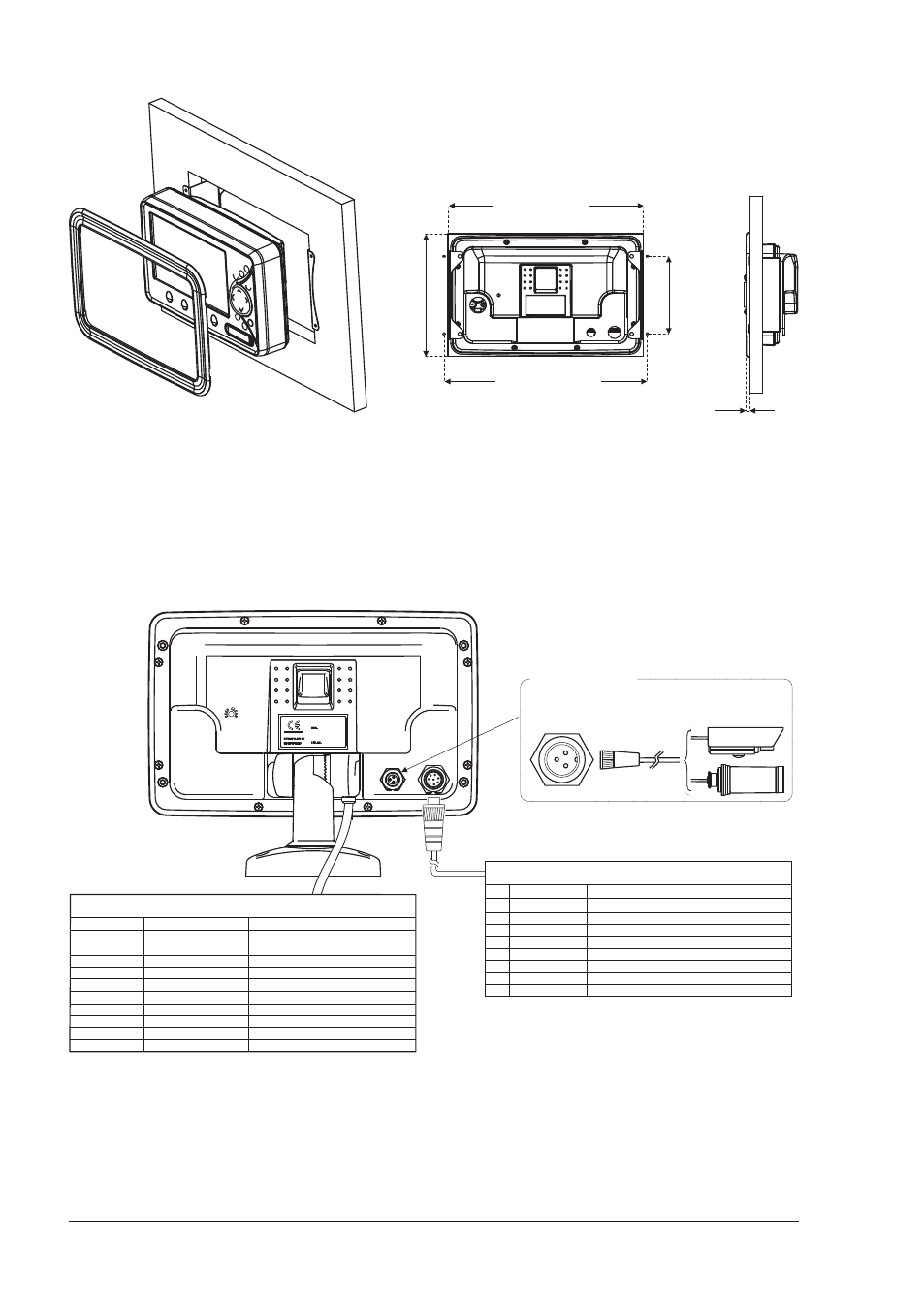

Flush Installation
EXTERNAL WIRING
GND COMMON
POWER OUTPUT+ (10-35 Vdc)
INPUT 4+
GND
OUTPUT 5+
OUTPUT 4+
INPUT 5+
EXT. ALARM SIGNAL (to GND when ON) BLACK
RED
WHITE
GREEN
GRAY
YELLOW
BROWN
BLUE
PIN
1
2
3
4
5
6
7
8
WIRE COLOR FUNCTION
AUX-IN I/O CABLE
1
2
3
CAM CONNECTORS
PIN-OUT
(ON UNIT)
1=GND COMMON
2=POWER+ (10-35Vdc)
3=SIGNAL
VIDEO INPUT
DESCRIPTION WIRE COLOR
BLACK
RED
WHITE
GREEN
YELLOW
BROWN
GRAY
ORANGE
PINK
BLUE POWER SUPPLY GND
POWER SUPPLY+
NMEA0183/C-COM
SIGNAL RETURN
NMEA0183/180/180CDX/C-COM
NMEA0183/C-COM
NMEA0183/180/180CDX/C-COM
NMEA0183/C-COM
NMEA0183/180/180CDX/C-COM
SIGNAL RETURN GND/COMMON
POWER +10-35Vdc
INPUT1+
SIGNAL RETURN-
OUTPUT1+
INPUT2+
OUTPUT2+
INPUT3+ (*)
OUTPUT3+ (*)
SIGNAL RETURN-
FUNCTION
QUICK DISCONNECT BRACKET CABLE
(*) Available on Chart Plotter with External GPS
External Wiring
