In the following figures examples of pages are shown. Please notice that for some
chart plotters the boxes position may differ depending on the configuration chosen.
Bearing
(Fix to Destination)
Course Over Ground
- this icon
is shown if WAAS
correction is received 2 icon: Fix Status nd
- this icon is shown if
fix is not received
- this icon is shown
if fix is received
1 icon:
Charting or
Navigation st
...
......
Chart Scale
Cross Track Error
Velocity Made Good
Depth from Transducer
Speed Over Ground
Drift speed
Fix Coordinates Destination ID
Time To Go
(Fix to Destination)
Distance To Go
(Fix to Destination)
Compass Heading Water Temperature
Date & Time
Drift direction
Course to steer
Steering
Electronic bearing line &
Variable Range Maker
Auxiliary Temperature
Visual COG Bar
Ship Speed relative to the water
Radar
Speed Through Water
Distance the vessel has travelled
since the trip log was reset
Total distance the vessel has travelled
Track status, free memory
- this icon is shown
if fix a Differential
GPS signal is received
W A A S

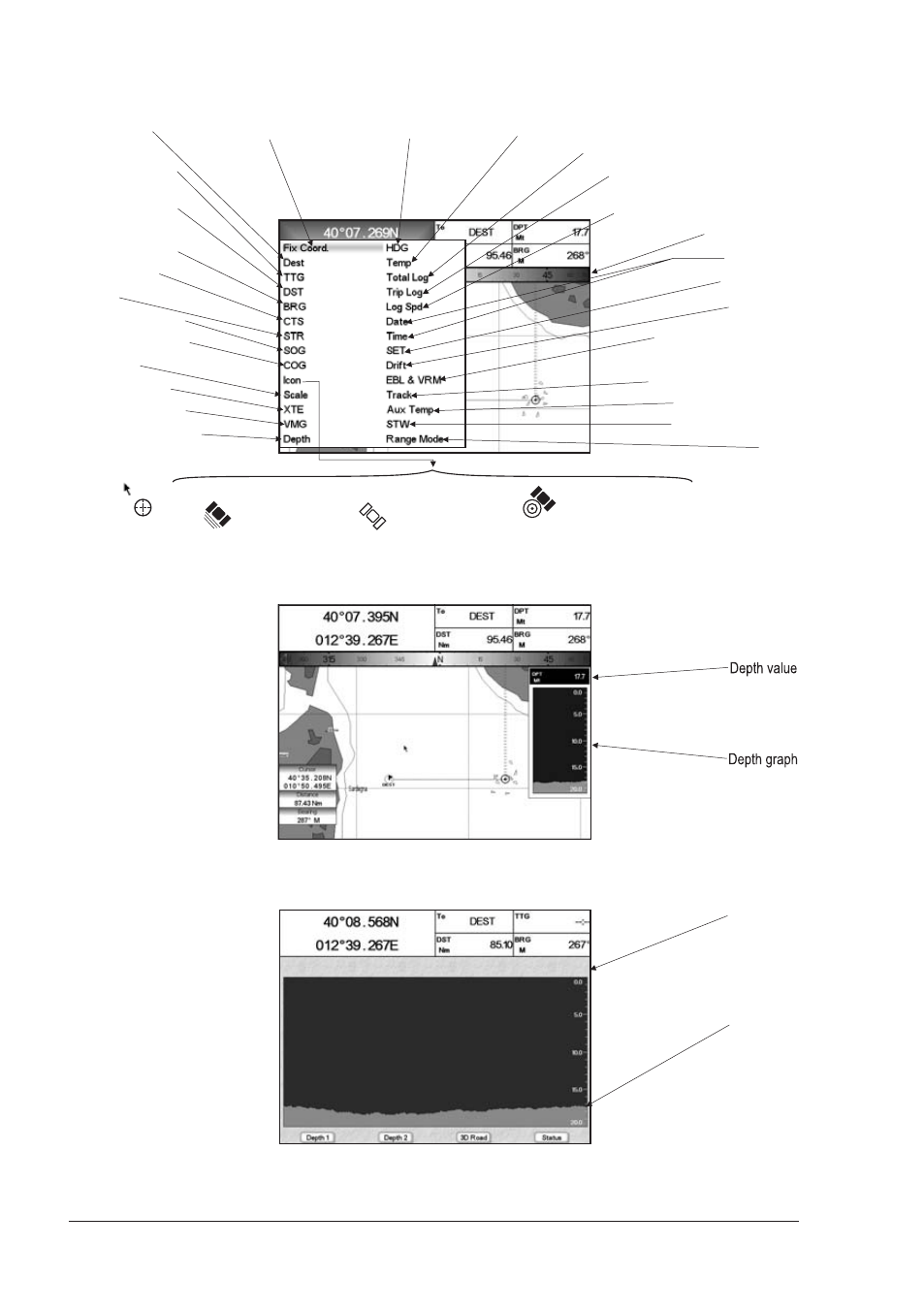

Fig. 1.10a - Example of Chart Display page
Fig. 1.10b - Example of Depth Graph page
Depth value
Depth graph
Fig. 1.10c - Example of Depth Graph Full page
