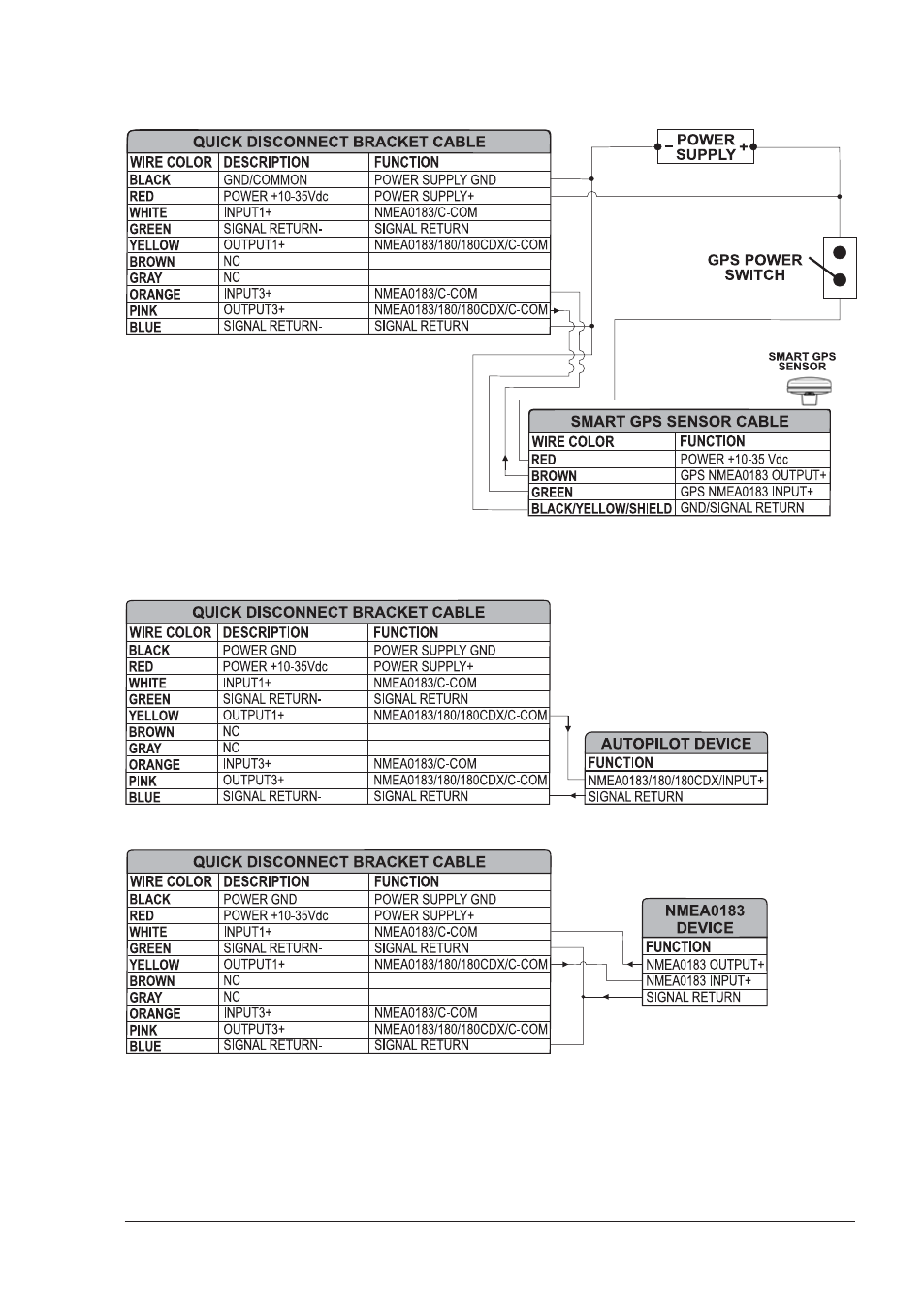

TYPICAL CONNECTIONS

GPS Connection on Port 3 for SW701ce

Autopilot Connection on Port 1

External NMEA Connection on Port 1
