19 User Manual
pressing the associated soft key the relative function is executed. By pressing
[CLEAR] the four soft key labels disappear.
NOTE 1 N
OT
A
VAILABLE
F
OR SEAWAVE 3 .
SEAWAVE 3 :
1.1.6 Function Keys
When the cursor is placed over any User Point or any cartographic object, a
window containing the information about the selected object is shown on a variable
location of the screen (not covering the cursor icon). At the same time some
Function Keys (up to five) are shown on the bottom of the page. The Function
Keys are associated to the function that can be applied to the selected object.
Each Function Key shows a number and the name of the function.
For example when the cursor is placed over a Mark, the information window with
Coordinates, Name, Icon and all other Mark information is shown. The following
Functions Keys are shown on the bottom of the map display.

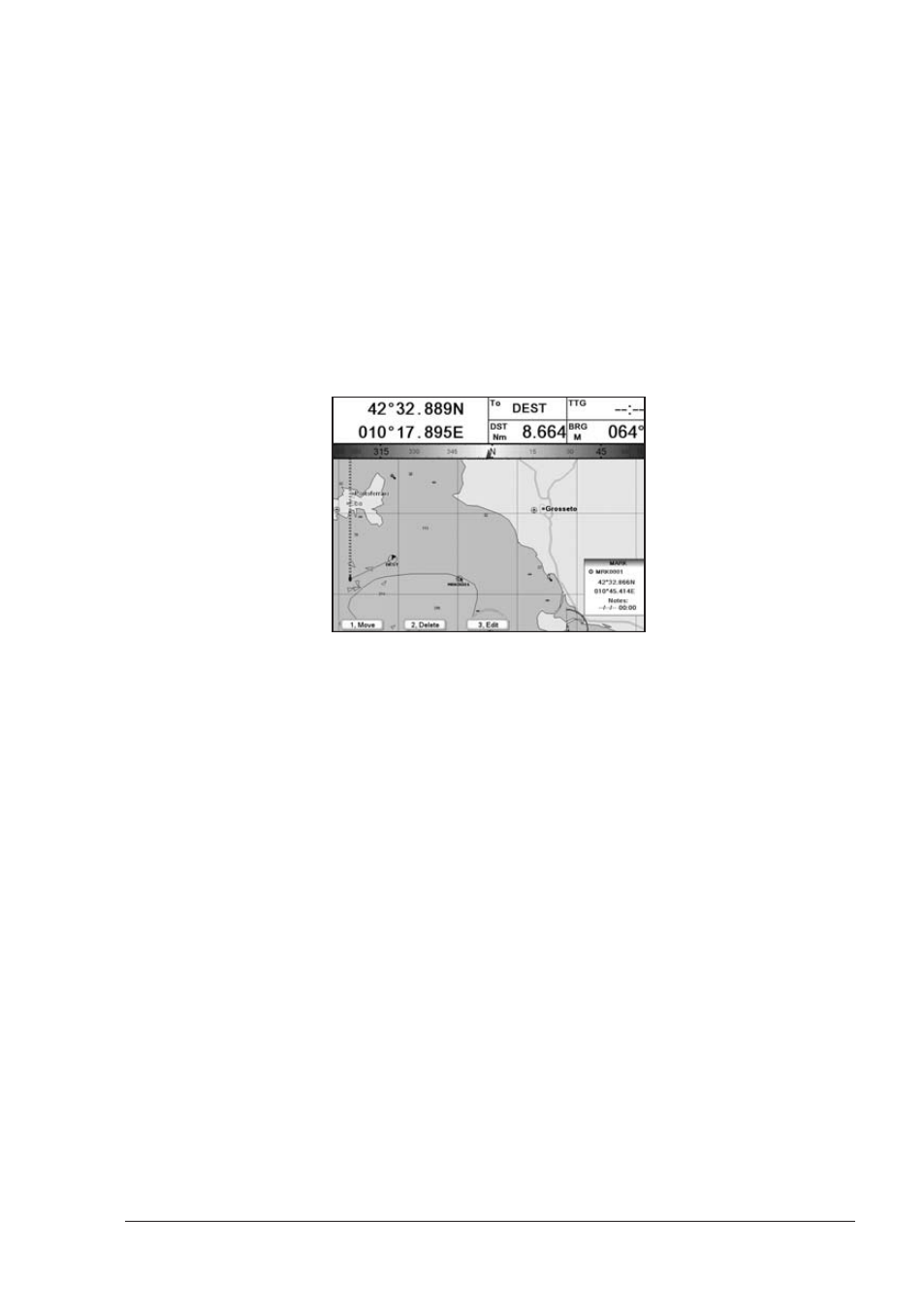

Fig. 1.1.6 - Example of Function Keys
Pressing any numerical keys from [1] to [5], the function associated to the selected
number is executed. Otherwise pressing any numerical key not active (not
associated to any function) 3 beeps will be sounded and the Function Keys are
kept shown. Pressing [CLEAR] the Functions Keys are removed from the screen,
pressing any other key the Functions Keys will be closed and the function associated
to the pressed key will be executed.
1.1.7 Software/Function Keys Customization
When the soft keys labels are shown the user can customize them. Pressing and
holding down any of the soft key shows a pop-up window on the top of the soft
key pressed that contains all possible data pages assignable to the soft key pressed.
Only For SEAWAVE
3 :
In all data pages the user can customize the Function Keys. Pressing and holding
down for 1 second the numeric key [1], [2], [3], [4], [5] it will be possible to
assign a different selection to the relative Function Key.
Move the cursor key up/down to place the selector on the desired item; move the
cursor key to the right or press [ENTER] to set the selected item; move the
cursor key to the left or press [CLEAR] to close the pop-up window.
The possible choices are:
♦
CHART [Chart] (Chart Display page)
♦
NAVIGATION [Nav Data] (Navigation Data page)
