AT-WA7500 User’s Guide
65
To set frame type filters

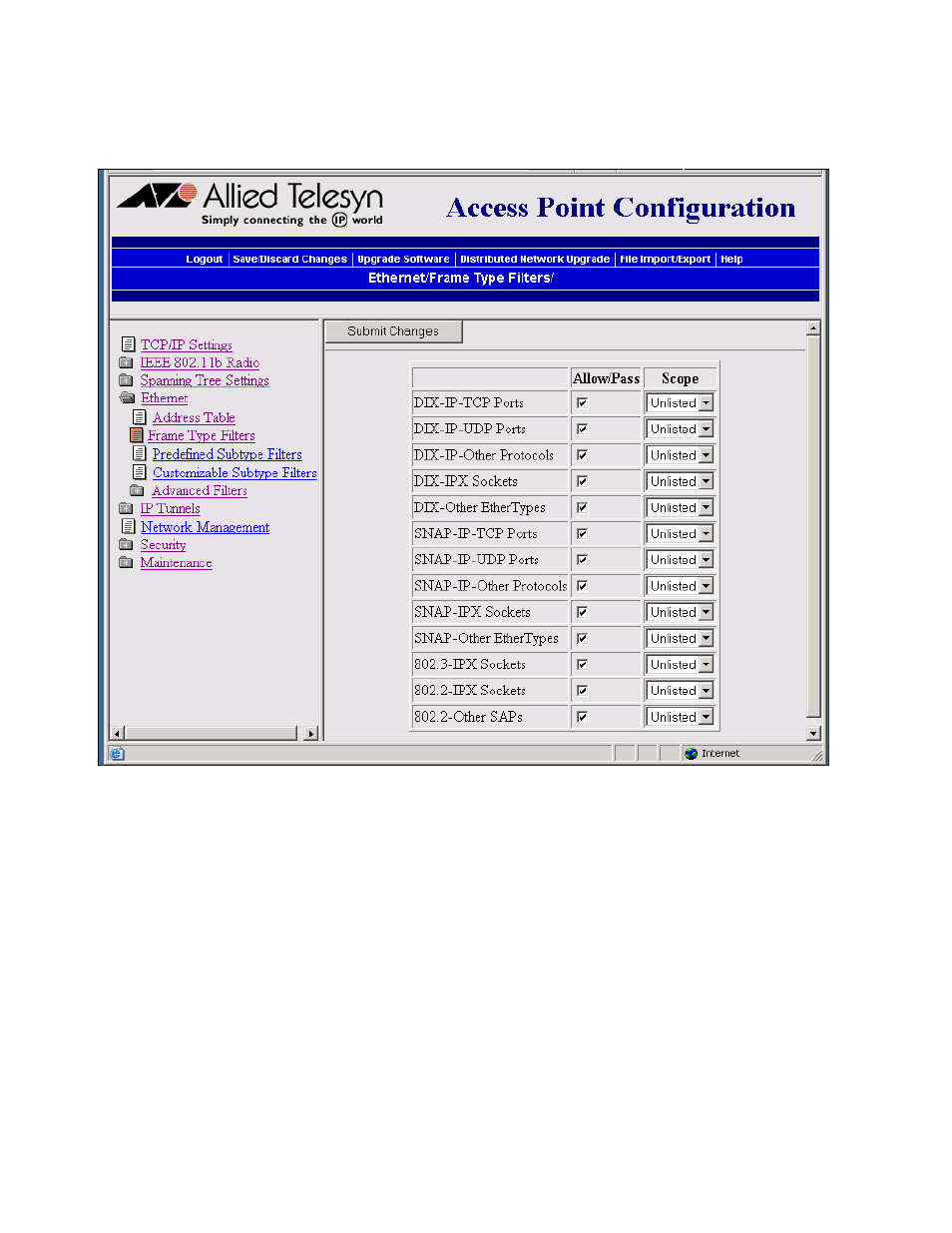

1. From the Main Menu, select Ethernet then Frame Type Filters. The
Frame Type Filters screen appears.
2. For each frame type field, check or clear the check box to configure if
the frame types are passed or are dropped. If you check the check
box, the frame type is allowed to pass. For each frame type field, set
the Scope field to Unlisted or All. The Frame Type field parameters are
described below:
DIX IP TCP Ports
DIX IP UDP Ports
SNAP IP TCP Ports
SNAP IP UDP Ports
Primary Internet Protocol Suite (IP) transport protocols.
DIX IP Other Protocols
SNAP IP Other Protocols
IP protocols other than TCP or User Datagram Protocol (UDP).
