5 - Configuring the Spanning Tree
134
Example 1 The root (AP1), AP3, AP5, and AP6 service only wireless end devices.
These access points need to pass IP traffic, but not pass IPX traffic that
does not need to be forwarded to the primary or secondary LAN.

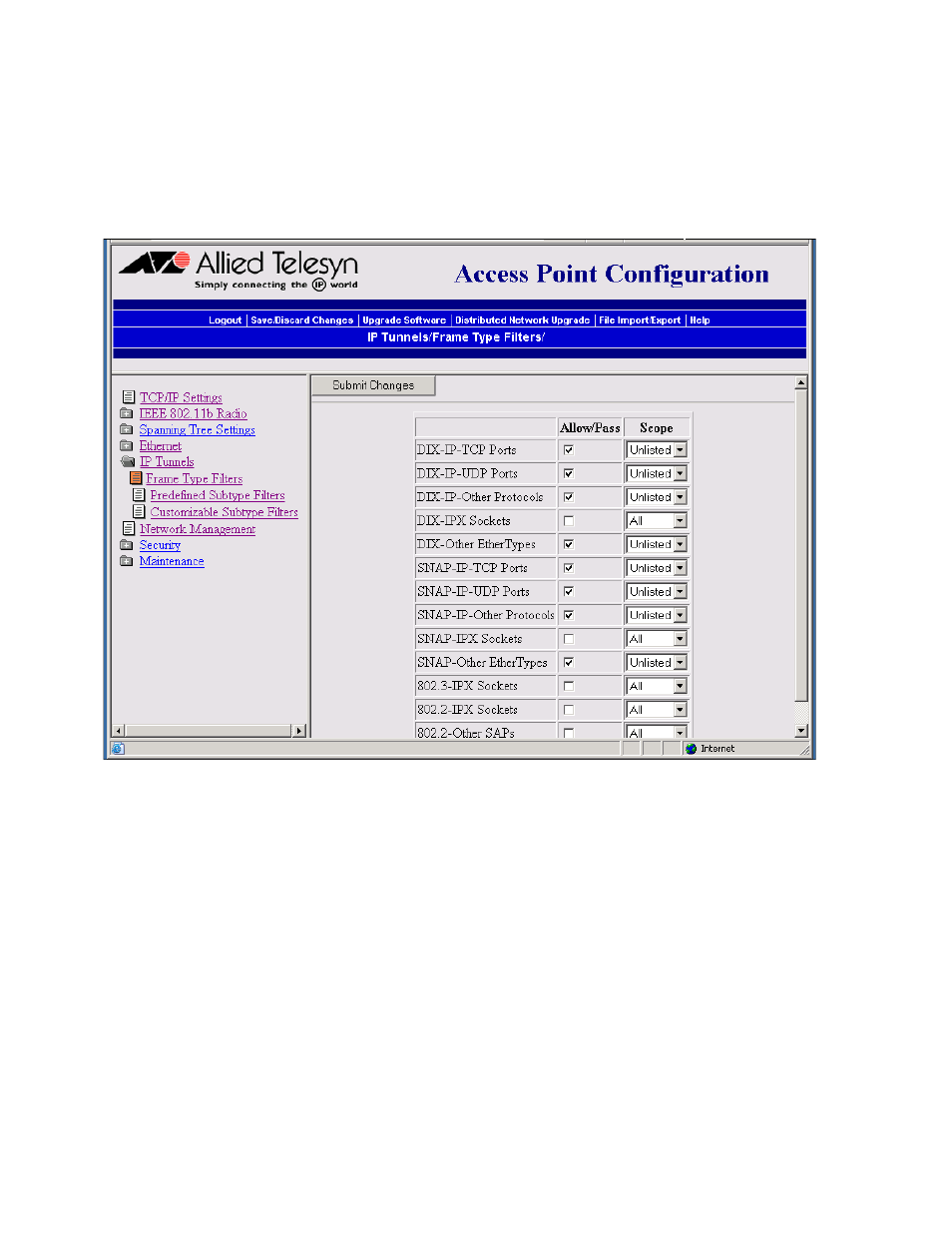

For this example, set these options on the Ethernet Frame Type Filters
screen. No subtype filters are needed.
Example 2 AP2 and AP4 (designated bridge) service end devices and the IP host
and IPX host on the secondary LAN. Also, these access points pass IPX
traffic.
The IPX router in this network periodically sends IPX RIP frames for
coordinating with other routers. These do not need to be forwarded to
the secondary LAN, because the secondary LAN does not contain a
router.
To filter the IPX RIP frames, you need to configure subtype filters. This
example sets filters for three different cases: DIX, 802.2, and 802.3 SNAP
frames. In many actual networks, only one type of filter is required,
because all stations are configured using one of the three options.
