5 - Configuring the Spanning Tree

124

Configuring IP Tunnels

For guidelines, see About IP Tunnels on page 116.

To configure the IP Tunnels screen

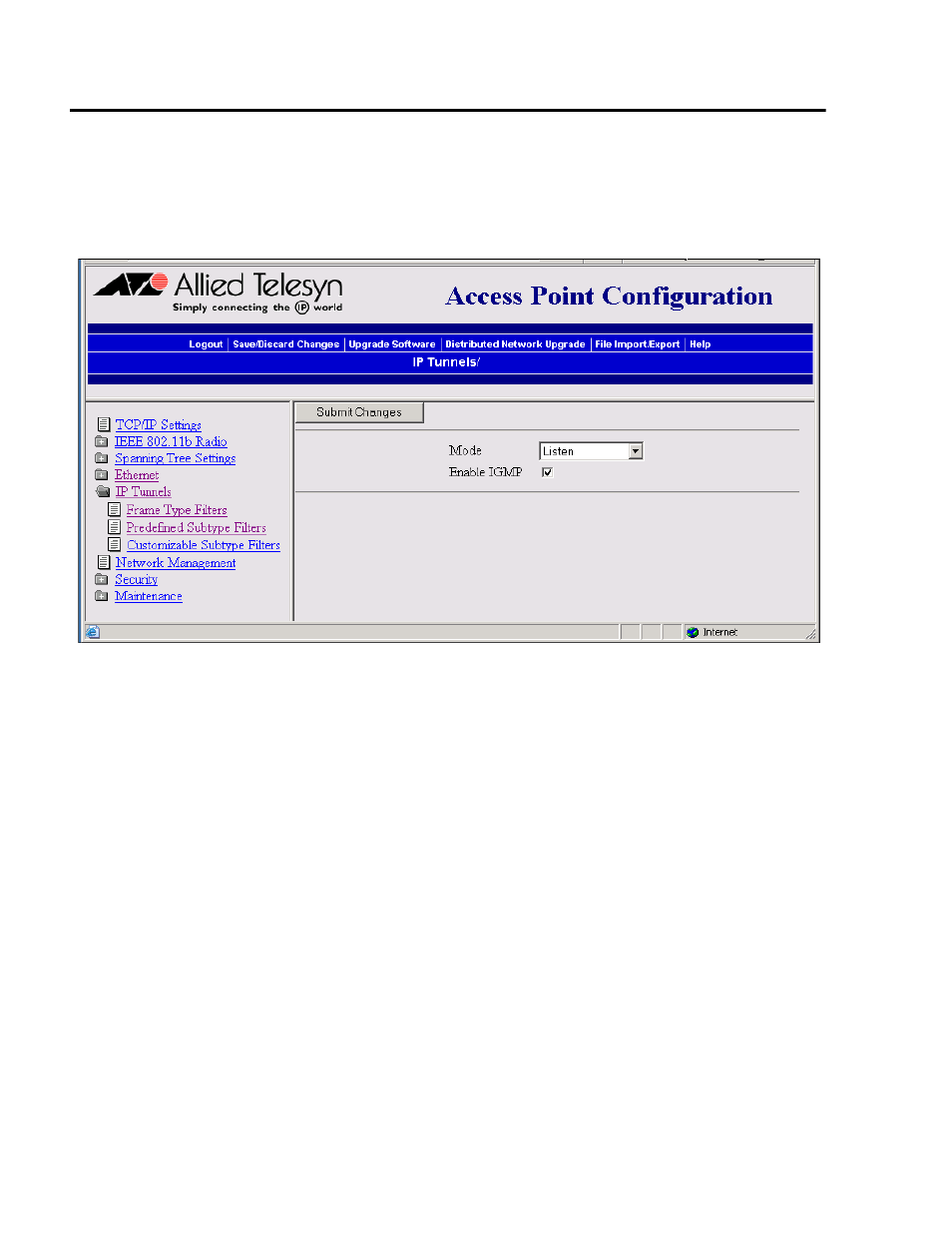

1. From the Main Menu, select IP Tunnels. The IP Tunnels screen

appears.

2. Configure the IP Tunnels parameters. These parameters are described

below:

Mode

Choose Originate if Root to let the root access point and root
candidates originate the IP tunnel if they are functioning as the
root access point for the network.

Choose Listen to configure access points that are designated
bridges or designated bridge candidates for their remote IP
subnets to serve as the endpoint of an IP tunnel.

Choose Disabled to disable the IP tunnel port.

Allow IP Multicast (Originate if Root)

Determines if the root access point should forward IP multicast
frames through its IP tunnels. Check this check box if you have a
DHCP server issuing TCP/IP information to end devices.

Enable IGMP (Listen)

Determines if IGMP is enabled or disabled.
