10.2 Saving the current position
(Preset)
10.2.1 Quick save
Using the control keyboard it is possible to save the
current position (for further information, refer to the
manual of the keyboard in use).
During the saving stage, it is possible to change the
speed at which Preset is reached using keys Focus Far
/ Focus Near and to change the waiting time using
keys Iris Open / Iris Close.
------------------------
SET PRESET
Focus to change speed
Iris to change dwell
Joystick to exit
------------------------
Speed : 100deg./s
Dwell : 5s
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Fig. 95
10.2.2 Saving from the Menu
Refer to "9.6.4.3 Preset Menu", page 34.
10.3 Recalling a position (Scan)
Using the control keyboard it is possible to recall a
previously saved position (for further information,
refer to the manual of the keyboard in use).
10.4 Enabling Patrol function
Using the control keyboard it is possible to enable
the automatic patrol (for further information, refer
to the manual of the keyboard in use or to Tab. 14,
page 47).
Disabling can be carried out by moving the joystick
or by recalling a different type of movement.
To configure the Patrol function, refer to "9.6.4.6 Patrol
Menu", page 36.
10 Instructions for normal
operation
h Direct and prolonged shooting of the
sun by the thermal camera can cause
irreparable damage to its sensor.

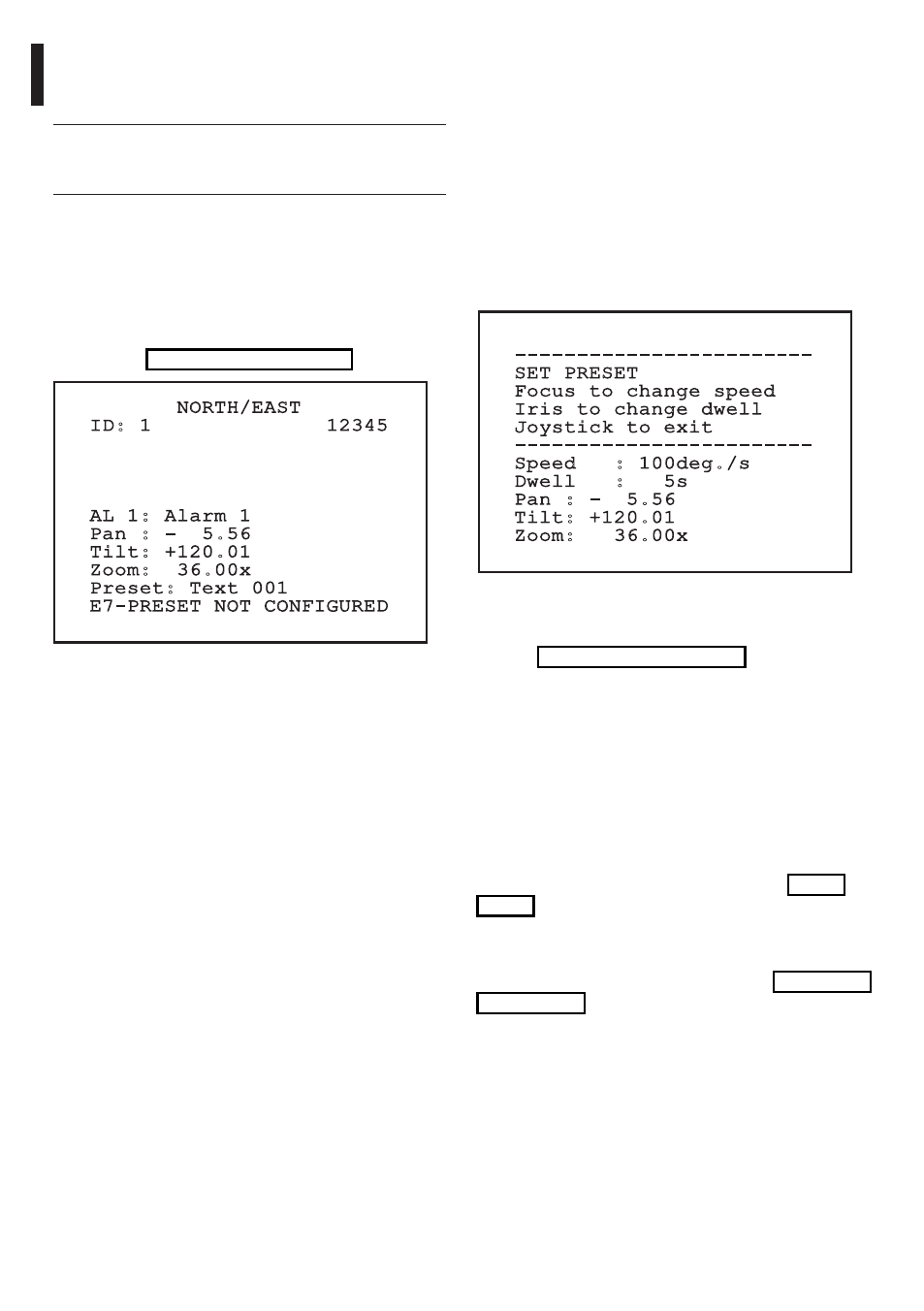

10.1 Visualizing the state of the
pan & tilt
During normal operation the pan & tilt displays
on screen the data organized as illustrated (user’s
choice). Visualization can be enabled or disabled as
described in "9.6.5 Display menu", page 37.
NORTH/EAST
ID: 1 12345
AL 1: Alarm 1
Pan : - 5.56
Tilt: +120.01
Zoom: 36.00x
Preset: Text 001
E7-PRESET NOT CONFIGURED
Fig. 94
NORTH/EAST: Name of the area where one is
currently located.
ID: 1: Receiver’s address;
12345: Complete list of active alarms;
AL 1: Alarm 1: Text regarding the last active alarm;
Pan: - 5.56/Tilt: +120.01/Zoom: 36.00x: Current
position of Pan, Tilt and Zoom;
Preset: Text 001: Name of selected active preset;
E7-PRESET NOT CONFIGURED: The following field
shows the errors found while the system was running
or the commands received via serial (visualization can
be enabled or disabled only for received commands).
