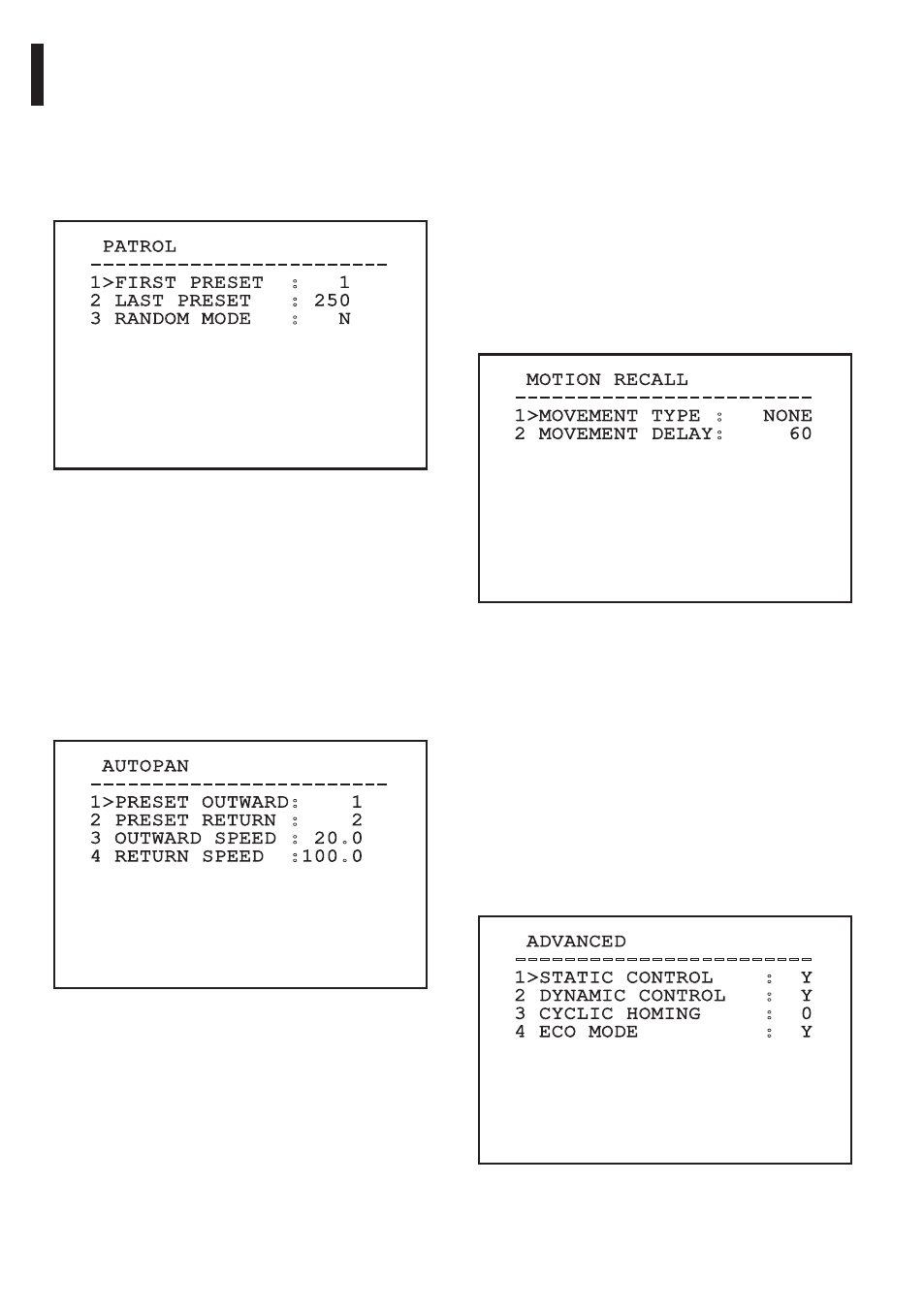

9.6.4.8 Motion Recall Menu
It is possibile to set the ULISSE COMPACT THERMAL so
that, after a given inactivity interval, it automatically
carries out the movement function set by the
operator.
From the menu it is possible to set the following
parameters:
01. Movement Type: Choice of type of movement
to be loaded (None, Home, Autopan, Patrol, Tour
1, Tour 2, Tour 3).
02. Movement Delay: The time (in seconds) that
needs to elapse from the state of inactivity of
the Joystick before loading the set movement.
MOTION RECALL
------------------------
1>MOVEMENT TYPE : NONE
2 MOVEMENT DELAY: 60
Fig. 74
9.6.4.9 Advanced Menu
01. Static Control: Enables control of the position
only when the pan & tilt is stopped.
02. Dynamic Control: Enables control of the
position only when the pan & tilt is moving.
03. Cyclic Homing: If other than zero, it sets a new
homing procedure after the specified number
of hours.
04. Economy Mode: Reduces the motor toque
when the pan & tilt is not moving. Do not enable
in presence of strong wind or vibrations.
ADVANCED
------------------------
1>STATIC CONTROL : Y
2 DYNAMIC CONTROL : Y
3 CYCLIC HOMING : 0
4 ECO MODE : Y
Fig. 75
9.6.4.6 Patrol Menu
01. First Preset: Sets the first preset of the Patrol
sequence.
02. Last Preset: Sets the last preset of the Patrol
sequence.
03. Random Mode: Enables random execution. The
sequence is re-calculated on a continuous basis.
PATROL
------------------------
1>FIRST PRESET : 1
2 LAST PRESET : 250
3 RANDOM MODE : N
Fig. 72
9.6.4.7 Autopan Menu
01. Preset Outward Movement: Sets the initial
position of the Autopan.
02. Preset Return Movement: Sets the final
position of the Autopan.
03. Outward Movement Speed: Sets the speed of
the outward movement of the Autopan.
04. Return Speed: Sets the speed of the return of
the Autopan.
AUTOPAN
------------------------
1>PRESET OUTWARD: 1
2 PRESET RETURN : 2
3 OUTWARD SPEED : 20.0
4 RETURN SPEED :100.0
Fig. 73
